The Worcester GB162V2 is part of a market leading range of energy-saving condensing wall mounted gas-fired boilers.

The GB162V2 is an extremely versatile and compact wall hung condensing boiler that can be installed on its own or as part of a multi-boiler ‘cascade’ system. The boiler is available with individual outputs of 45, 65, 80 and 100kW and outputs of up to 800kW can be achieved when multiple units are connected as part of a cascade installation.

This download contains Revit components for the Worcester GB162V2 Wall Mounted Gas-Fired Condensing Boiler (Cascade) from 50kW up to 800kW.

Cascade options include;

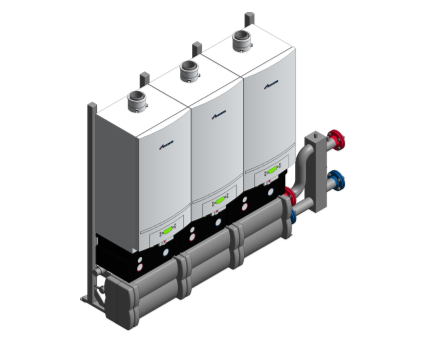

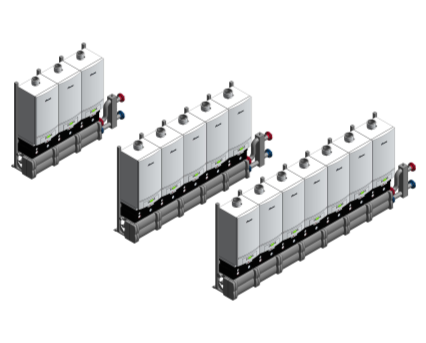

In Line

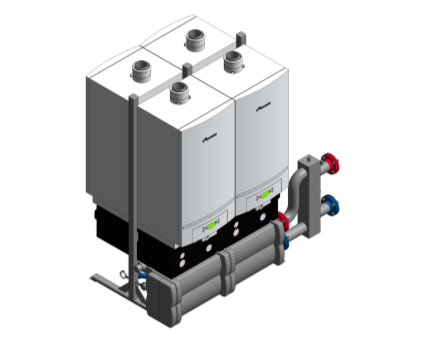

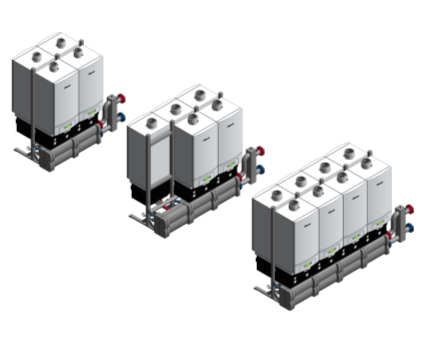

Back to Back

Components include user selectable features and guidance regarding additional flue adaptor, air intake basket and manufacturer recommend clearance zones.
