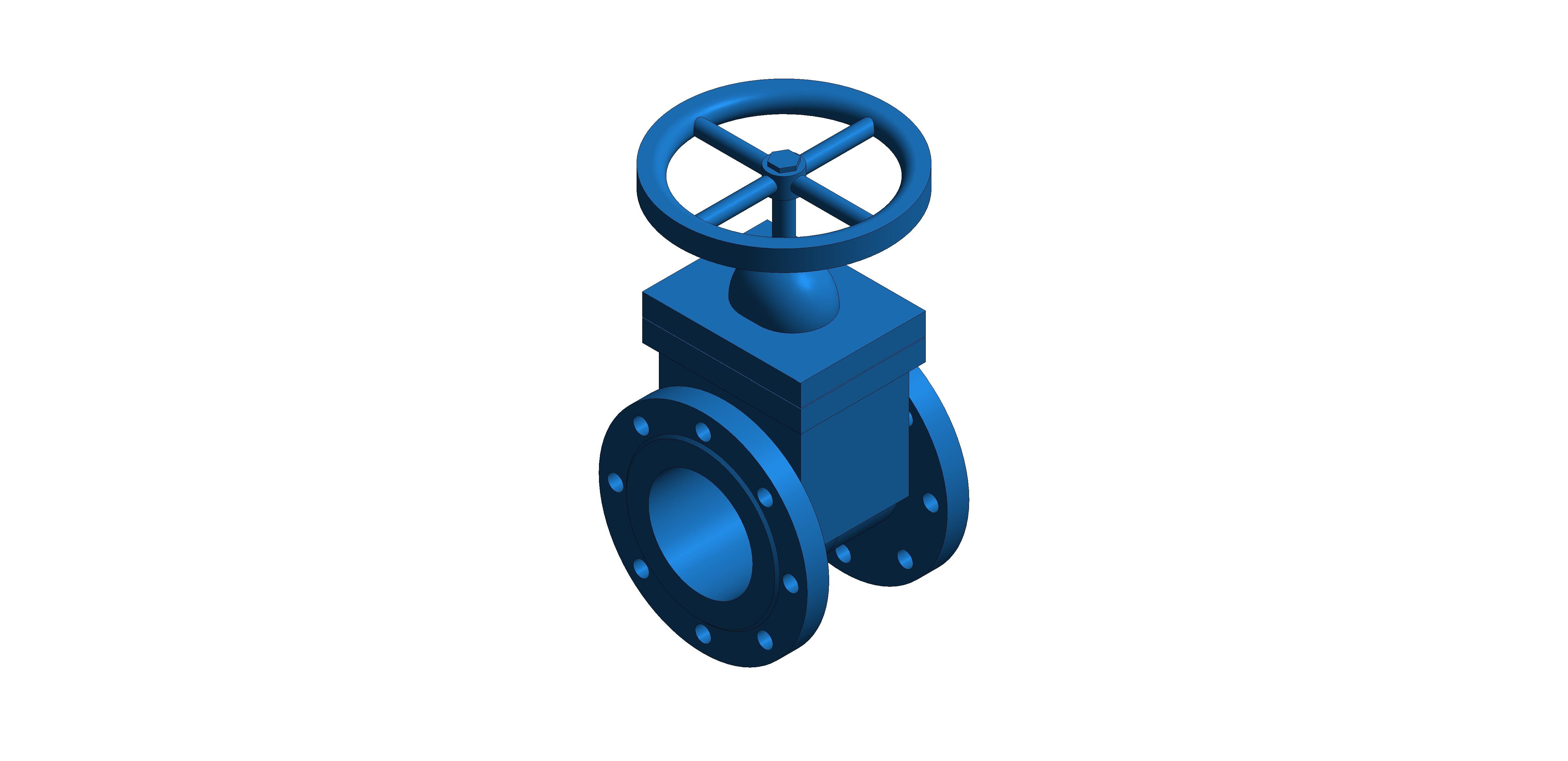

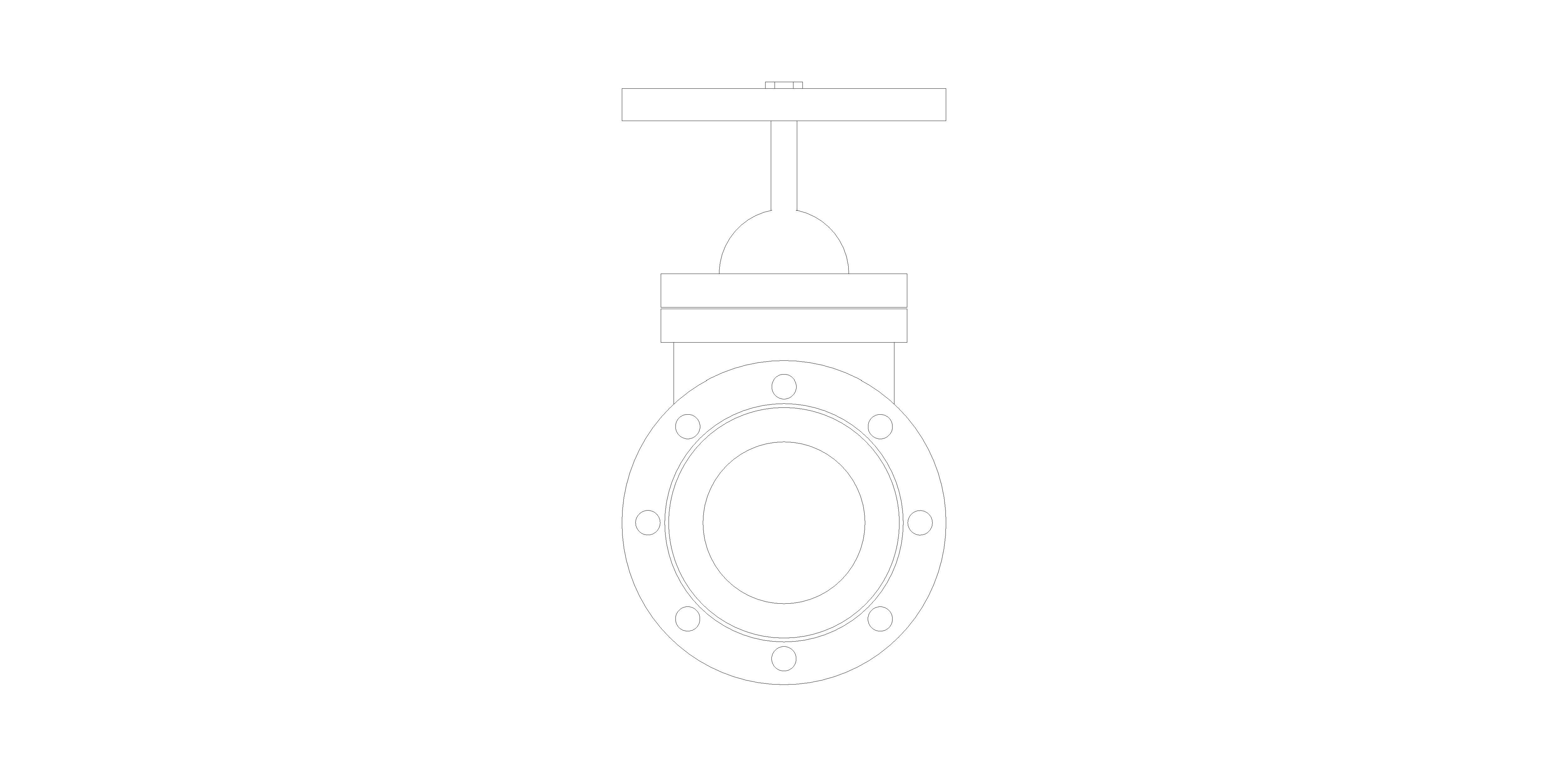

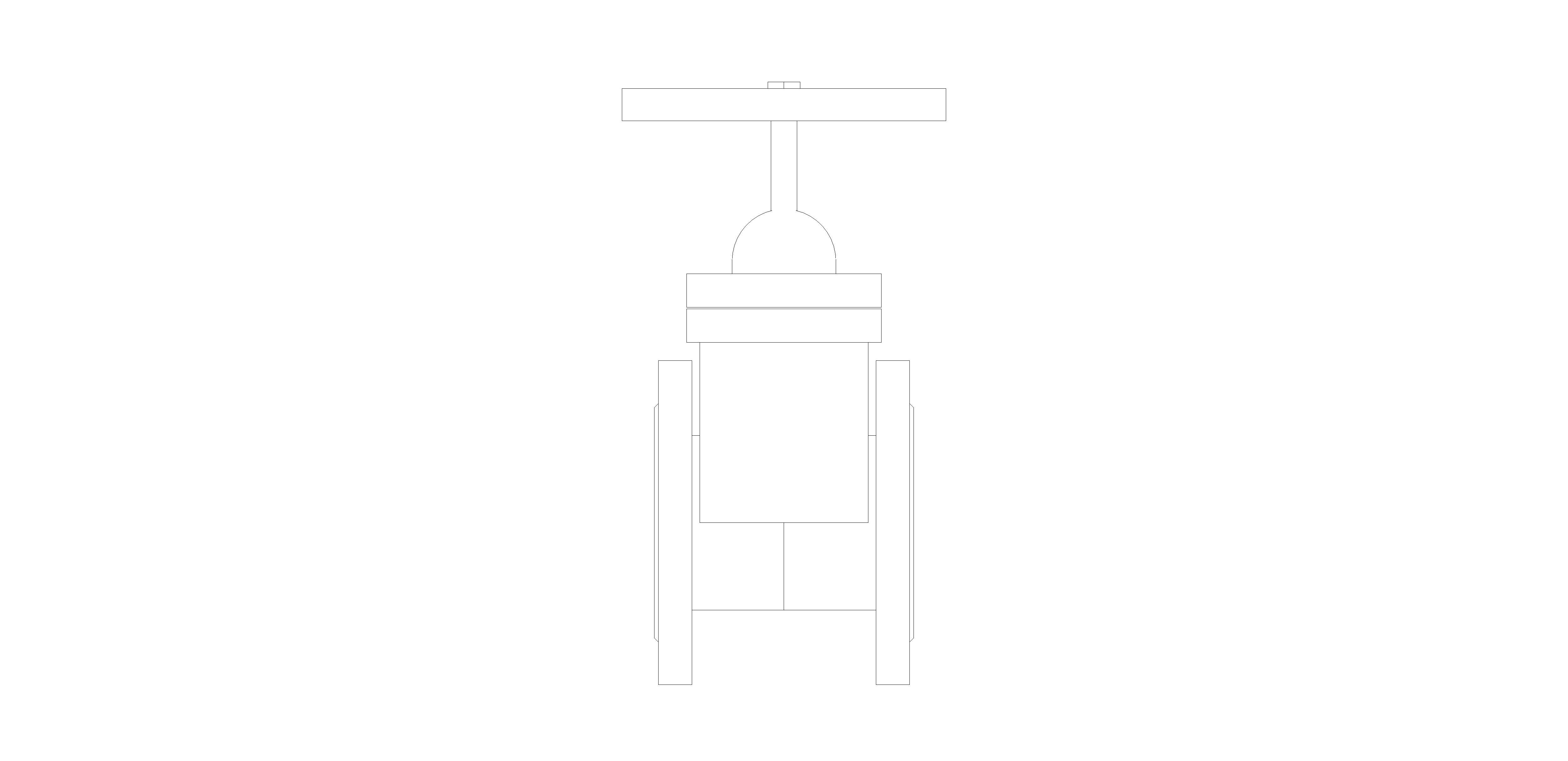

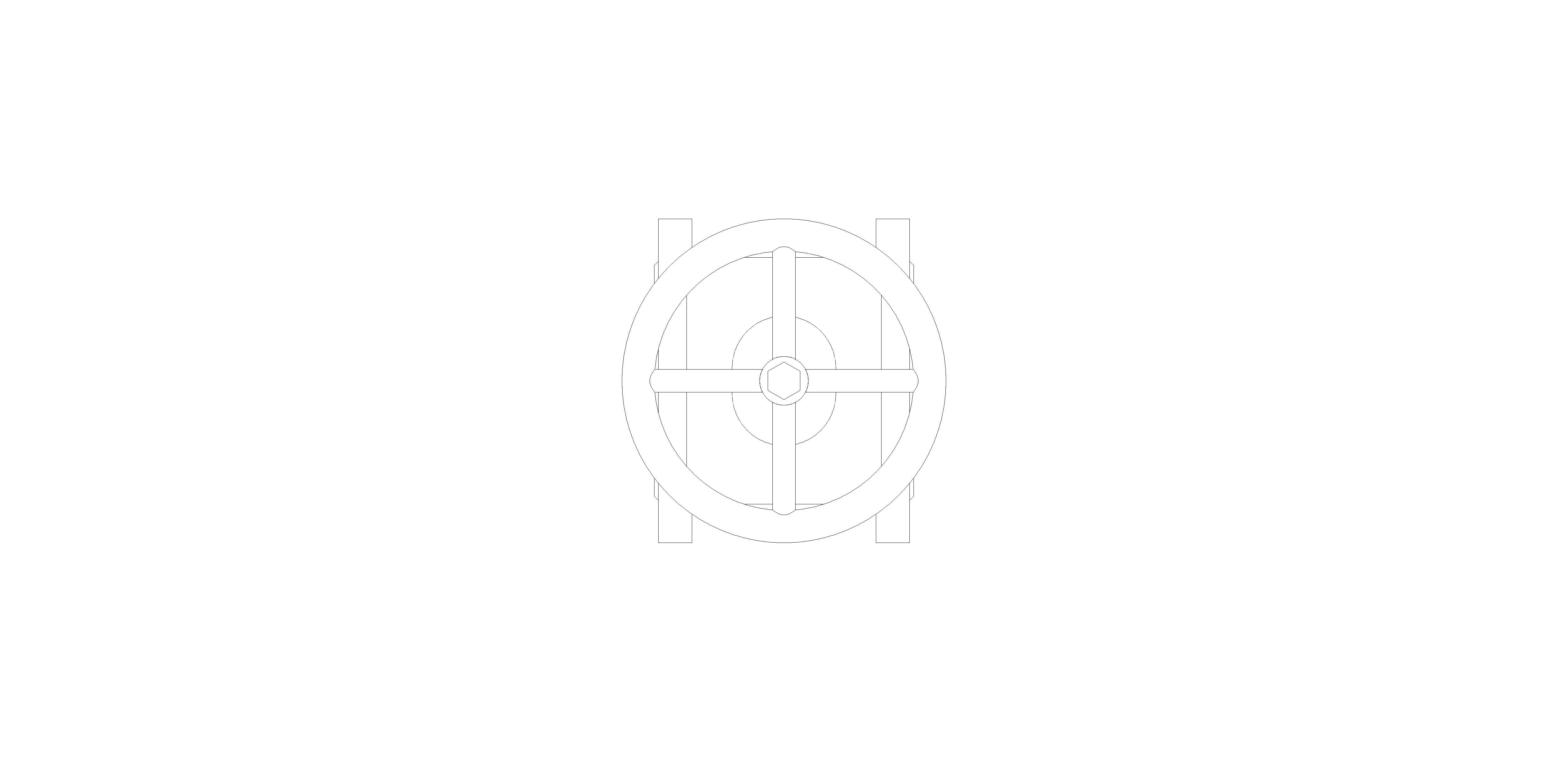

GATE402004 - Flanged Gate Valve

Description

Reliance Valves Flanged Ductile Iron Handwheel Operated Gate Valve offers reliable isolation of the water supply to equipment or machinery in plant rooms and other areas of a building without the need for draining the whole system. The valve design allows for direct mounting with PN16 flanges. The Reliance Valves Flanged Ductile Iron Handwheel Operated Gate Valve is ideal for heating, chilled water and hot or cold potable water systems.

• Robust ductile iron soft sealed gate valve with non rising stem
• Corrosion-resistant epoxy coating (min. 250 µm)
• Flat body, lengths according to EN558-1 series 14 (ex DIN3202 F4)
• Easy installation for direct mounting with PN16 flanges according to EN1092-2 (ex DIN2533)
• Suitable for heating, chilled water or hot and cold potable water systems from -10°C to +110°C (below 0°C only for water with added antifreeze fluids)
• Free of CE marking for DN≤300 (cat. according to Art. 4.3 Dir. 2014/68/EU)
