G930 Airbrick

Description

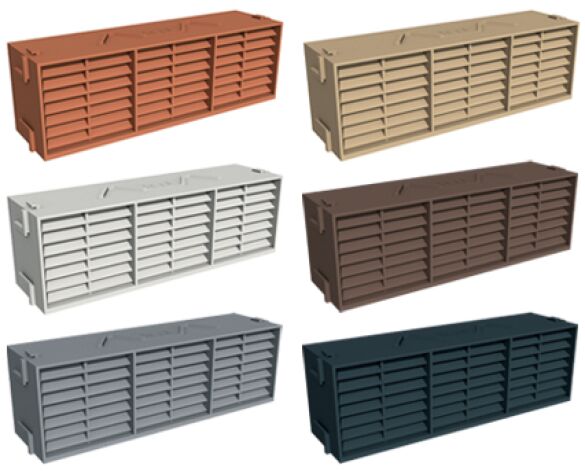

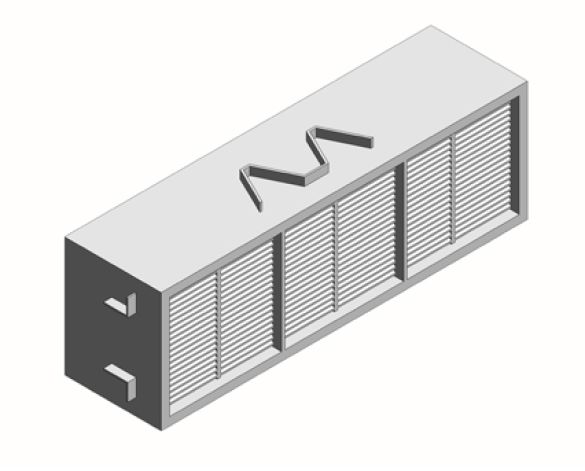

The Manthorpe G930 Airbrick has been designed to provide high levels of ventilation into cavity walls and underfloor voids. The 9" x 3" brick is stackable and can be joined together to create larger vent openings.

Provides 6,450mm² of airflow per 9″x3″ airbrick

The airbrick features a front mounted grill which consists of evenly spaced openings specifically sized to prohibit large insects gaining access but wide enough not to be blocked by debris, paint or water droplets.

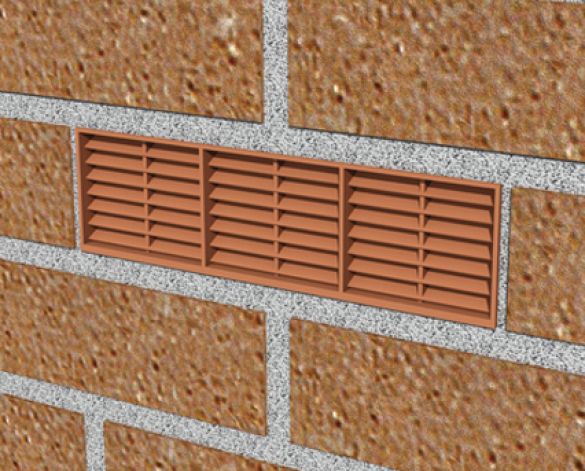

A mortar key around the edge of the airbrick ensures it can be securely fixed to the surrounding masonry.

Object Data

1 Revision

Last Updated

30/11/2015

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_BIMspec_GUID0
_created byJoe Shaw
_current revision1
_distributed bywww.bimstore.co.uk
Assembly CodeB2010
Asset TypeFixed
Cavity Wall Buildup120 mm
Classification NameUniclass2015
Classification ValueSs_65_40_33_56
Created Bybpsales@manthorpe.co.uk
Created OnOctober 2015
Depth58 mm
DescriptionThe Manthorpe G930 Airbrick has been designed to provide high levels of ventilation into cavity walls and under floor voids.
Documentation Certificateswww.manthorpe.co.uk/Building/Products/Through-Wall-Underfloor-Vents/Airbrick.html
Documentation Installation Guidespecifi.bimstore.co.uk/document/share/1067
Documentation Literaturespecifi.bimstore.co.uk/document/share/1067
Documentation Maintenancespecifi.bimstore.co.uk/document/share/1067
Documentation Technicalspecifi.bimstore.co.uk/document/share/1067
Duct Size70 mm
Duration UnitYears
Expected Life0
Extendable VentYes
External Wall Buildup100 mm
Inner Seperator2 mm
KeynoteF30/17
ManufacturerManthorpe Building Products
ModelG930 Airbrick
NBS Object NameNatural ventilation systems
NBS ReferenceSs_65_40_33_56
Slab Cover200 mm
Slab offset0 mm
Type CommentsG930
Type NameG930
URLwww.manthorpe.co.uk
Vent Width440 mm
Warranty Duration UnitYears
