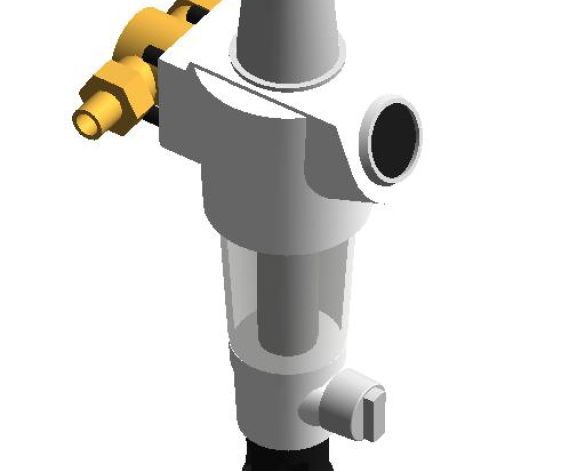

Filter Combination (FK74CS)

by Resideo: Smart Home Products and Systems

Download Add to collection

Description

Resideo offers top-of-the-line home automation solutions to set up your best smart home system, including smart thermostats, security cameras and more.

This product listing is to download the following:

FK74CS-LFAA - Horizontal / Vertical
FK74CS-AA-AC-AD - Horizontal / Vertical
FKN74CS-1LFA
FKN74CS-2LFA

Click here to visit Resideo for more info!

Object Data

1 Revision

Last Updated

16/11/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

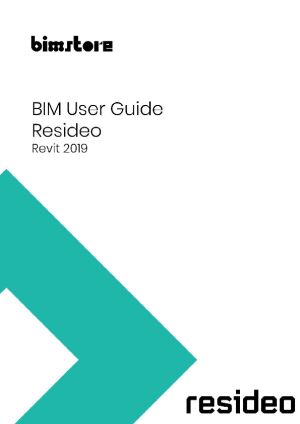

Object User Guide

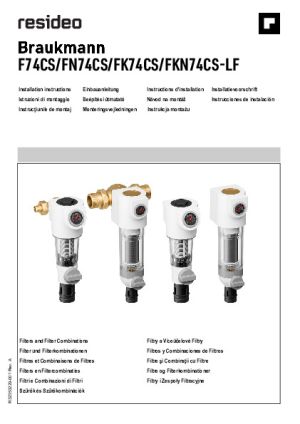

Installation Guide

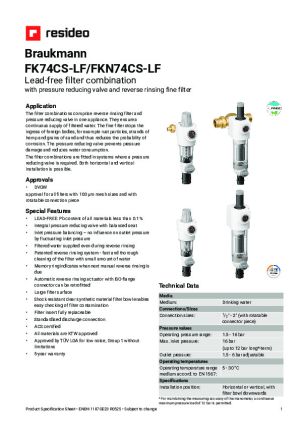

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/filter-combination-fk74cs-lfaa/document/object-user-guide
1"No
1-1/2"No
1-1/4"No
1/2"Yes
2"No
3/4"No
a150.0 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b197.4 mm
BIM Object NameResideo_FilterCombination_FK74CS-LFAA
Body Offset25.0 mm
c210.9 mm
Classification NameUniclass2015
Classification ValuePr_60_55_97_41
Code Performancen/a
Colorn/a
Connection Dia15.0 mm
Connection Radius7.5 mm
Connection Size1/2 inch
Constituentsn/a
Created Bywww.resideo.com/gb/en/contact-us/
Created On2022-07-04 T09:00:00
Default Elevation0.0 mm
DescriptionREVERSE RINSING FILTER
Dischage Flow Rate1.3 l/s
Discharge Offset Hor91.8 mm
Discharge Offset Vert298.1 mm
DN Size15.0 mm
Documentation Certificateswww.bimstore.co/products/filter-combination-fk74cs-lfaa/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/filter-combination-fk74cs-lfaa/document/installation-guide
Documentation Literaturewww.bimstore.co/products/filter-combination-fk74cs-lfaa/document/product-literature
Documentation Maintenancewww.bimstore.co/products/filter-combination-fk74cs-lfaa/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/filter-combination-fk74cs-lfaa/document/technical-data-sheet
Duration UnitYear
Expected Life0
Featuresn/a
Filter Body TypeFKN74CS-1LFA
Filter BowlKF11SB-1A (Transparent filter bowl)
Filter Connector TypeDA74CS-1/2LFA
Filter InsertAF74-1A
Filter Mesh Cleaning MethodReverse rinsing with filtered water (the patented Resideo system)
Filter Mesh MaterialStainless steel
Filter Mesh SizeFilter mesh size 95/110 micron
Finishn/a
Flow Capacity5.3 CMH
Graden/a
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.USERDEFINED
KeynoteS
Large BodyNo
Lead FreeYes
ManufacturerResideo
Manufacturer NameResideo
MaterialSynthetic material
Maximum Inlet Pressure16.0 bar
Media Temperature5 ... 30 °С
Medium TypeDrinking water
Minimum Inlet Pressure1.5 bar
ModelFK74CS-1/2LFAA
Model NumberFK74CS-1/2LFAA
Model ReferenceREVERSE RINSING FILTER
NBS DescriptionInline filter units
NBS Noten/a
NBS Object NameResideo - Inline filter units
NBS Office Master Tagn/a
NBS Reference90-15-95/375
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
Pressure Reducing InsertD06FR-1A (Valve insert for pressure range: 1.5 ... 16 bar)
Primary MaterialResideo - Plastic - White
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Required Discharge Connector DiameterDN50/70
Secondary MaterialResideo - Plastic - Light Grey
Shapen/a
Sizen/a
Small BodyYes
Spare Partsn/a
Tertiary MaterialResideo - Plastic - Black
Type CommentsREVERSE RINSING FILTER
Type NameFK74CS-1/2LFAA
URLwww.resideo.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborwww.resideo.com/gb/en/contact-us/
Warranty Guarantor Partswww.resideo.com/gb/en/contact-us/

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
