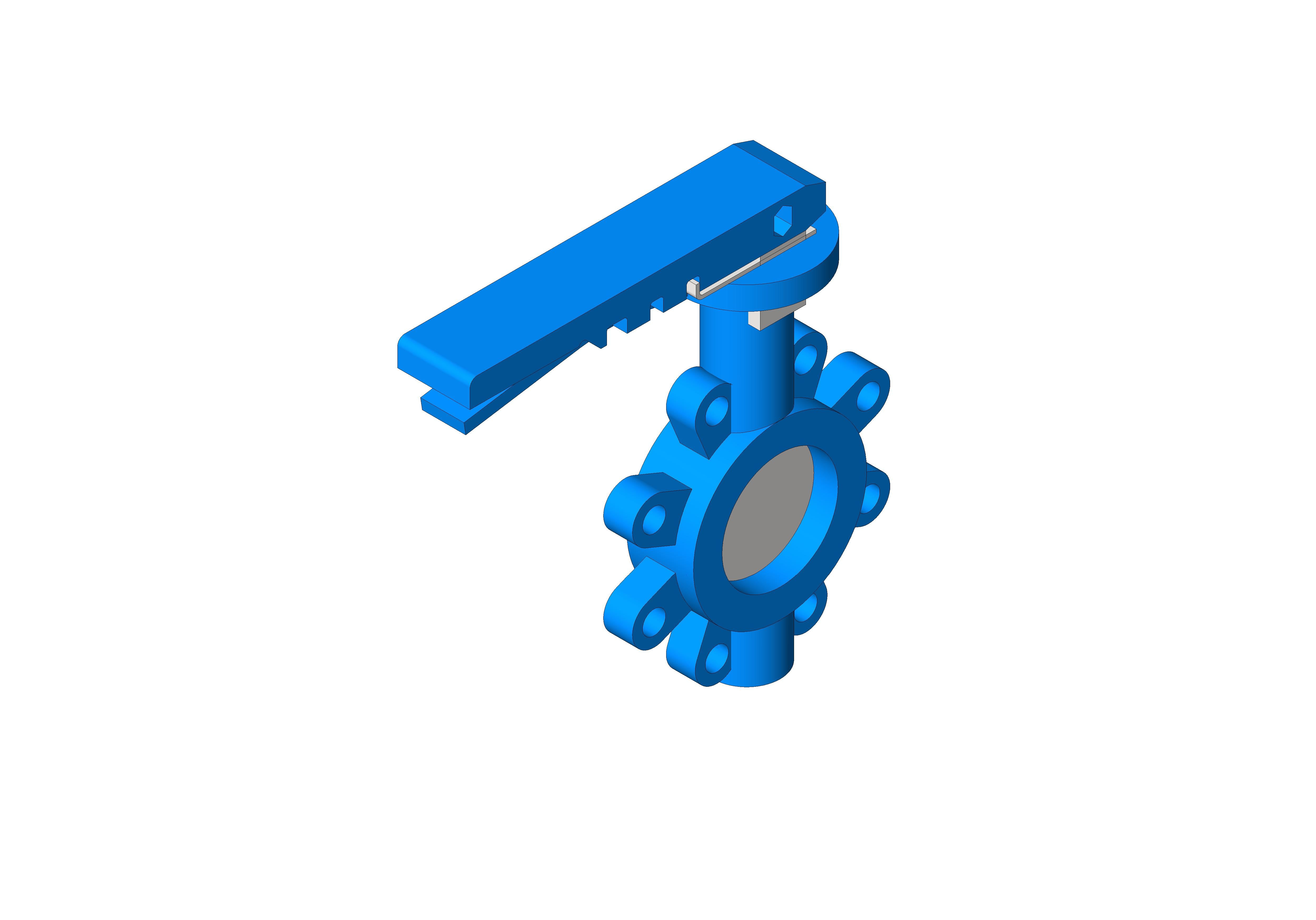

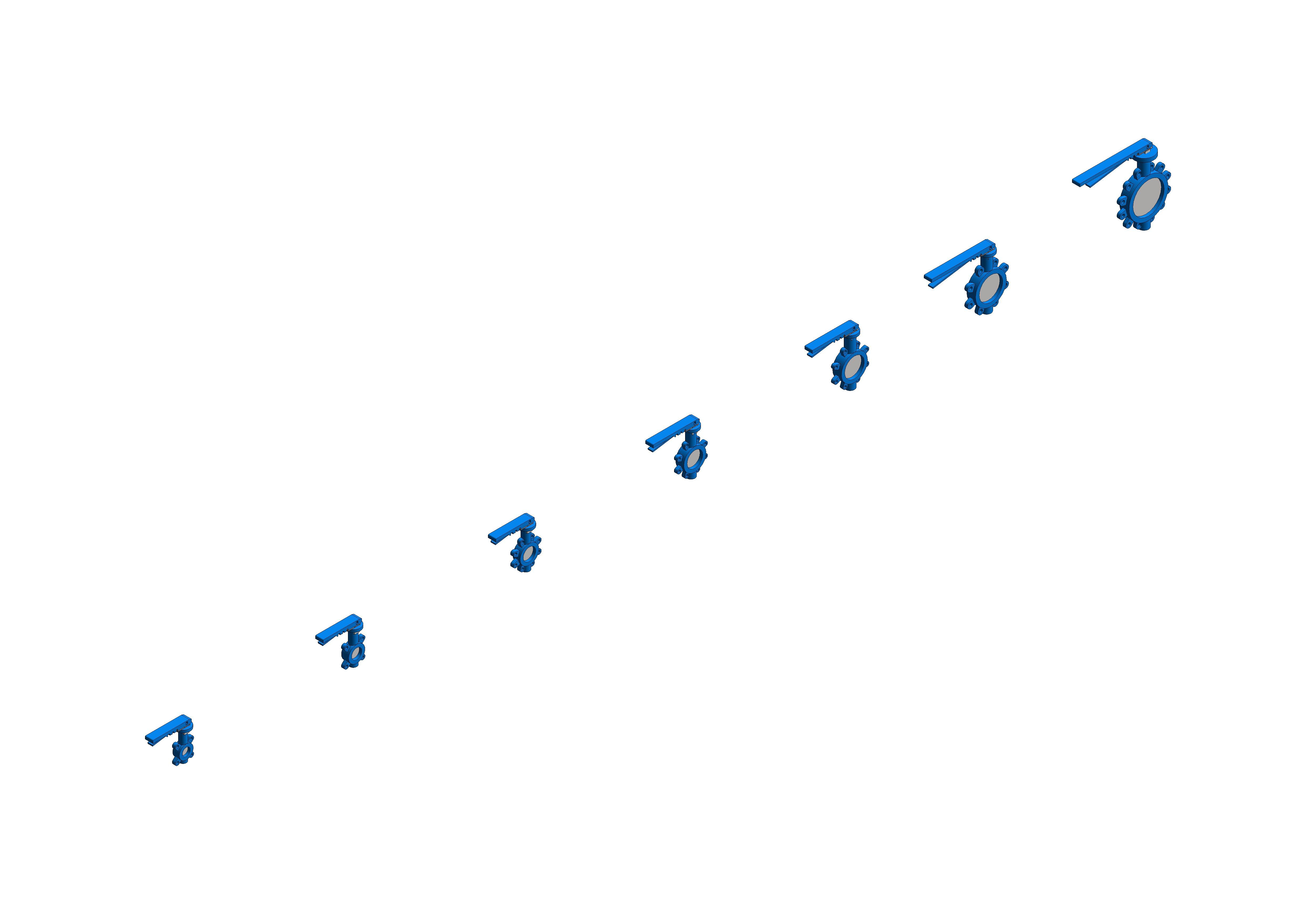

Fig 4980 - Butterfly Valve - Fully Lugged Lever Operated

by Hattersley

Download Add to collection

Description

FIG4980

Suitable for dead-end service without the need for backing flanges at PN16 rated pressure

Stainless steel SS316 disc for improved strength and a wide range of applications

Bonded Liner for ease of installation supporting modular construction

Robust ductile iron valve body for long service life

The anti-blow out stem design provides a safe and secure operation

Fully bonded epoxy paint system for superior corrosion resistance

Suitable for applications where Level 3 C3 (Medium) corrosion protection is required

Maintenance free valve design, reducing downtime

Suitable for wide temperature range -10°C to 120°C

420 Stainless Steel Shafts for superior strength

Object Data

1 Revision

Last Updated

13/05/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

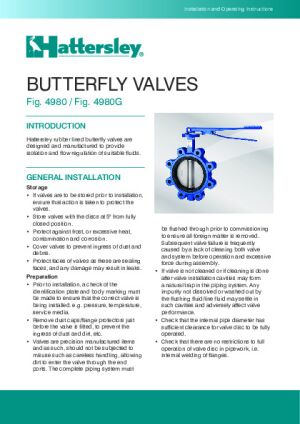

Installation Guide

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorSM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
a22.50 °
Accessibility Performancen/a
Aluminium Bronze DiscNo
Angle 122.50 °
Angle 267.50 °
Angle 367.50 °
Assembly CodeD20
Asset TypeFixed
BIM Object NameHattersley_ButterflyValve_FullyLuggedLeverOperated_Fig4980
BodyDuctile Iron (EN-GJS-400-15)
BushingPTFE
c142.20 mm
Classification NameUniclass 2015
Classification ValuePr_65_54_95_08
Code Performancen/a
Colorn/a
Connection Size100.00 mm
Connection Size Radius50.00 mm
Constituentsn/a
Created Byenquiries@Hattersley.com
Created On2026-03-31T:09:00:00
d16.00 mm
D15.77 mm
Default Elevation0.00 mm
DescriptionDN100
DiscDuctile Iron (EN-GJS-400-15) Epoxy coated
Disc OptionPlease choose one option from the three below:
DN100
Ductile Iron DiscYes
Duration UnitYear
E104.40 mm
End ConnectionFully Lugged
EPDM LinerYes
Expected Life0
Featuresn/a
Finishn/a
Graden/a
H32.00 mm
H1106.00 mm
H2179.00 mm
Handle Length265.00 mm
Handle Width50.00 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.CHECK
K90.00 mm
K Coefficient694
KeynoteS
L52.00 mm
L1265.00 mm
Lever And ScrewMalleable Iron ASTM Gr.32510
LinerEPDM
Liner OptionPlease choose one option from the two below:
Loss MethodK Coefficient
Lug Hole Offset90.00 mm
Lug Hole Radius8.00 mm
Lug Inner Radius71.10 mm
Lug Outer Radius14.00 mm
ManufacturerHattersley
Manufacturer NameHattersley
Materialn/a
ModelFig 4980 - Fully-Lugged Lever Operated Butterfly Valves - Ductile Iron
Model NumberFig 4980
Model ReferenceFig 4980 - Fully-Lugged Lever Operated Butterfly Valves - Ductile Iron
N1-M16.00 mm
NBS DescriptionButterfly valves
NBS Noten/a
NBS Object NameHattersley - Butterfly valves
NBS Office Master Tagn/a
NBS Reference90-10-90/332
Nitrile LinerNo
Nominal Depth0.00 mm
Nominal Height0.00 mm
Nominal Length0.00 mm
Number Of Lugs8
O-RingNitrile Rubber
OperatorTrigger Lever
OtherBare shaft options available (Fig No. F648B / F658B / F644B / F654B / F678B / F674B). Please contact us for bare shaft top works details.
P180.00 mm
Pressure RatingPN16
Production Year2026
Referenced Standardn/a
Replacement Costn/a
S11.00 mm
ShaftStainless Steel 420 (ASTM A276 420)
Shapen/a
SizeDN100
Spare Partsn/a
Specification NotesEnd connections compatible with BS EN1092-2 PN16 flanges.
Stainless Steel DiscNo
Stop PlateMild Steel (GB700 Q235) Chromium Plated
Symbol Length60.00 mm
Taper PinStainless Steel 431 (ASTM A276 431)
Temperature Rating-10 to 120°C
Test Pressures(Hydrostatic) SHELL: 24 bar; SEAT: 17.6 bar.
Type CommentsDN100
Type NameDN100
URLwww.Hattersley.com/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@Hattersley.com
Warranty Guarantor Partsenquiries@Hattersley.com
