Ecovector® High Fan Convectors

  • Product: Ecovector High Fan Convectors
  • Product: Ecovector High Fan Convectors
  • Product: Ecovector High Fan Convectors
  • Product: Ecovector High Fan Convectors
SketchfabSketchfab
  • Views 350
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

EN ISO 23386

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

27/05/2020

Available for:
  • Logo: Autodesk Revit

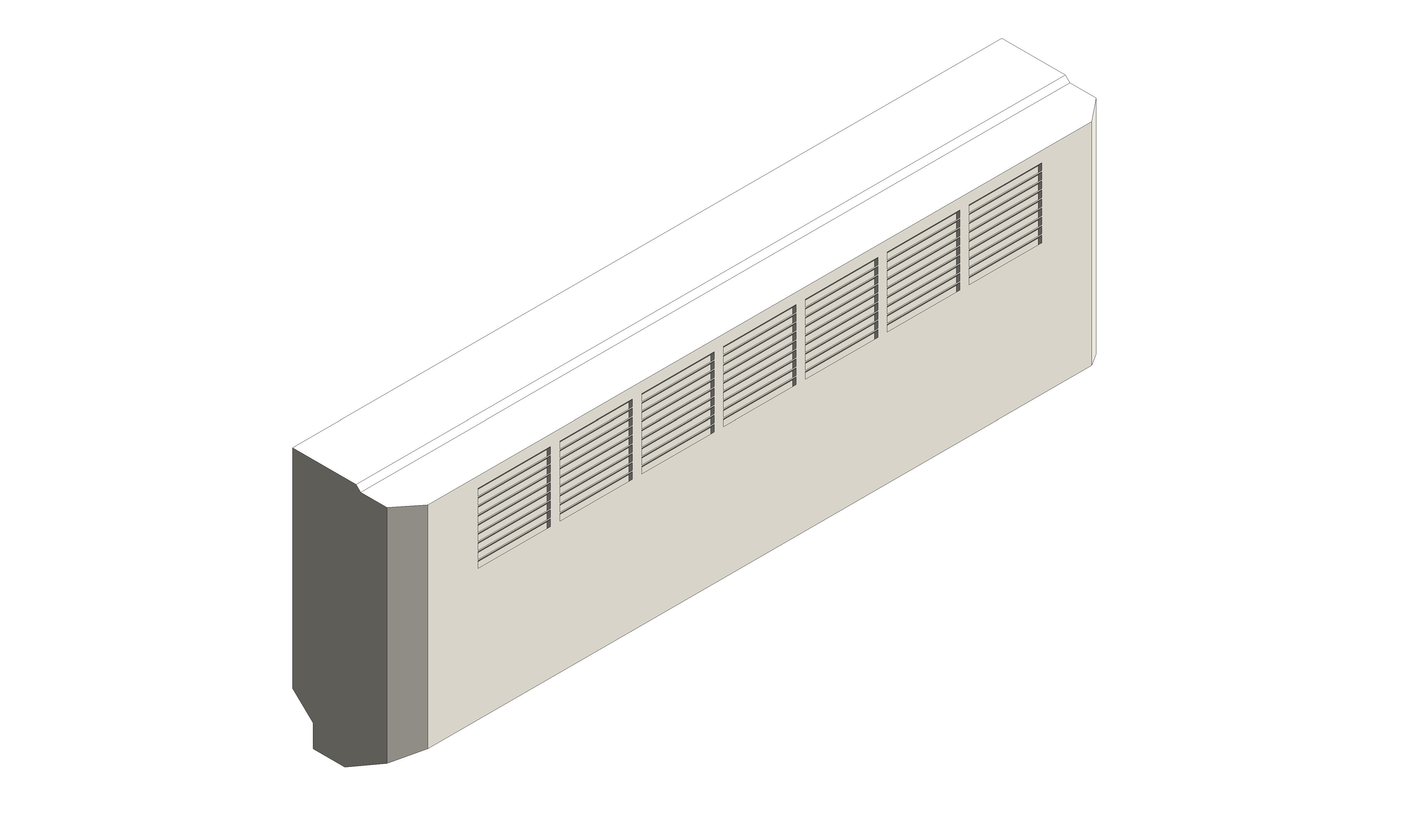

The Ecovector High level fan assisted heaters (hydronic) provide effective and dependable heating for both small and large commercial areas, fitted unobtrusively above head height

  • They work particularly well in shops and libraries, where lower wall space is limited
  • Compatible with most types of wet central heating systems, functioning equally efficiently with conventional boilers, biomass technology or ground or air source heat pumps
  • Supplied as standard in white but casing can be supplied in any colour
  • Ecovector® Low fan convectors provide warmth from the floor upwards and are more energy efficient and effective than radiators
  • Ecovector® Vertical is ideal for those hard to heat places, such as reception areas and alcoves

Motor
AC only

Finish
Front casing: zinc-coated steel.
Polyester powder-coated RAL 9010
Side panels: polymer eggshell white

Installation
Maximum installation height 2.1m (6’11”) to underside
No top or side clearance required
Unit must be earthed (except model 1000-12V)
Suitable for two-pipe central heating systems
Patress box not supplied for transformer (model 1000-12V)

Commissioning
Check water is hot enough to activate the low temperature cut-outthermostat. The inclusion of an automatic air vent at the highest point is recommended to avoid possible air locks

Controls
Two rocker switches – normal/off/boost, heating/fan-only
Low temperature cut out thermostat, set to energise fan at approximately 35°C

Read more
