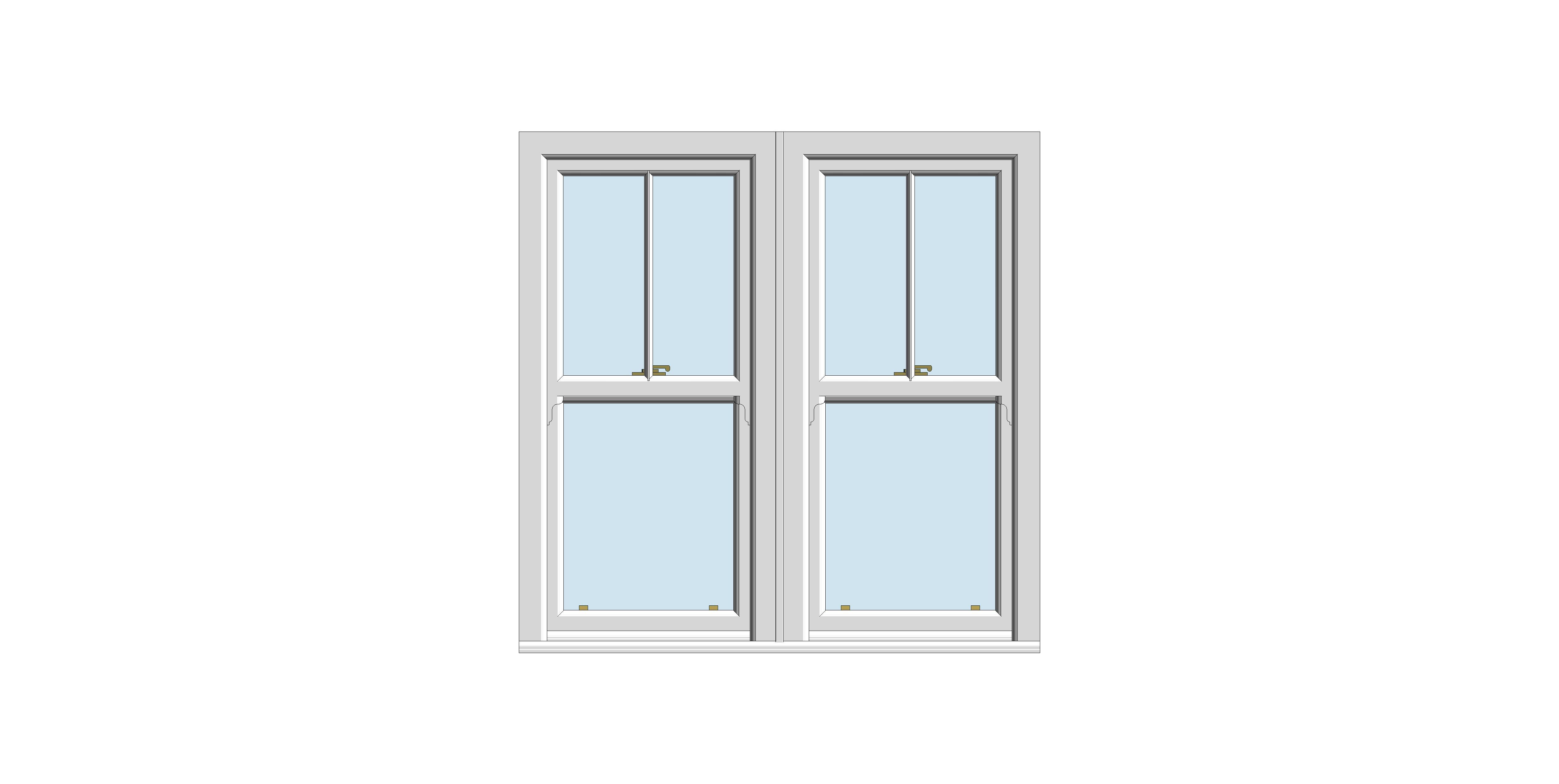

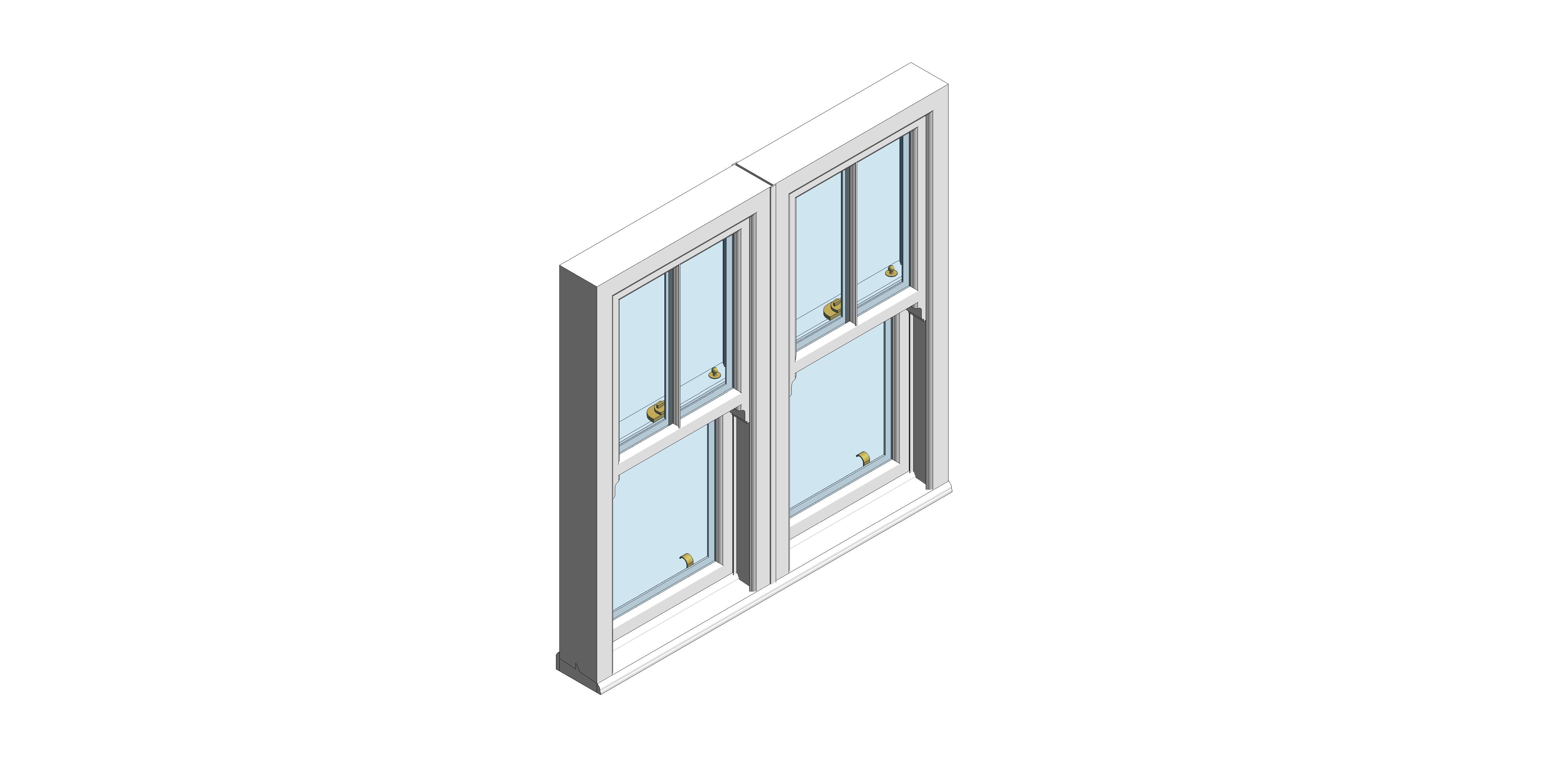

ECOSlide® PVC-U - Standard Sliding Sash Window – Coupled 2

Description

ECOSlide® PVC-U - Standard Sliding Sash Window – Coupled 2

PVC-U Sash Windows: The Perfect Modern Alternative to Timber Sash Windows. Every ECOSlide® window is manufactured bespoke to meet virtually any personal requirements; with unlimited colour options, shaped frames, custom glass and our own exclusive range of hardware in a range of finishes.

ECOSlide® sash windows are the perfect solution for new and replacement window projects, or traditional properties looking for cost-effective alternative to original timber windows with outstanding modern performance.

Object Data

1 Revision

Last Updated

10/09/2025

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/d6ddf2a7-d3a8-46e4-835e-bc2298d9dfbc/document/object-user-guide
Accessibility Performancen/a
Analytic Construction<None>
Assembly CodeB2020110
Asset TypeFixed
BIM Object NameVictorianSliders_SlidingSashCoupledTwoWindow
Cill Height38 mm
Cill Tolerance0 mm
Classification NameUniclass2015
Classification ValuePr_30_59_98_92
Code Performancen/a
ColorStandard RAL
Constituentsn/a
Created Bysales@victoriansliders.co.uk
Created On2025-08-20T09:00:00
Default Cill Height800 mm
Define Thermal Properties bySchematic Type
DescriptionPVC-U Sash Windows: The Perfect Modern Alternative to Timber Sash Windows. Every ECOSlide® window is manufactured bespoke to meet virtually any personal requirements; with unlimited colour options, shaped frames, custom glass and our own exclusive range of hardware in a range of finishes.
Documentation Certificateswww.bimstore.co/products/d6ddf2a7-d3a8-46e4-835e-bc2298d9dfbc/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d6ddf2a7-d3a8-46e4-835e-bc2298d9dfbc/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d6ddf2a7-d3a8-46e4-835e-bc2298d9dfbc/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d6ddf2a7-d3a8-46e4-835e-bc2298d9dfbc/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d6ddf2a7-d3a8-46e4-835e-bc2298d9dfbc/document/technical-data-sheet
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Frame Depth128 mm
Frame Width65 mm
Glass Offset_EXT29 mm
Glass Thickness4 mm
Glazing Thickness24 mm
Graden/a
Head Tolerance0 mm
Height1200 mm
Ifc Export AsIfcWindow
Ifc Export TypeIfcWindowTypeEnum.WINDOW
Internal Reveal Thickness25 mm
Jamb Tolerance0 mm
KeynoteL10
ManufacturerVictorian Sliders
Manufacturer NameVictorian Sliders
MaterialPVC-U
Maximum Height3000 mm
Maximum Width3217 mm
Minimum Height740 mm
Minimum Width757 mm
ModelSliding Sash Coupled Two Window
Model NumberSliding Sash Coupled Two Window
Model ReferenceSliding Sash Coupled Two Window
NBS DescriptionUnplasticized polyvinyl chloride (PVC-U) window units
NBS Noten/a
NBS Object NameVictorian Sliders - Unplasticized polyvinyl chloride (PVC-U) window units
NBS Office Master Tagn/a
NBS Reference45-25-99/330
Nominal Depth128 mm
Nominal Height1200 mm
Nominal Length1200 mm
Production Year2025
Referenced Standardn/a
Replacement Costn/a
Rough Height1200 mm
Rough Width1200 mm
ShapeRectangle
Size1200mm(w) x 1200mm(h)
Spare Partsn/a
Type CommentsSliding Sash Coupled Two Window
Type NameSliding Sash Coupled Two Window
URLwww.victoriansliders.co.uk/
Wall ClosureBy host
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@victoriansliders.co.uk
Warranty Guarantor Partssales@victoriansliders.co.uk
Width1200 mm

Bimstore on 14 June 2026

Be the first to write a comment...

ECOSlide® PVC-U - Standard Sliding Sash Window – Coupled 2

Description

Object Data

Last Updated

Available Software

BS1192:4

BSB

EPD

Accompanying literature

Object User Guide

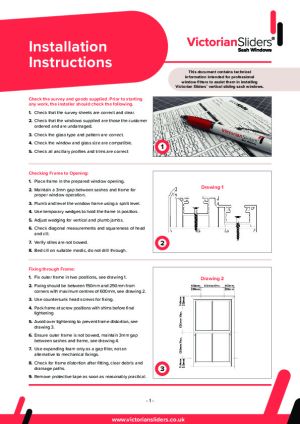

Installation Guide
