EBB Design

  • Views 344
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

CEN442

Compliant

COBie

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

11/03/2020

Available for:
  • Logo: Autodesk Revit

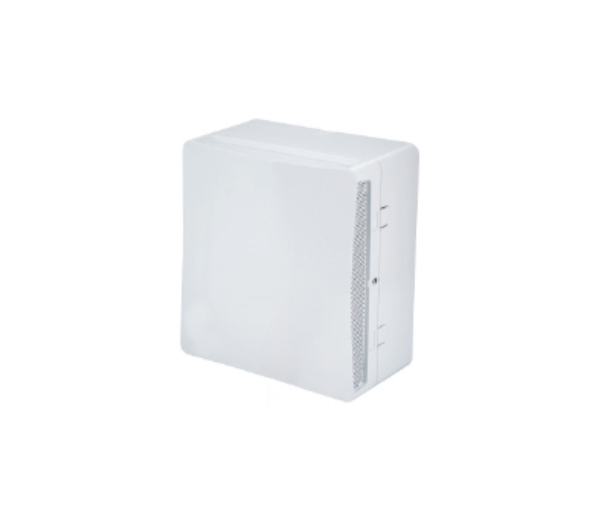

The EBB Design extractor fan is suitable for WC, bathroom and kitchen applications where higher system resistance pressures are encountered. The fan incorporates a forward curved centrifugal impeller with single phase motor 230V-50Hz and Class || insulation.Maximum operating temperature 40 °C.

Key Features

  • Humidity Sensor
  • Multi Speed
  • Energy Saving
  • Pullcord
  • IP44 Rated
  • 2 Year Warranty (High quality products for peace of mind, saving time, money and hassle.)

Automatic Backdraught Shutter

EB Design is fitted with an automatic back draught shutter to prevent air entry and limit heat leakage when the extractor is not operating.

Forward Curved Centrifugal Impeller

To deliver high performance with a minimum noise level against high static pressure system resistance.

Centrifugal fans extract air at right angles to the intake of the fan, and spin the air outwards to the outlet by deflection and centrifugal force. The impeller rotates, causing air to enter the fan near the shaft and move perpendicularly from the shaft to the opening in the fan casing.

This allows the fan to produce more pressure for a given air volume, and is thus able to 'push' the extracted air along much longer duct runs.

Centrifugal fans are often seen in rooms which do not have exterior walls. Such rooms do not have windows or any natural ventilation and these circumstances usually require a long duct run to reach the outside of the building.

Humidity Sensor

Internal humidity sensor which automatically switches on the unit when the relative humidity rises above the selected set level; pullcord or remote switch.

Adjustable Run-On Timer

The 'run-on' time is adjustable and can be set between 5-30 minutes.

Multi Speed

The EBB 175 Design comes in both 1 and 2 speed versions. The 250 has a 3 speed motor.

Pullcord

Supplied with pullcord override.

Product Code

Product Code

EBBDES-175S
EBBDES-175T
EBBDES-175HM
EBBDES-175DV
EBBDES-250HT
