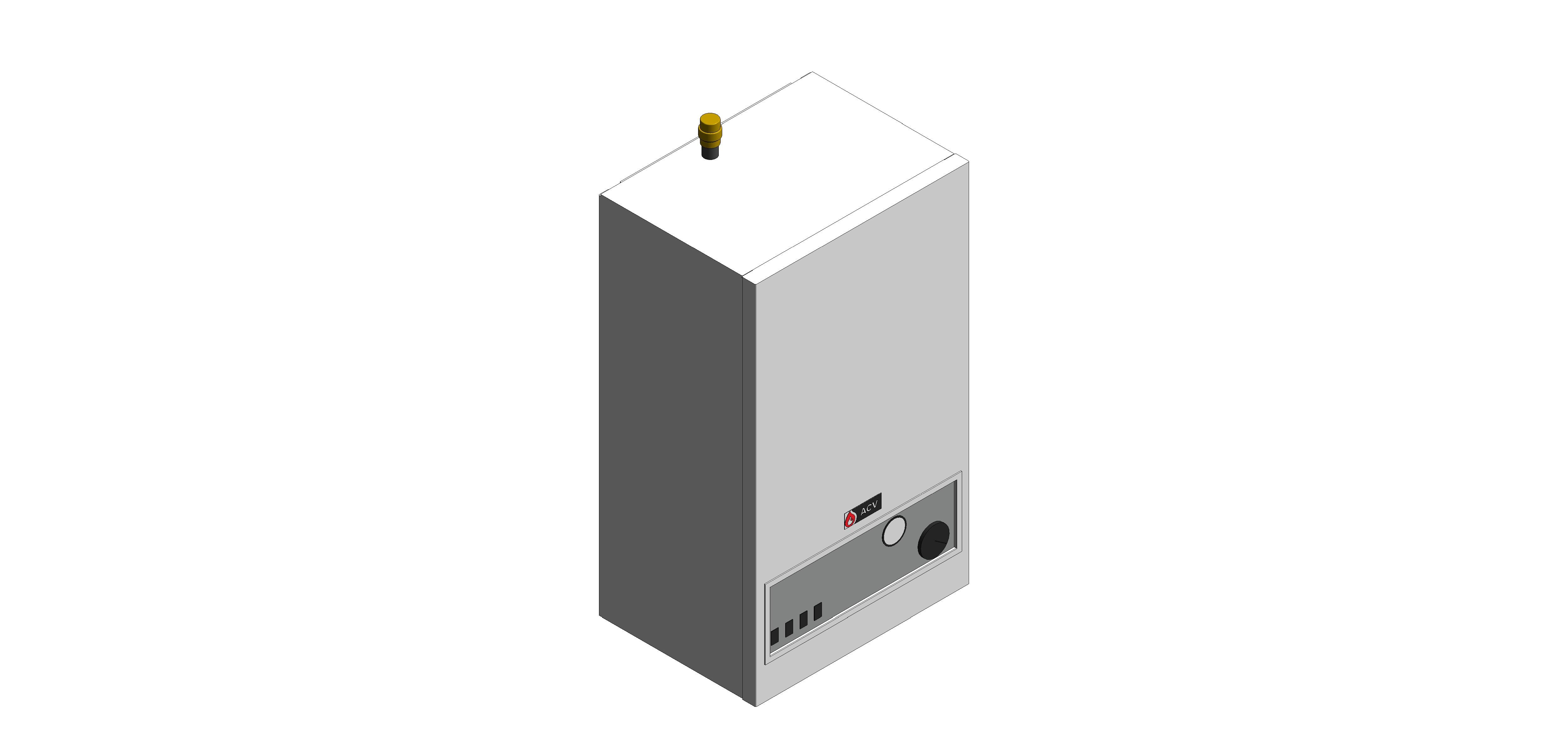

E-Tech W electric boiler

by ACV

Download Add to collection

Description

Wall hung electric system boiler.

09-36kW
Simple installation anywhere in the building due to no flues needed and quiet operation
Can provide dual temperature outputs for different circuits such as radiators and underfloor heating*
Protection from electrical surges due to built-in 3 amp MCB
Integrated circulating pump for speed of installation
An economical alternative to LPG and Oil for off-grid locations
Available in 3 power output levels to match your demand

Click here to visit ACV for more information.

Object Data

1 Revision

Last Updated

14/01/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

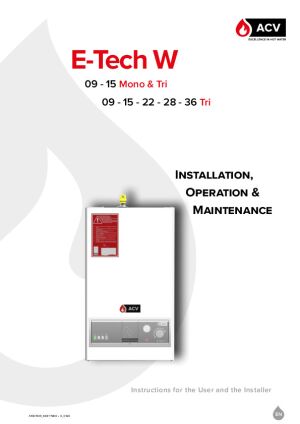

Installation Guide

Product Literature

Product Data Sheet

Object metadata

_Authoruk.sales@acvuk.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/82718f65-173e-44cc-b0f6-b216cae06e30/document/object-user-guide
Accessibility Performancen/a
Article DescriptionWall mounted electric sealed system boiler. An economical alternative to LPG and Oil
Article TypeE-Tech W 09 Mono
Assembly CodeD3020100
Asset TypeFixed
BIM Object NameACV_Boiler_ETechW_(09-36)
BlackColor RGB 040-040-040
ClassIP43
Classification NameUniclass 2015
Classification ValuePr_60_60_08_27
Code Performancen/a
ColorGrey
Constituentsn/a
Created Byuk.sales@acvuk.com
Created On2026-01-13T09:00:00
Current36 A
Dark GreyColor RGB 073-073-073
Dark YellowColor RGB 165-132-000
Default Elevation0.00 mm
Depth332.00 mm
DescriptionWall mounted electric sealed system boiler. An economical alternative to LPG and Oil
Documentation Certificateswww.bimstore.co/products/82718f65-173e-44cc-b0f6-b216cae06e30/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/82718f65-173e-44cc-b0f6-b216cae06e30/document/installation-guide
Documentation Literaturewww.bimstore.co/products/82718f65-173e-44cc-b0f6-b216cae06e30/document/product-literature
Documentation Maintenancewww.bimstore.co/products/82718f65-173e-44cc-b0f6-b216cae06e30/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/82718f65-173e-44cc-b0f6-b216cae06e30/document/technical-data-sheet
Duration UnitYears
ETIM Article ClassEC010082
Expected Life0
Export Type to IFC AsIfcBoiler
FeaturesElectric wall mounted boiler
Finishn/a
Frequency50 Hz
GLN5400891000007
Graden/a
GTIN5400891032473
Height763.00 mm
Hydronic Return Diameter19.05 mm
Hydronic Supply Diameter19.05 mm
Ifc Export AsIfcBoiler
Ifc Export TypeIfcBoilerType.WATER
KeynoteT32
Light GreyColor RGB 143-146-144
ManufacturerACV
Manufacturer Art NoA1002095
Manufacturer NameACV
Manufacturer URLwww.acv.com/international/customer/dl/549
Materialn/a
Maximum Supply Temperature Operating Temperature85 °C
Max Power Boiler8 kW
Max Pressure Heating3.0 bar
Min Power Boiler6 kW
ModelE-Tech W 09 Mono
Model NumberE-Tech W 09 Mono
Model ReferenceE-Tech W
NBS DescriptionElectric boilers
NBS Noten/a
NBS Object NameACV - Electric boilers
NBS Office Master Tagn/a
NBS Reference90-40-05/430
Nominal Depth332.00 mm
Nominal Height763.00 mm
Nominal Length442.00 mm
Phase1
Power78 W
Power Resistancek W5.6 / 8.4
Production Year2026
Product LineE-Tech W
Rated Current Fuse40 A
Referenced Standardn/a
Replacement CostRectangle
ShapeRectangle
Sizen/a
Space Heating Energy Efficiency ClassD
Spare Partsuk.sales@acvuk.com
Total Capacity13.0 L
Total Width446.00 mm
Type CommentsE-Tech W 09 Mono
Type IFC Predefined TypeWATER
Type NameE-Tech W 09 Mono
URLwww.acv.com/gb
Use Nominal DiameterYes
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laboruk.sales@acvuk.com
Warranty Guarantor Partsuk.sales@acvuk.com
Weight45.00 kg
WhiteColor RGB 222-222-222
Width442.00 mm

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
