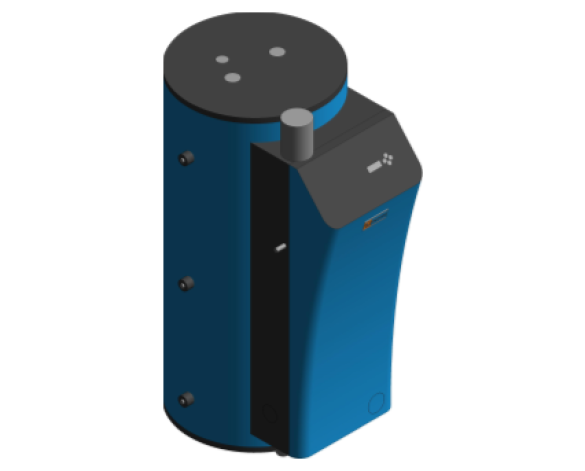

DR-CC Condensing Water Heater

by Hamworthy Heating

Download Add to collection

Description

The Dorchester DR-CC range of condensing water heaters is designed to meet the needs of new build and refurbishment projects.

Choose from 9 models with low gas inputs starting at 12.1kW, continuous outputs (@44°C ΔT) from 228l/h to 614l/h and storage capacities from 162 to 384 litres.

Object Data

1 Revision

Last Updated

31/01/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

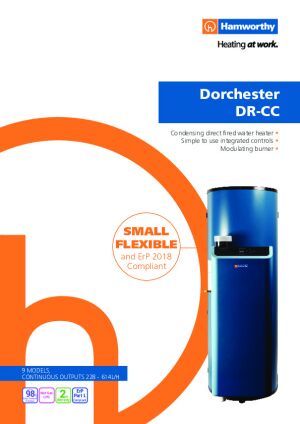

Installation Guide

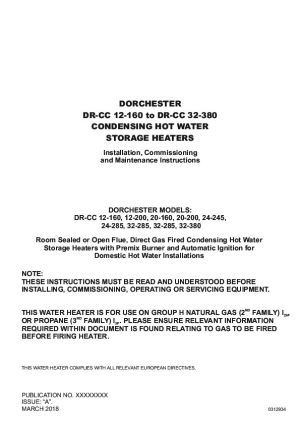

Product Literature

Product Data Sheet

Object metadata

_AuthorConnor Laing
_Authorized ByRW
_Bim Spec Guid0
_BS Bible Version14
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Access Clearance Bottom0 mm
Access Clearance Front1000 mm
Access Clearance Left500 mm
Access Clearance Rear0 mm
Access Clearance Right500 mm
Access Clearance Top1000 mm
Accessibility Performancen/a
Additional Technical Detailsn/a
Air Inlet Connection Size0 mm
Assembly CodeD3020100
Asset TypeFixed
Back Box367 mm
BIM Object NameHamworthyHeating_MechanicalFixtures_Boiler_DorchesterDRCC
Black MaterialUHMW, Black
Blue MaterialPaint - Blue
BMS LinksNo
Building Regulations Seasonal Efficiency96
Burner Control TypeGas Air Ratio
Cap20 mm
CE ApprovalYes
Classification NameUniclass2015
Classification ValuePr_60_60_96_33
Code Performancen/a
ColorBlue
ColourBlue
Condensate Drain Size40 mm
Condensate Drain TypeTrap
Configurationn/a
Constituentsn/a
Control Typen/a
Created Bymarketing@hamworhty-heating.com
Created On2017-03-13-T00:00:00
Depth805 mm
DescriptionDorchester DR-CC Fully automatic, simple to operate condensing direct fired water heater for domestic hot water
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2552
Documentation Maintenancen/a
Documentation Technicaln/a
Drain Connection Size0 mm
Drain Connection Typen/a
Duration UnitYears
ErP Rated Efficiency At Full Loadn/a
ErP Rated Efficiency At Part Loadn/a
ErP Seasonal Efficiencyn/a
Expected Life0
External Materialn/a
FeaturesFits through Standard Doorway / Low NOx / Heat Exchanger Design and Burner Distributes heat evenly / Easy access for service and maintenance / Flexible flue options / Minimal Clearances
Finishn/a
Flow And Return Connection Size0 mm
Flow And Return Connection Typen/a
Flue Calc1310 mm
Flue Connection Size130 mm
Flue Or Air Intake ClassificationC13/C33/C43/C53/C63
Frequencyn/a
Fuel Connection Type15mm male
Full Load Currentn/a
Fuse Rating6Amp
Gas Consumption Rate2.3
gasheightcalc870 mm
Graden/a
Gross Weight120.00 kg
Heater Operationn/a
Heat Exchanger Materialn/a
Heightof Flue Outlet1310 mm
Heightof Gas Connection870 mm
Heightof Hot Water Outlet1270 mm
Heightof Inspection Door280 mm
Heightof TP_Valve Connection1330 mm
Height Recirculation Connection690 mm
Hydraulic Resistanceat 11 C Temperature Differentialn/a
Hydraulic Resistanceat 20 C Temperature Differentialn/a
Ifc Export AsIfcBoilerType
Ifc Export TypePset_BoilerTypeCommon
IK Ratingn/a
Inspection Door155 mm
inspectiondoorcalc155 mm
InterlocksNo
IP Rating20
KeynoteT32
ManufacturerHamworthy Heating
Manufacturer NameHamworthy Heating
MaterialStainless Steel
Maximum Gas Inlet Pressuren/a
Maximum Oil Inlet Pressuren/a
Maximum Operating Pressure20
Maximum Power Consumption85
Minimum Flow Rate At 11 C Temperature Differentialn/a
Minimum Flow Rate At 20 C Temperature Differentialn/a
Minimum Gas Inlet Pressuren/a
Minimum Oil Inlet Pressuren/a
Minimum Operating Pressuren/a
Minimum Power Consumptionn/a
ModelDorchester DR-CC
Model NumberDR-CC 12-160
Model ReferenceDorchester DR-CC
MountingFloor standing
NBS DescriptionInstantaneous water heaters, gas fired
NBS Noten/a
NBS Object NameHamworthyHeating_Gas-fired instantaneous water heaters
NBS Office Master Tagn/a
NBS Reference90-15-35/410
Nominal Depth855 mm
Nominal Gas Inlet Pressure20
Nominal Height1270 mm
Nominal Length0 mm
Nominal Oil Inlet Pressuren/a
NOx Emissions23
Offset18 mm
Oil Consumption Raten/a
Optional FuelLPG
Panel Offset100 mm
Pipe Offset220 mm
Position Flue Outlet325 mm
Primary FuelNatural Gas
Production Year2017
Product Literaturedocgaproduction.cellar.services.clever-cloud.com/documents_c90b042e-38c0-4d57-9e23-3577a8bbab00/dorchester-dr-cc-500002692-b-web.pdf?AWSAccessKeyId=MW2NM1KMBUFH2SMVHW1L&Expires=1526995634&Signature=CKR7ddepqIKHl6tUej2PHQ%2Bz0VU%3D
Product RangeDorchester DR-CC
Radius280 mm
Rated Output11.7
Replacement Costn/a
Safety Valve Connection Typen/a
ShapeCylindrical
Shipping Weight114.00 kg
Size1270mm (H) x 560mm (W)
Sound Pressure Level41
Spare Partsn/a
Starting Current25
Supply Phasen/a
Tag Numbern/a
Total Height1270 mm
Turndown Ration/a
Typen/a
Type CommentsDorchester DR-CC condensing water heater
Type NameDorchester DR-CC condensing water heater
URLwww.hamworthy-heating.com/commercial-hot-water-heaters/dorchester-dr-cc-condensing-water-heater
Voltagen/a
Warranty DescriptionThe Dorchester DR-CC comes with a 2-year warranty (except for consumables in line with our Terms and Conditions). Where the product is commissioned by Hamworthy service engineers within 6 months of delivery date, then the two-year warranty covers parts and labour from date of commissioning.
Warranty Duration Labor0
Warranty Duration Parts2
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water Content0
Water Treatment Requiredn/a
Width560 mm
ZoneClearanceZone
