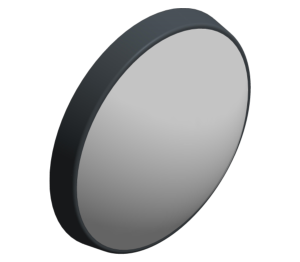

DOTT M

Description

Wall and ceiling lighting – Hogro Plus. Impact proof design luminaire for surface and recessed mounting. Impact proof design luminaire for surface and recessed mounting.

Object Data

1 Revision

Last Updated

14/03/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized ByKris Atkinson
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Apparent Load0 VA
Assembly CodeD5020200
Asset TypeFixed
BIM Object NameLightronics_LightingFixture_WallAndCeiling_DOTT_M
Classification NameUniclass 2015
Classification ValuePr_70_70_48_85
Code Performancen/a
ColorHousing: aluminium coated (DB703) or RAL 9010. Cover: UV-stabilised polycarbonate opal or frosted
Color Filter16777215
Constituentsn/a
Created Byinfo@lightronics.nl
Created On2018-03-06T09:00:00
Default Elevation1219 mm
Depth445 mm
DescriptionImpact proof design luminaire for surface and recessed mounting
Diameter445 mm
Dimming Lamp Color Temperature Shift<None>
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturespecifi.bimstore.co.uk/document/share/2435
Documentation Maintenancen/a
Documentation Technicaln/a
Duration Unit20 Years
Emit from Circle Diameter400 mm
Emit Shape Visible in RenderingNo
Expected Life10
Featuresn/a
Finishn/a
Graden/a
Height124 mm
Ifc Export AsIfcLightFixtureTypeEnum.POINTSOURCE
Ifc Export TypeIfcLightFixture
KeynoteV90/510
Length445 mm
Light Offset15 mm
ManufacturerLightronics
Manufacturer NameLightronics
MaterialUV-stabilised polycarbonate
ModelDOTT M - Recessed Mounted
Model NumberDOTT M - Recessed Mounted
Model ReferenceIP 65
NBS DescriptionSurface luminaires
NBS Object NameLightronics - General purpose luminaires
NBS Office Master Tagn/a
NBS Reference90-60-50/405
Nominal Depth445 mm
Nominal Height124 mm
Nominal Length445 mm
Number Of Poles1
Photometric Web FileDOTTM-LO4-1-12-350-D-F-1270-230-X-W.ies
Production Year2018
RecessedYes
Referenced Standardn/a
ShapeCircular
Size445x124
Spare Partsn/a
Surface MountedNo
Tilt Angle90.00 °
Type CommentsWall and ceiling lighting – Hogro Plus. Impact proof design luminaire for surface and recessed mounting
Type NameDOTT M
URLwww.lightronics.nl/en/
Voltage230 V
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laborinfo@lightronics.nl
Warranty Guarantor Partsinfo@lightronics.nl
