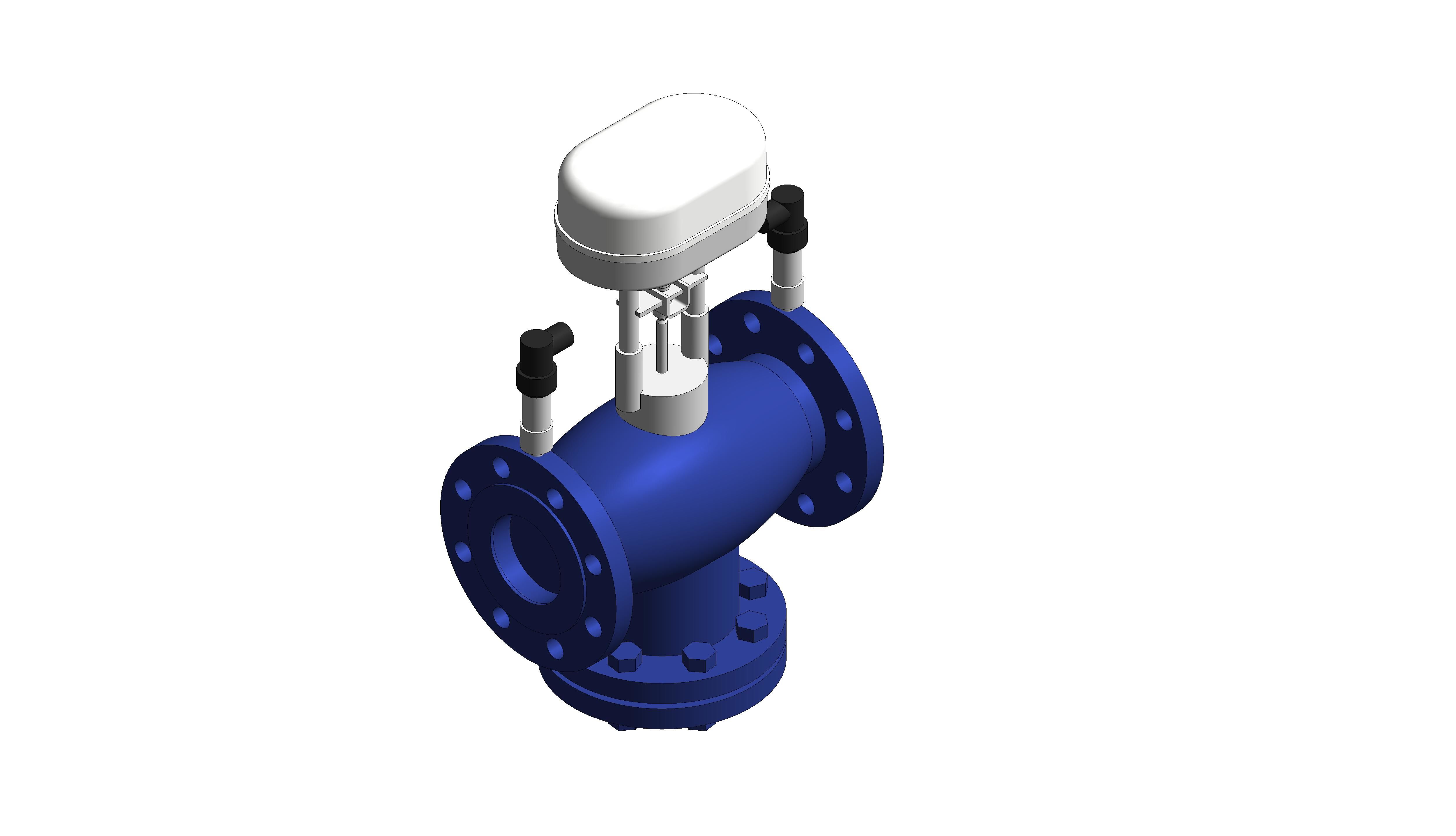

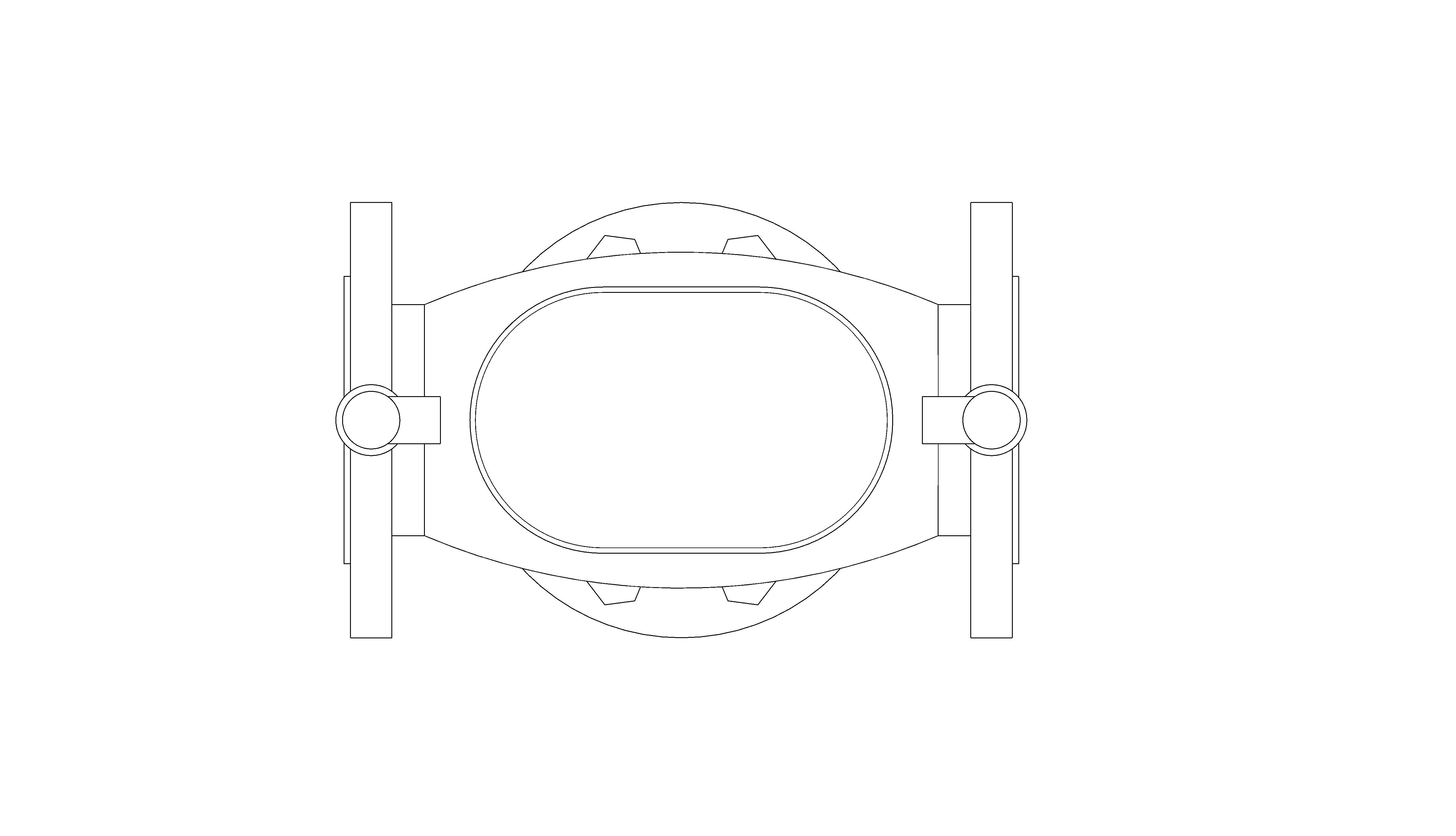

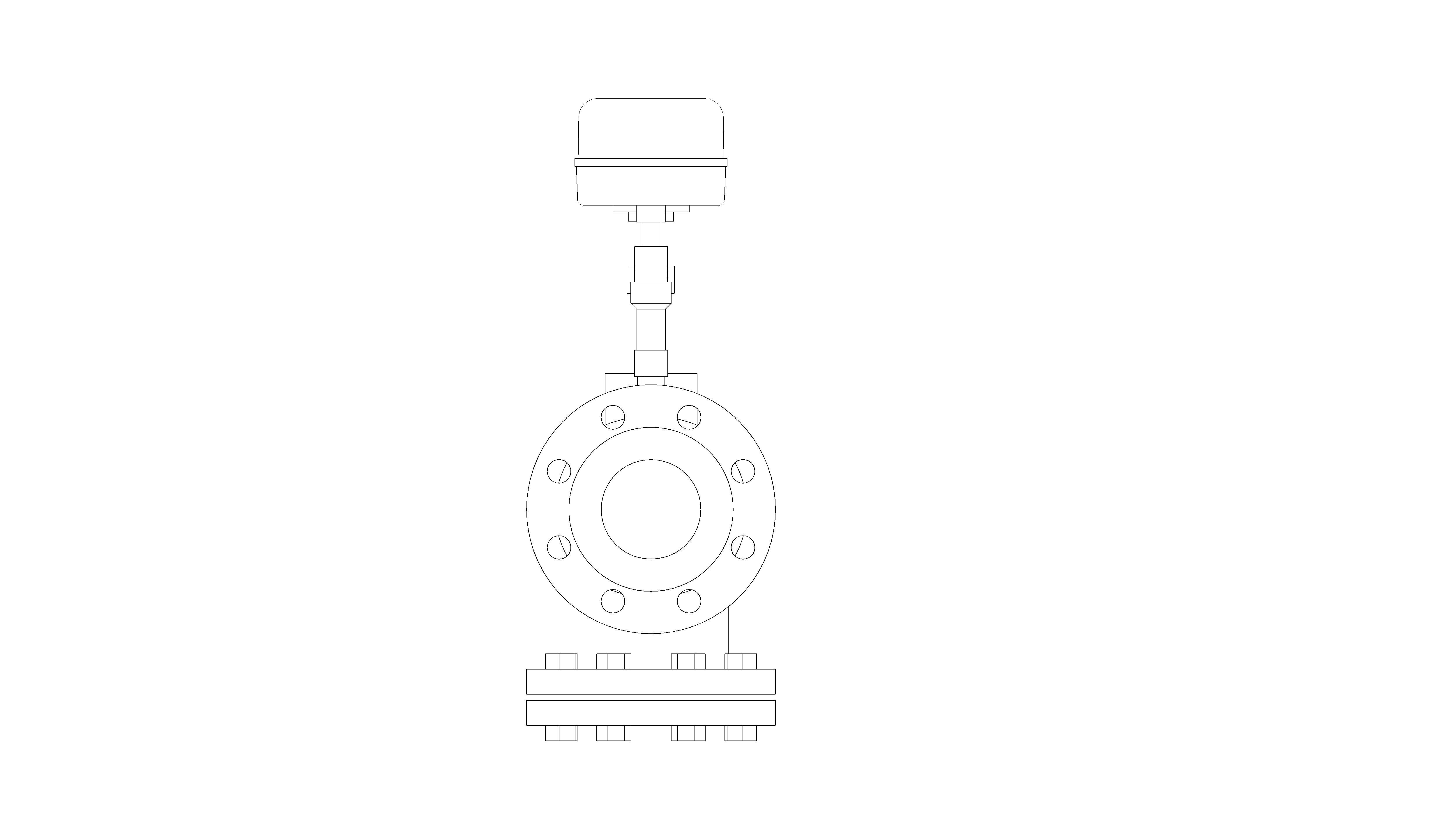

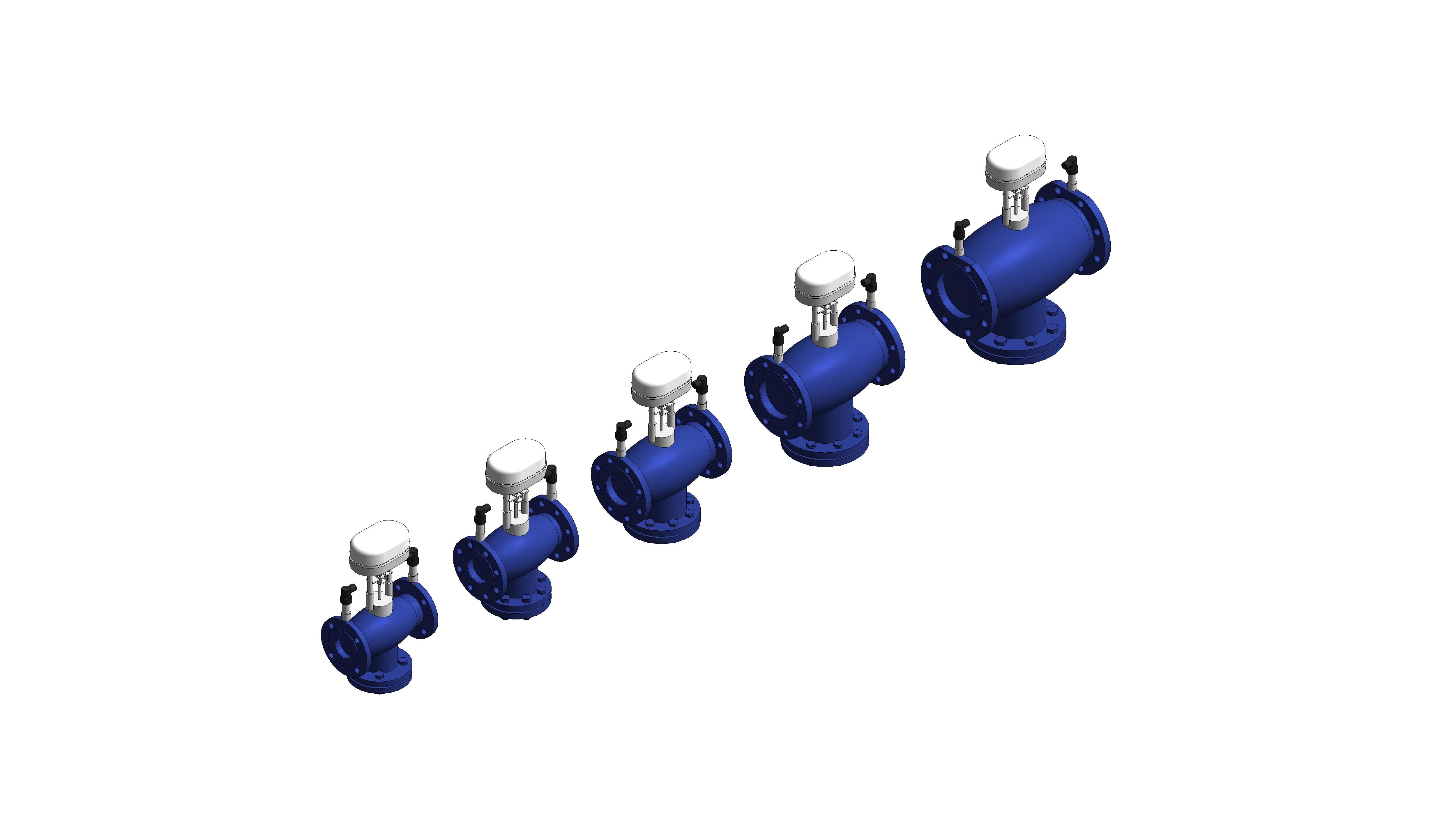

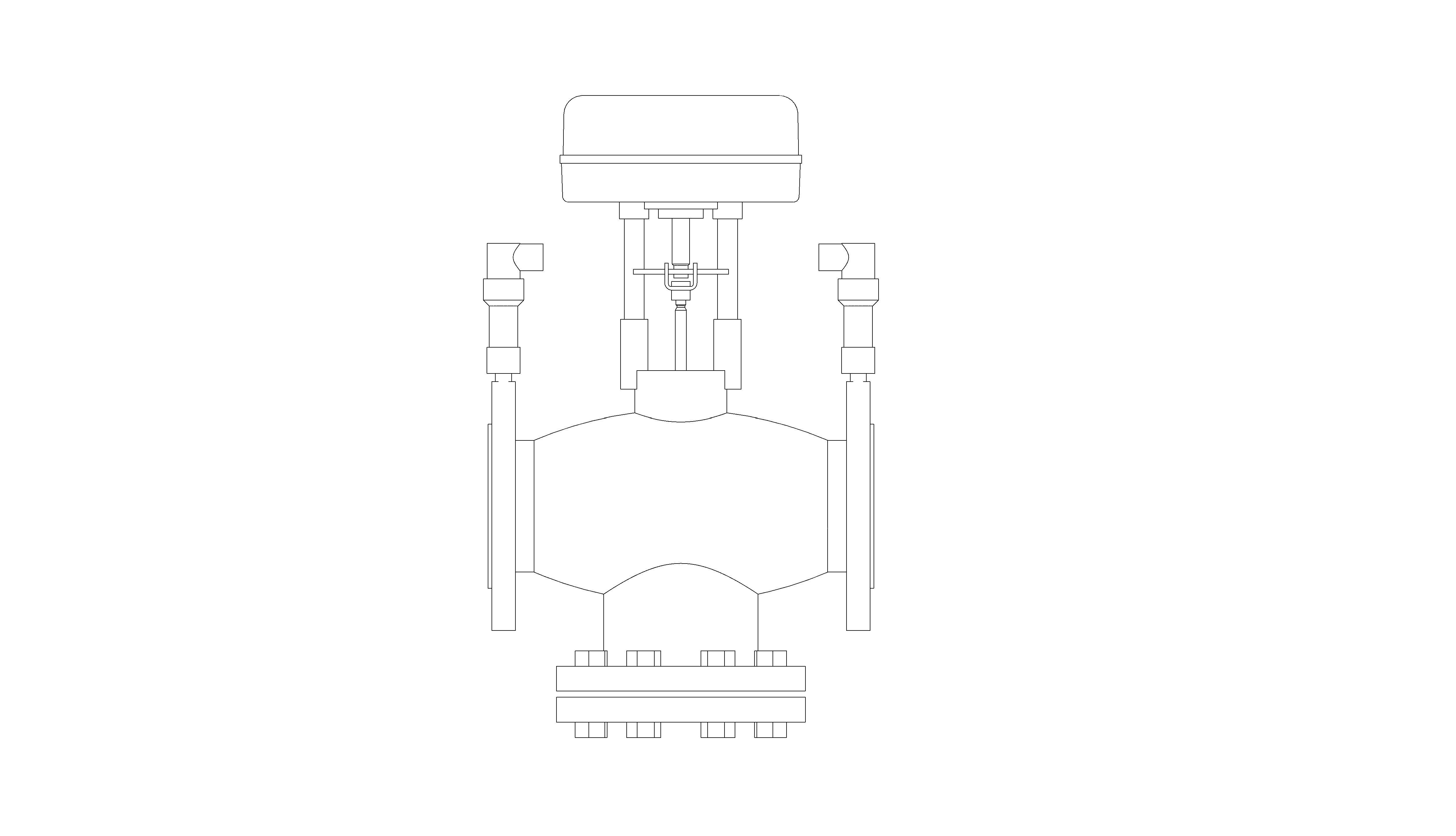

D996F - Electronic Pressure Independent Control Valve

by Crane Fluid Systems

Download Add to collection

Description

E-PICV uses pressure transducers combined with a high-speed actuator to automatically regulate flow, regardless of pressure fluctuations in the system.

Features & Benefits

Reduced commissioning time and costs due to the preconfigured actuator settings, via the BMS or Crane configurator tool
Stable head output by maintaining a flow rate regardless of ∆P via pressure sensors
System optimisation using the indicated flow rate and position feedback via Modbus
Reduced installation labour and cabling costs due to daisy chaining between Modbus actuators
Reduced downtime due to error feedback via the BMS
Optimised system efficiency and user comfort due to fast responding actuator
Critical application protection from configurable fail-safe feature

Isolation function with Class IV leakage up to 800kPa

Object Data

1 Revision

Last Updated

12/05/2023

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

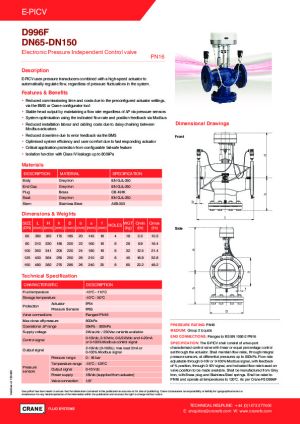

Product Literature

Product Data Sheet

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/d996f-electronic-pressure-independent-control-valve/document/object-user-guide
110 mm
220 mm
367 mm
420 mm
5370 mm
670 mm
710 mm
845 mm
950 mm
a180 mm
Accessibility Performancen/a
Assembly CodeD20
Asset TypeFixed
b24 mm
BIM Object NameCraneFS_ElectronicPressureIndependentControlValve_D996F
BodyGrey Iron EN GJL-250
Classification NameUniclass 2015
Classification ValuePr_65_54_40_16
Code Performancen/a
Colorn/a
Connection Radius50 mm
Connection Size100 mm
Constituentsn/a
Control Signal0-10Vdc, 2-10Vdc, 0-5/2-6Vdc and 4-20mA or 0-100% Modbus control signal
Created Byenquiries@cranefs.com
Created On2023-05-10 T:09:00:00
D220 mm
DescriptionE-PICV uses pressure transducers combined with a high-speed actuator to automatically regulate flow, regardless of pressure fluctuations in the system.
Documentation Certificateswww.bimstore.co/products/d996f-electronic-pressure-independent-control-valve/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/d996f-electronic-pressure-independent-control-valve/document/installation-guide
Documentation Literaturewww.bimstore.co/products/d996f-electronic-pressure-independent-control-valve/document/product-literature
Documentation Maintenancewww.bimstore.co/products/d996f-electronic-pressure-independent-control-valve/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/d996f-electronic-pressure-independent-control-valve/document/technical-data-sheet
Duration UnitYear
End CapGrey Iron EN GJL-250
End ConnectionFlanges to BS EN 1092-2 PN16
Expected Life0
f18 mm
Features- Reduced commissioning time and costs due to the preconfigured actuator settings, via the BMS or Crane configurator tool - Stable head output by maintaining a flow rate regardless of ∆P via pressure sensors - System optimisation using the indicated flow rate and position feedback via Modbus - Reduced installation labour and cabling costs due to daisy chaining between Modbus actuators - Reduced downtime due to error feedback via the BMS - Optimised system efficiency and user comfort due to fast responding actuator - Critical application protection from configurable fail-safe feature - Isolation function with Class IV leakage up to 800kPa
Finishn/a
Flange Diameter220 mm
Flange Hole Offset90 mm
Flange Hole Radius10 mm
Flange Thickness24 mm
Fluid Temperature-10°C - 110°C
Graden/a
h206 mm
H341 mm
Hex 1 VisNo
Hex 2 VisYes
Hex Offset86 mm
Hex Width24 mm
Ifc Export AsIfcValve
Ifc Export TypeIfcValveTypeEnum.MIXING
KeynoteS
L350 mm
ManufacturerCrane FS
Manufacturer NameCrane FS
Materialn/a
Maximum Close Off Pressure800.0 kPa
MediumGroup 2 Liquids
ModelD996F
Model NumberD996F
Model ReferenceElectronic pressure independent control valve
NBS DescriptionControl valves
NBS Noten/a
NBS Object NameCrane FS - Control valves
NBS Office Master Tagn/a
NBS Reference90-15-40/329
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Offset Text210 mm
Operational∆P Range35kPa – 800kPa
Output Signal2-10Vdc (0-100%); max load 2mA or 0-100% Modbus signal
PlugBrass CB 491K
Pressure RatingPN16
Pressure Sensor Offset115 mm
Pressure Sensors-Output Signal0-10 Vdc
Pressure Sensors-Power Supply16Vdc (supplied from actuator)
Pressure Sensors-Pressure Range0 - 16 bar
Pressure Sensors-Temperature Range-15°C - 125°C
Pressure Sensors-Valve Connection1/8”
Production Year2021
Protection-ActuatorIP54
Protection-Pressure SensorsIP65
Qmax21.4 L/s
Qmin12.5 L/s
Raised Face Diameter158 mm
Raised Face Height3 mm
Referenced Standardn/a
Replacement Costn/a
SeatGrey Iron EN GJL-250
Shapen/a
SizeDN100
Spare Partsn/a
Specification NotesThe E-PICV shall consist of a two-port characterised control valve with linear or equal percentage control set through the actuator. Shall maintain flow rates, through integral pressure sensors, at differential pressures up to 800kPa. Flow rate adjustable through 0-10V or 0-100% Modbus signal, with feedback of % position, through 0-10V signal, and indicated flow rate based on valve position to be made available. Shall be manufactured from Grey Iron, with Brass plug and Stainless-Steel springs. Shall be rated to PN16 and operate at temperatures to 120°C. As per Crane FS D996F.
StemStainless Steel AISI-303
Storage Temperature-10°C - 50°C
Supply Voltage24Vac/dc / 230Vac variants available
Type CommentsElectronic pressure independent control valve
Type NameD996F
URLwww.cranefs.com/
Valve ConnectionsFlanged PN16
Void Offset200 mm
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborenquiries@cranefs.com
Warranty Guarantor Partsenquiries@cranefs.com
Weight32.00 kg
