D134W - Check Valve
Description
D134W
D134W - DN15-DN50 - Check Valve
Object Data
1 Revision
Last Updated
25/06/2026
Available Software
BS1192:4
Compliant
BSB
Compliant
EPD
Not Available
Object metadata
- _AuthorSM
- _Authorized Bybimstore
- _Bim Spec Guid0
- _BS Bible Version17
- _Created Bywww.bimstore.co/
- _Current Revision1
- _Distributed Bywww.bimstore.co/
- _Object User Guidewww.bimstore.co/products/9c678d97-8061-4e4e-8e06-edee2cd8f305/document/object-user-guide
- A58 mm
- Accessibility Performancen/a
- Assembly CodeD20
- Asset TypeFixed
- B45 mm
- BIM Object NameCraneFS_CheckValve_D134W
- Bonnet Height 147 mm
- Bonnet Height 26 mm
- Bonnet Offset16 mm
- Bonnet Thickness14 mm
- Bonnet Width 130 mm
- Bonnet Width 221 mm
- Classification NameUniclass 2015
- Classification ValuePr_65_54_40_13
- Code Performancen/a
- ColorBrass
- Connection Size15 mm
- Connection Size Radius8 mm
- Constituentsn/a
- Created Byenquiries@cranefs.com
- Created On2026-06-03T:09:00:00
- Default Elevation0 mm
- DescriptionCheck Valve - DN15
- DN15
- Documentation Certificateswww.bimstore.co/products/9c678d97-8061-4e4e-8e06-edee2cd8f305/document/product-certificates

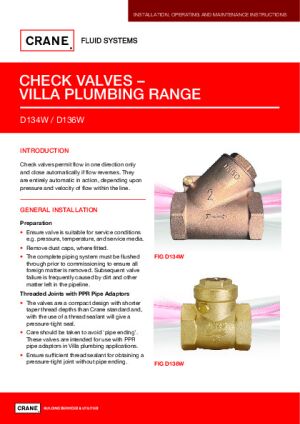

- Documentation Installation Guidewww.bimstore.co/products/9c678d97-8061-4e4e-8e06-edee2cd8f305/document/installation-guide
- Documentation Literaturewww.bimstore.co/products/9c678d97-8061-4e4e-8e06-edee2cd8f305/document/product-literature
- Documentation Maintenancewww.bimstore.co/products/9c678d97-8061-4e4e-8e06-edee2cd8f305/document/maintenance-information

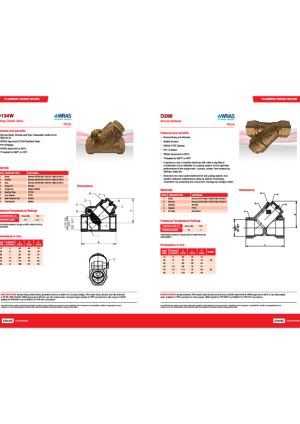

- Documentation Technicalwww.bimstore.co/products/9c678d97-8061-4e4e-8e06-edee2cd8f305/document/technical-data-sheet
- Duration UnitYear
- Expected Life0
- Featuresn/a
- Finishn/a
- Flange Thickness12 mm
- Graden/a
- Hinge Pin Offset 117 mm
- Hinge Pin Offset 26 mm
- Hinge Pin Size6 mm
- Ifc Export AsIfcValve
- Ifc Export TypeIfcValveTypeEnum.CHECK
- K Coefficient0
- KeynoteS
- Loss MethodNot Defined
- ManufacturerCrane FS
- Manufacturer NameCrane FS
- Materialn/a
- ModelCheck Valve - DN15
- Model NumberD134W
- Model ReferenceDN15
- NBS DescriptionCheck valves
- NBS Noten/a
- NBS Object NameHattersley - Check valves
- NBS Office Master Tagn/a
- NBS Reference90-15-40/323
- Nominal Depth0 mm
- Nominal Height0 mm
- Nominal Length0 mm
- Production Year2026
- Referenced Standardn/a
- Replacement Costn/a
- Shapen/a
- Size1/2"
- Spare Partsn/a
- Thread9 mm
- Thread Outer31 mm
- Type CommentsDN15
- Type NameDN15
- URLwww.cranefs.com/
- Valve MaterialCrane - Metal - Brass
- Warranty Descriptionn/a
- Warranty Duration Labor0
- Warranty Duration Parts0
- Warranty Duration UnitYear
- Warranty Guarantor Laborenquiries@cranefs.com
- Warranty Guarantor Partsenquiries@cranefs.com
We have more variations, please download the object to get them all.
Sustainability & Environmental Data
Not available.
Environmental Product Declarations
There are no EPDs.
