Concrete Ground Floors

  • Bim, content,object,component,BIM, Store, Revit, stewart,milne,timber,systems,frame,concrete,ground,floor,superstructure,dpc,level,bearing,slab,suspended,beam,block,screed
  • Bim, content,object,component,BIM, Store, Revit, stewart,milne,timber,systems,frame,concrete,ground,floor,superstructure,dpc,level,bearing,slab,suspended,beam,block,screed
  • Bim, content,object,component,BIM, Store, Revit, stewart,milne,timber,systems,frame,concrete,ground,floor,superstructure,dpc,level,bearing,slab,suspended,beam,block,screed
  • Bim, content,object,component,BIM, Store, Revit, stewart,milne,timber,systems,frame,concrete,ground,floor,superstructure,dpc,level,bearing,slab,suspended,beam,block,screed
  • Views 3.2k
  • Comments 0
  • Rating5 / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

CEN442

Compliant

COBie

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

16/06/2017

Available for:
  • Logo: Autodesk Revit

For completeness Stewart Milne Timber Systems has provided a range of commonly used ground floor concrete floor systems, which interface with the Timber Frame superstructure at DPC level.

Stewart Milne Timber Systems can provide advice to assist designers in developing their BIM and detailing around the ground floor interfaces. Typically the design responsibility of ground floor construction rests with the architect or engineer. Stewart Milne Timber Systems do not design or supply concrete ground floor systems.

This download contains Revit components for the Stewart Milne Timber Systems concrete ground floor solutions. Content includes a number of variations including;

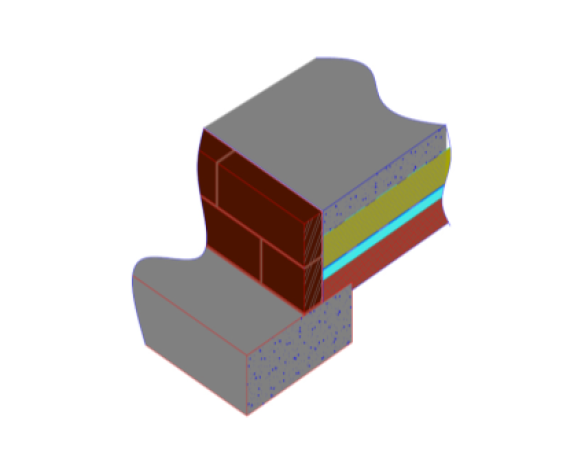

  • Concrete Ground Bearing Slab

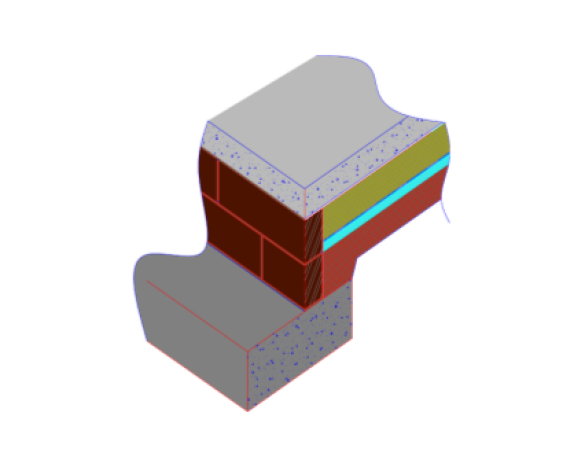

  • Concrete Suspended Slab

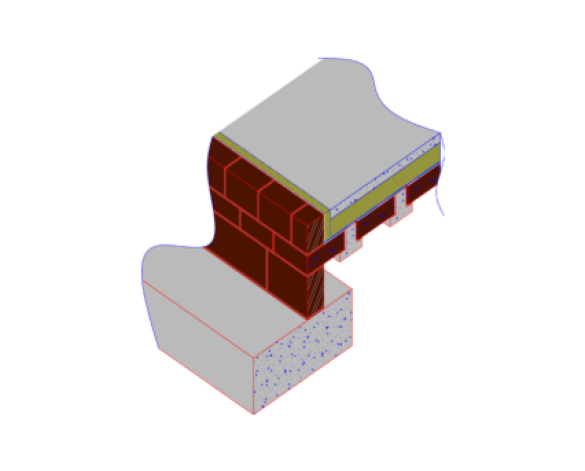

  • Concrete Beam & Block with Screed
  • 4no. floor type variations in total.

Please note Stewart Milne Timber Systems provides a complete in-house design service to assist architects and designers in the specification and modelling of your projects. Please contact Stewart Milne Timber Systems for additional guidance and to utilise this service.
