Combi Flat Roof System - Double

Description

Keylite Combi Flat Roof System 2018

A practical solution to the installation of two or three windows in a flat roof. The system is completely pre-fabricated for ease of installation on-site.

Click here to visit Keylite Roof Windows for more information.

Object Data

2 Revision

Last Updated

18/03/2024

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

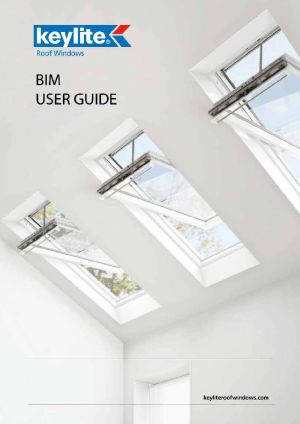

Object User Guide

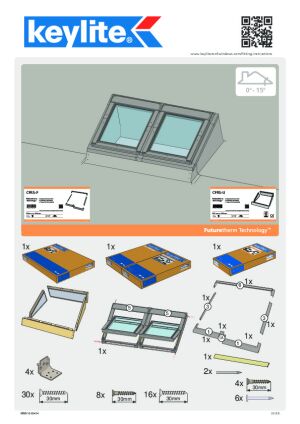

Installation Guide

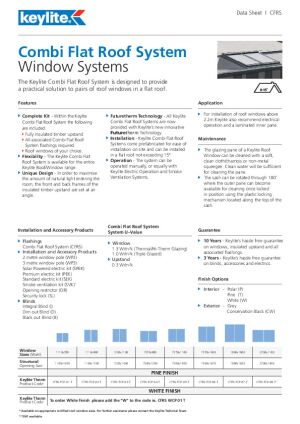

Product Literature

Technical Data Sheet

Product Data Sheet

Object metadata

_Authorinfo@keyliteuk.com
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Byinfo@keyliteuk.com
_Current Revision98
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/combi-flat-roof-system-double/document/object-user-guide
2D Detailwww.keyliteroofwindows.com/architects/cad-drawings/
Accessibility Performancen/a
AccessoryKeylite - Metal - Aluminium
Acoustic Performance32
Air PermeabilityClass 3
Analytic Construction<None>
Assembly CodeB3020100
Asset TypeFixed
BIM Object NameKeylite_Window_FlatRoofSystem_3.2FRS_Double
Classification NameUniclass2015
Classification ValueSs_30_30_72_72
Code Performancen/a
Colorn/a
Constituentsn/a
Construction WoodKeylite - Wood - Pine
Created Byinfo@keylite.co.uk
Created On19-05-2021 T09:00:00
Decoration TrimKeylite - Wood - Pine
Define Thermal Properties bySchematic Type
DescriptionA practical solution to the installation of two or three windows in a flat roof. The system is completely pre-fabricated for ease of installation on-site.
Documentation Certificateswww.bimstore.co/products/combi-flat-roof-system-double/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/combi-flat-roof-system-double/document/installation-guide
Documentation Literaturewww.bimstore.co/products/combi-flat-roof-system-double/document/product-literature
Documentation Maintenancewww.bimstore.co/products/combi-flat-roof-system-double/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/combi-flat-roof-system-double/document/technical-data-sheet
Duration UnitYear
Expected Life0
External PartsKeylite - Metal - Aluminium
FeaturesKeylite Flat Roof System comes complete with a shaped, insulated wooden kerb and flashing kit; Combine with your choice of Keylite roof windows (priced separately) for a complete ready to install solution; To maximise the amount of natural light entering the room, the front and back framing is angled; The system is also available with Keylite Electric Operation and Smoke Ventilation Systems.
Finishn/a
Graden/a
Height1000.00 mm
Height CP780.00 mm
Ifc Export AsIfcWindow
Ifc Export TypeIfcWindowTypeEnum.WINDOW
Impact ResistanceClass 2
Integrated Thermal CollarKeylite - Polyurethane Foam
Internal PartsKeylite - Plastic - Laminate - Ivory
KeynoteL10
Light Transmittance0.85
ManufacturerKeylite
Manufacturer NameKeylite
Materialn/a
ModelDouble Window Flat Roof System
Model Number3.2 FRS Double
Model ReferenceDouble Window Flat Roof System
NBS DescriptionRooflight systems
NBS Object NameKeylite - Rooflight systems
NBS Office Master Tagn/a
NBS Reference20-25-75/170
Nominal Depth1000.00 mm
Nominal Height0.00 mm
Nominal Length1100.00 mm
Picture Typewww.keyliteroofwindows.com/products/roof-windows/flat-roof-system/
Production Year2021
Referenced Standardn/a
Replacement Costn/a
Resistance To Snow Load4H-20, Ar-4TM
Resistance To Wind LoadClass C4
ShapeRectangular
Size1080mm(W) x 980mm(H)
Solar Factor G0.65
Spare Partsn/a
Thermal Transmittance Of Glass1.1
Thermal Transmittance Of Window1.3
Type Comments3.2 FRS Double
Type Name3.2 FRS Double
URLwww.keyliteroofwindows.com/
Vent FlapKeylite - Metal - Aluminium
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts10
Warranty Duration UnitYear
Warranty Guarantor Laborinfo@keyliteuk.com
Warranty Guarantor Partsinfo@keylite.co.uk
Water TightnessE1050
Width1100.00 mm
Width CP550.00 mm
WoodKeylite - Wood - Pine
Wooden BoardingKeylite - Bitumen/Asphalt

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
