Classic Towel Rail

20k
0
5 / 5
Rate this product

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

02/03/2020

Download BIM

Add to collection

Available for:

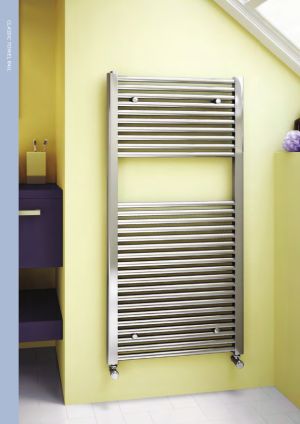

Stelrad Classic Towel Rails offer stylish looks and effective heating and drying performance - in the bathroom or in the kitchen. Available from stock in white or chrome.

Avaiable in lengths 400mm, 500mm & 600mm and heights ranging from 700mm to 1800mm.

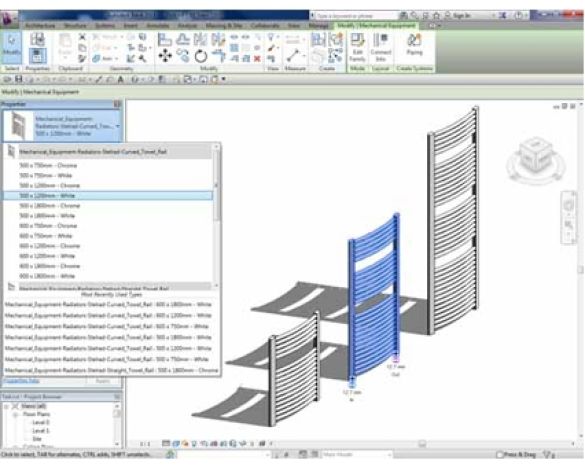

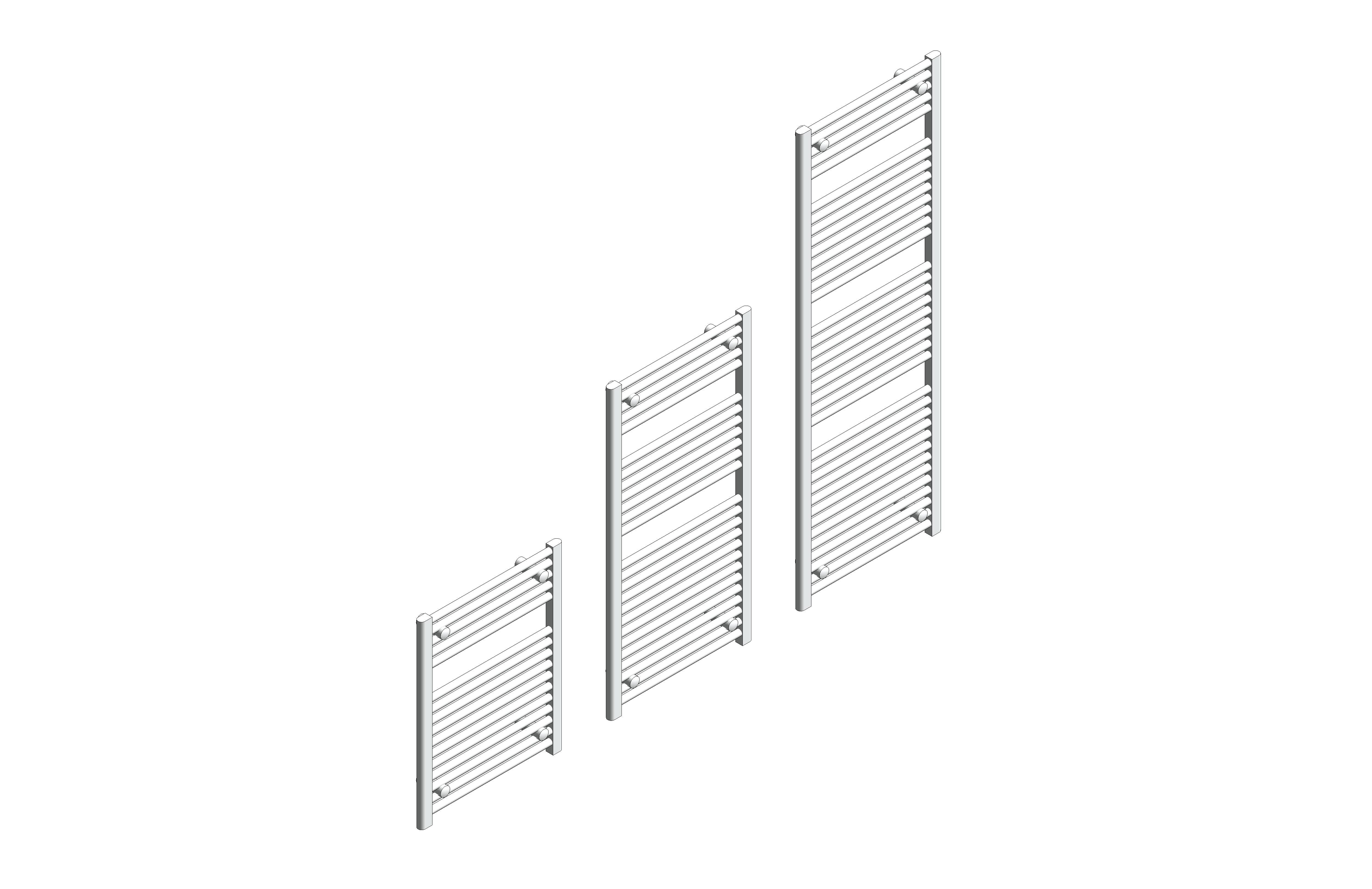

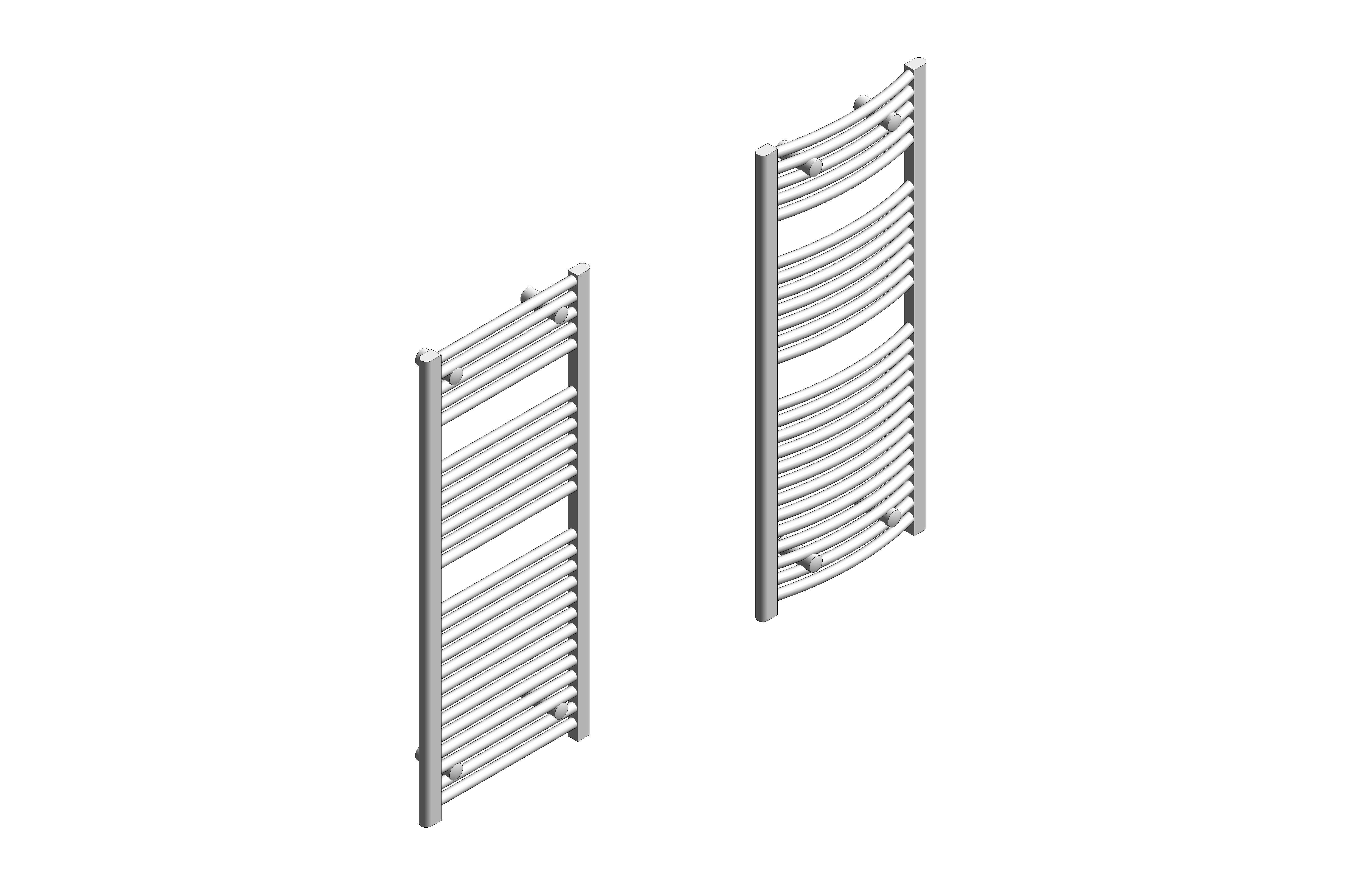

This download includes all available lengths for the straight and curved rails in both white and chrome finish as well as the Mini Towel Rail component.

Click here to view our interactive brochure

_authorized byKris Atkinson
_BIMspec_GUID0
_created byKris Atkinson
_current revision1
_distributed bywww.bimstore.co.uk
Access Clearance Bottom0 mm
Access Clearance Front0 mm
Access Clearance Left0 mm
Access Clearance Rear0 mm
Access Clearance Right0 mm
Access Clearance Top0 mm
Air VentYes
Assembly CodeD3020
Asset TypeFixed
Bracket Length Calc81 mm
Casing MaterialMild Steel
Classification NameUniclass2015
Classification ValuePr_70_60_36_73
ColorChrome
Connector Dia15 mm
Connector Dia Calc8 mm
Created Byinfo@stelrad.com
Created OnFeb16
DescriptionEffective heating and practical drying performance for the bathroom or kitchen
Documentation Literaturespecifi.bimstore.co.uk/document/share/1527
Documentation Technicalspecifi.bimstore.co.uk/document/share/1527
Drain TapNo
Duration UnitYears
Element Length310 mm
Element Radius13 mm
Element Spacing41 mm
Expected Life0
FeaturesMini Towel Rail
FinishChrome-plated
FinnedNo
Floor StandsNo
Gross Weight4.57
Heat Emitter MaterialMild Steel
Heat Output Btu/hr597
Heat Output Watts175
Heat reflectorNo
Heat Transfer MediumN/A
Height678 mm
Inlet GrilleNo
Integral Lockshield ValveNo
Integral Regulating ValveNo
Integral TRVNo
KeynoteT30/350
Length400 mm
Location of ManufacturerRotherham, S64 8BN, United Kingdom
ManufacturerStelrad Ltd
MaterialMild Steel
Max Projection100 mm
Maximum Operating Pressure8
Maximum Operating TemperatureN/A
Maximum Test Pressure10.5
ModelStelrad Mini Towel Rail
Model NumberStelrad Mini Towel Rail
Mounting TypeWall Mounted
NBS Object NameRadiators
NBS Reference90-40-35/405
Number of Panels14
Number of Sections14
Offset From Wall53 mm
Outlet GrilleNo
Overall Height678 mm
Overall Length400 mm
Pipe Connections Size15mm
Possible Connections PositionsBOE
Pressure DropAt the standard water flow rate as per BS EN 442
Product Literature2jomhg1cupfs2jxnrb3gelkt.wpengine.netdna-cdn.com/wp-content/uploads/2015/04/Towel-Rail-Technical-Specification-Brochure.pdf
Product Model Number147001
Product RangeStelrad Mini Towel Rail
Production Year2016
Radiator FinishStelrad-Chrome
Reference StandardEN 442 Certification Data - CETIAT tested in accordance with BS EN 442
Seam TypeN/A
ShapeRectangular (Vertical)
Shipping WeightN/A
Size678 x 400mm
Temperature ClassificationN/A
Thermal Output175W
Tier Spacing124 mm
TypeTubular
Type Comments678mm High x 400mm (Chrome)
Type Name678mm High x 400mm (Chrome)
UIN147001
URLwww.stelrad.com/
Wall BracketsYes
Warranty Duration UnitYears
Warranty Guarantor Partsinfo@stelrad.com
Water Content3.2
Water Flow RateRelating to standard test conditions as per BS EN 442
