CiRRUS - Unit Heater

  • Views 2.6k
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

21/08/2024

Available for:
  • Logo: Autodesk Revit

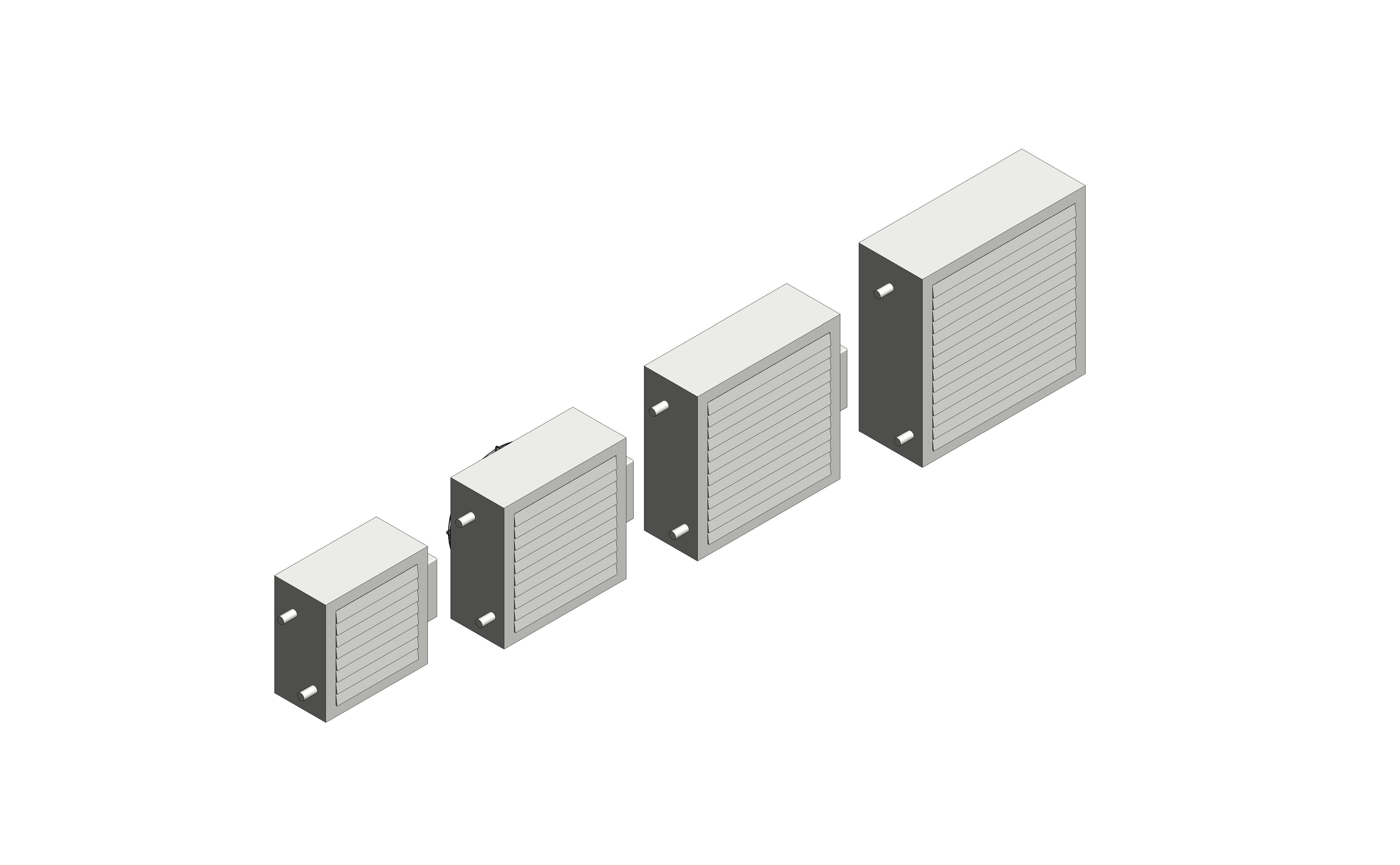

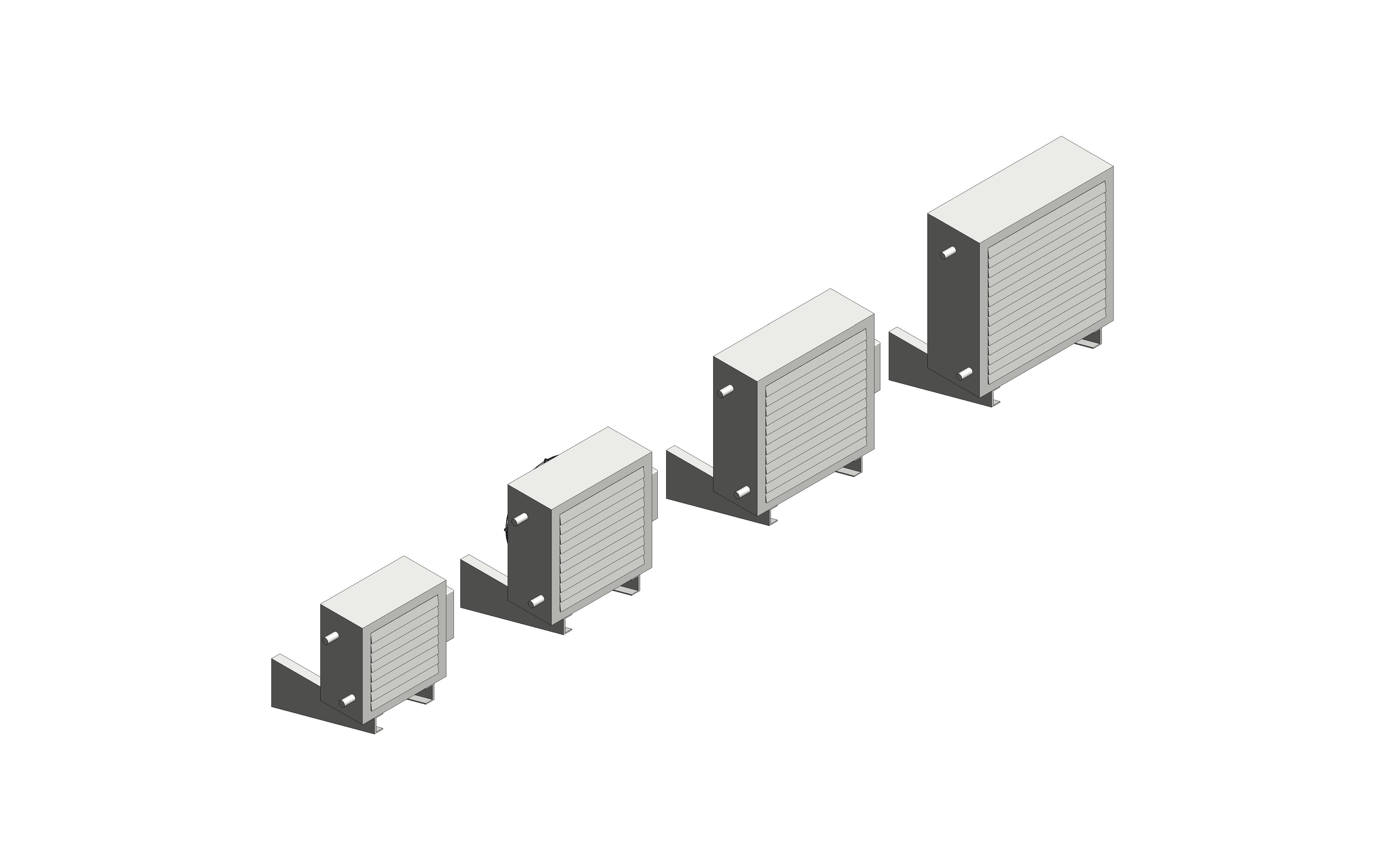

The SPC range of CiRRUS unit heaters are designed for installation in industrial or heavy commercial spaces; they are specifically intended for use in factories, warehouses, storage spaces, distribution centres, garage spaces etc. The unit heaters blow a powerful jet of air angled into the occupied space to provide local or overall heating of the work/storage area.

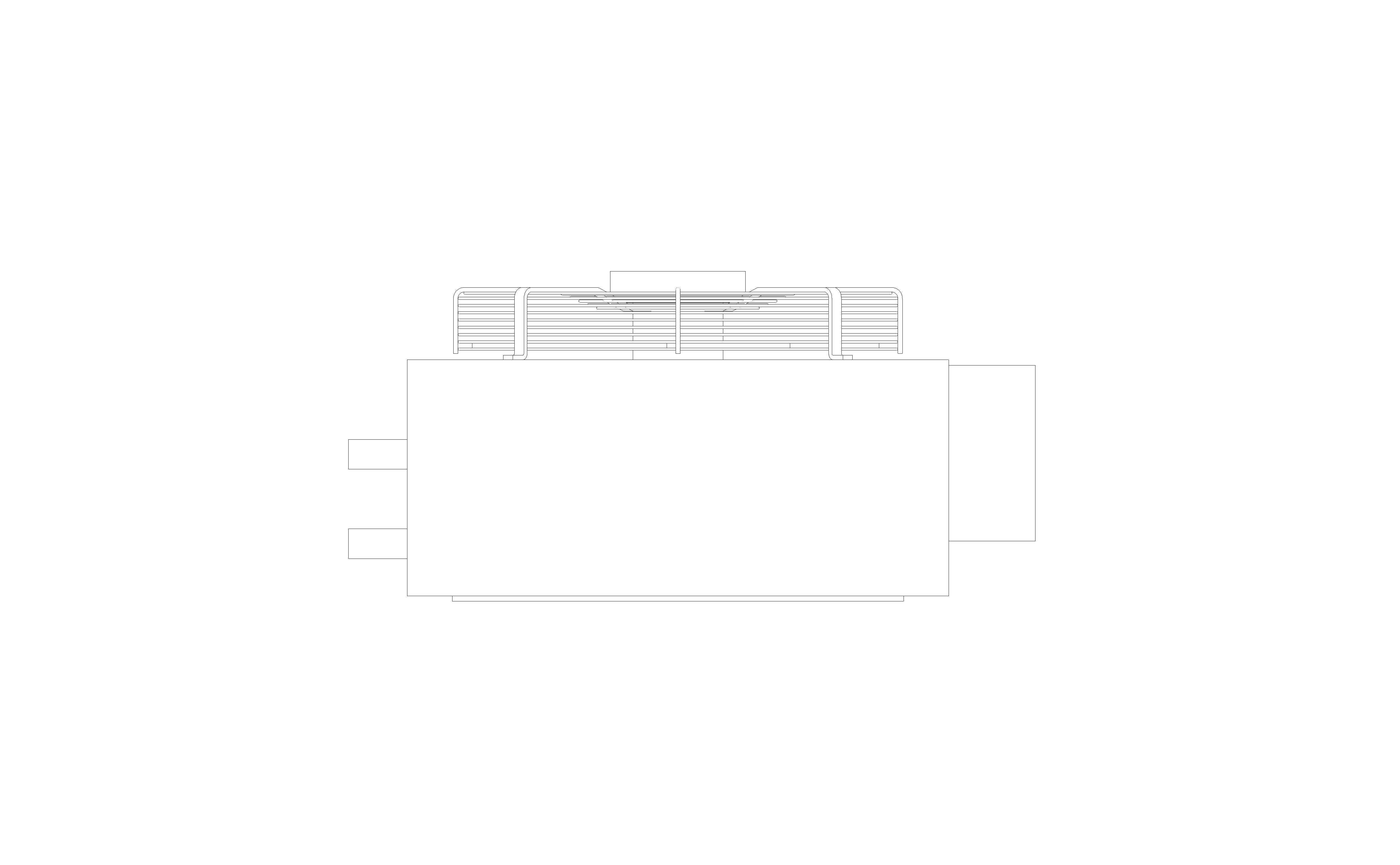

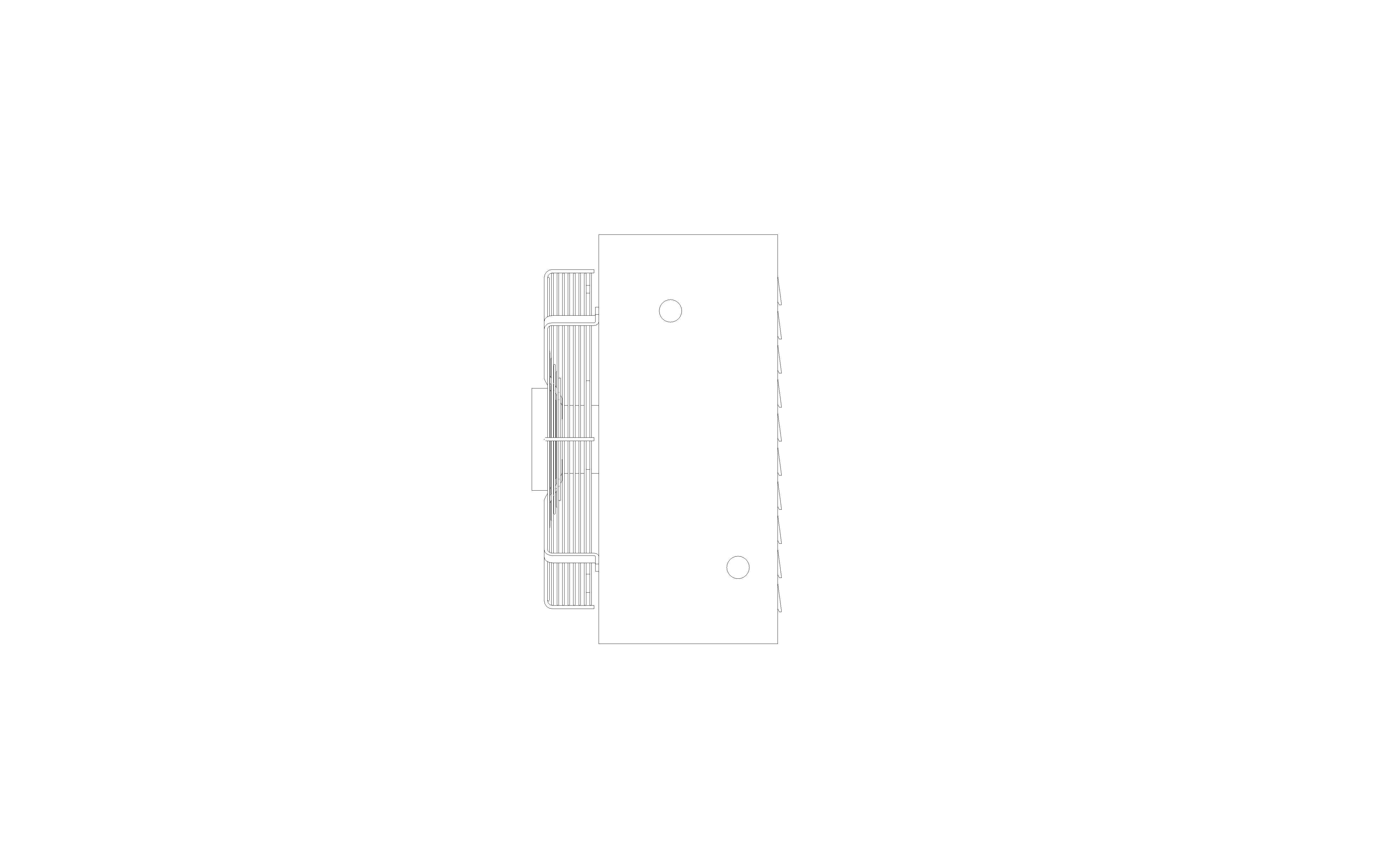

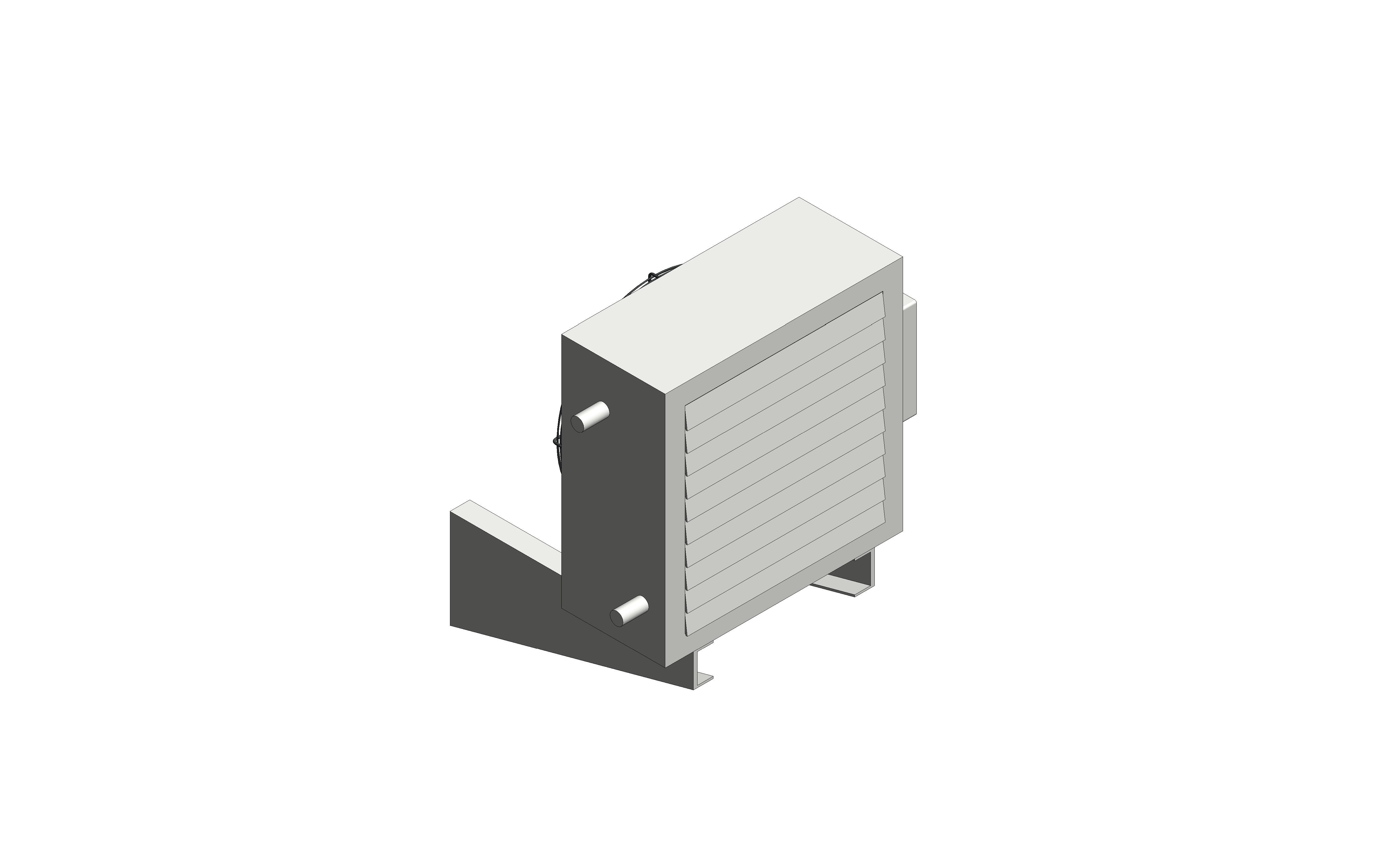

CiRRUS unit heaters consist of a powerful axial fan with EC motor which draws in space air, blows it across an optimised heat exchanger (coil) and discharges the air through a series of adjustable, angled louvre blades. The casing is powder coated steel and holds the motor/fan basket grille on the back and the coil towards the front with the pipe connections protruding through the casing. The electrical box is located on the side of the unit and a number of hanging bracket options are available.

The EC fan is continuously controllable via a 0-10V signal allowing the fan to rotate and move air at a rate commensurate with the height at which the units are required to be mounted.

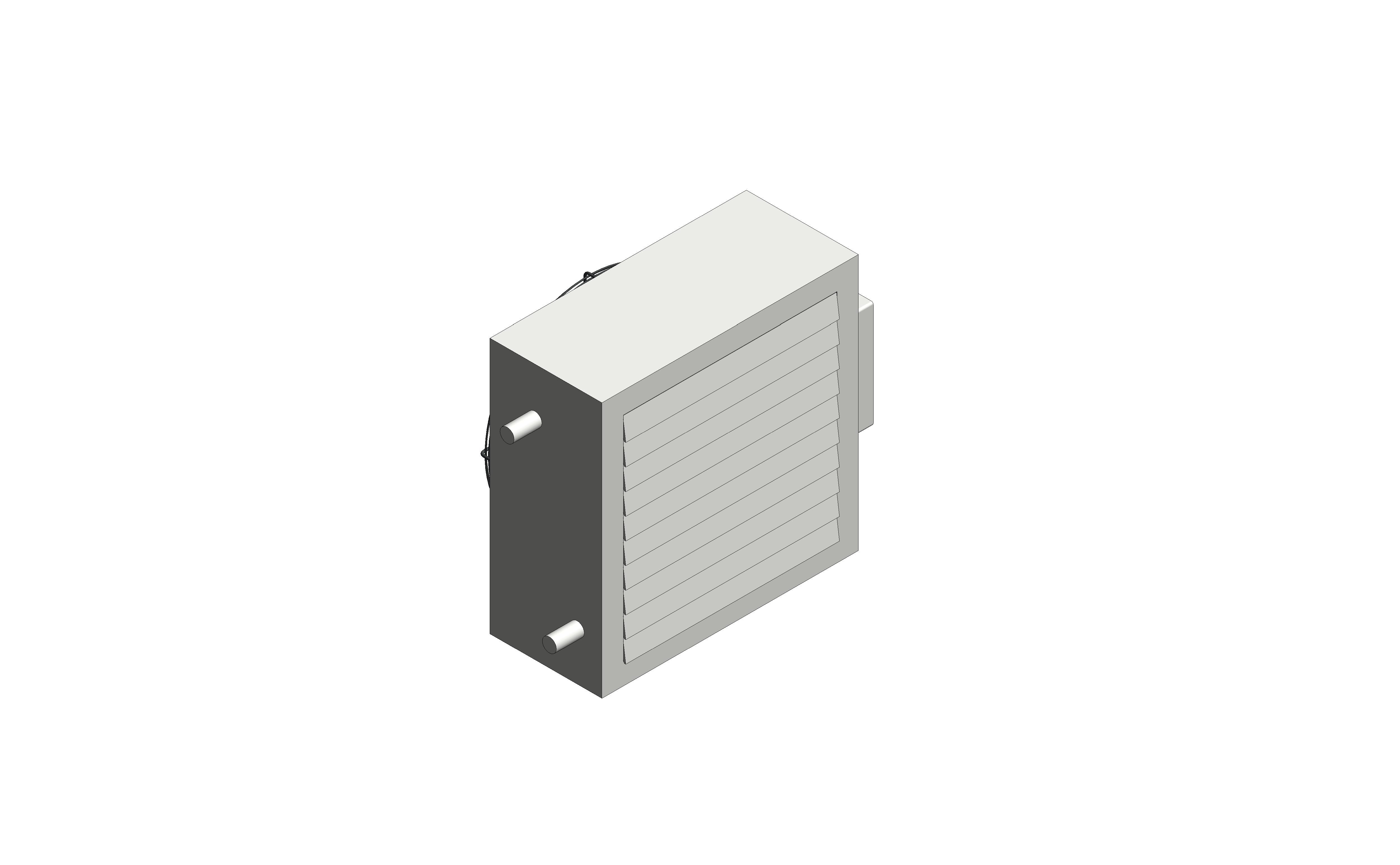

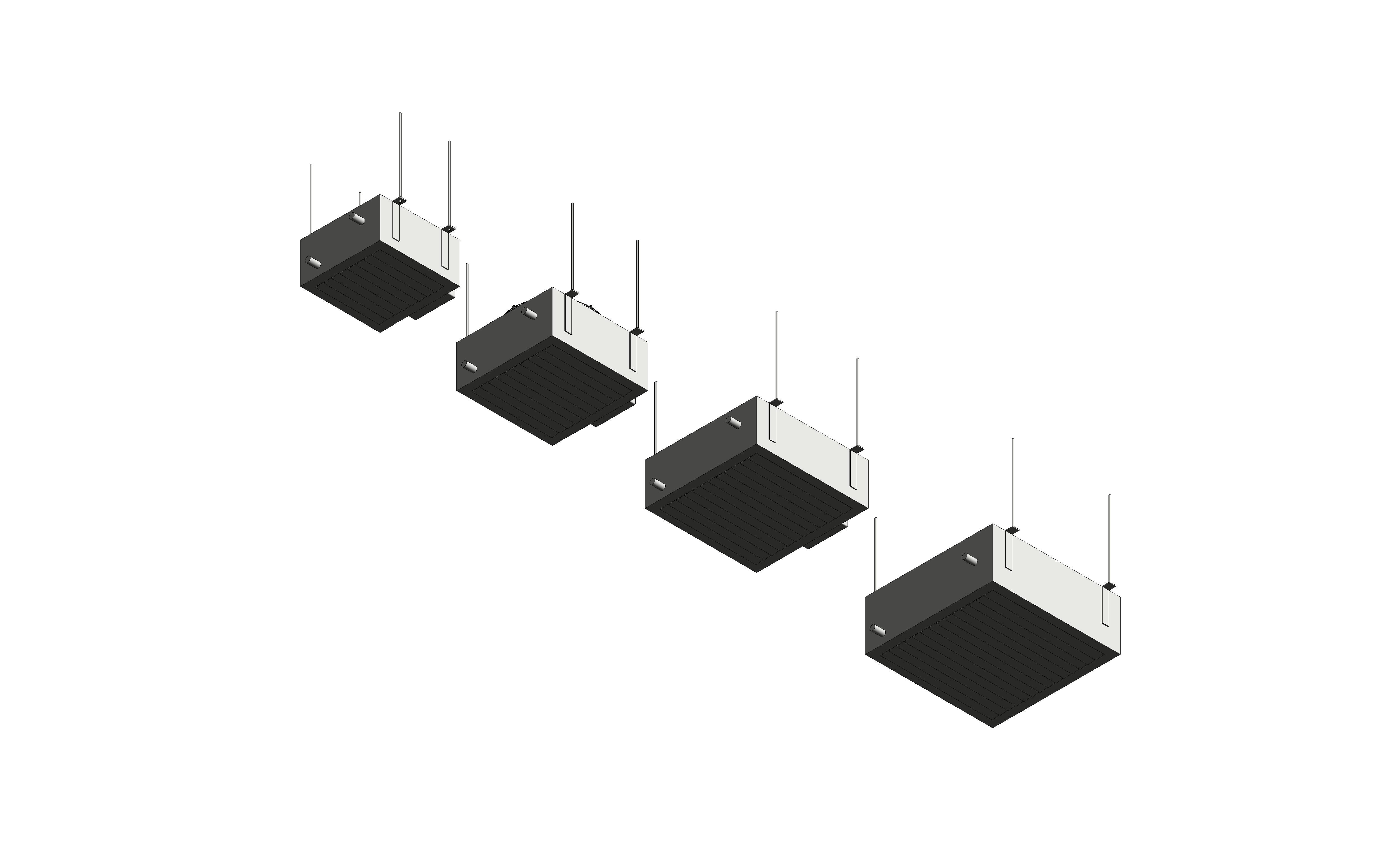

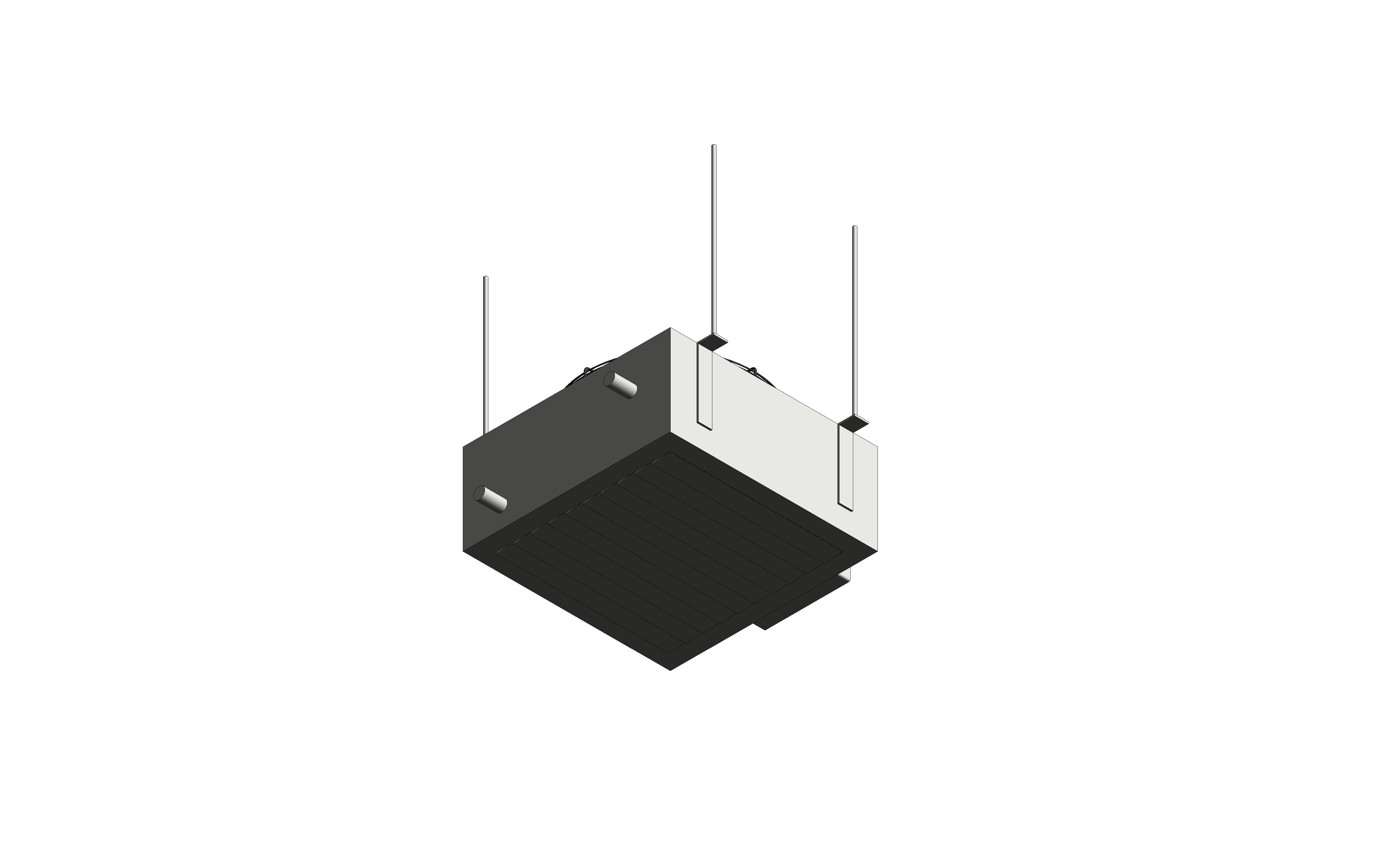

Horizontal unit heaters are intended for wall mounting and blow a jet horizontally through the angled discharge louvres towards the floor. Vertical units would normally hang from the ceiling on drop rods and blow a vertical jet downwards into the lower space. An optional 4 way louvre is available for vertical units.
