Chesil Pressurisation Unit - Floor Standing

  • Revit, BIM, Download, Free, Components, boiler, hamworthy, heating, mechanical, fixture, floor, standing, chesil, presurisation, unit
  • Revit, BIM, Download, Free, Components, boiler, hamworthy, heating, mechanical, fixture, floor, standing, chesil, presurisation, unit
  • Revit, BIM, Download, Free, Components, boiler, hamworthy, heating, mechanical, fixture, floor, standing, chesil, presurisation, unit
  • Revit, BIM, Download, Free, Components, boiler, hamworthy, heating, mechanical, fixture, floor, standing, chesil, presurisation, unit
  • Views 8.1k
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

-

Compliant

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

27/05/2016

Available for:
  • Logo: Autodesk Revit

Hamworthy's range of Chesil pressurisation units are designed to automatically maintain the minimum pressure requirements of modern low / medium temperature hot water sealed systems. They can also be used for the constant pressure requirements of chiller systems.

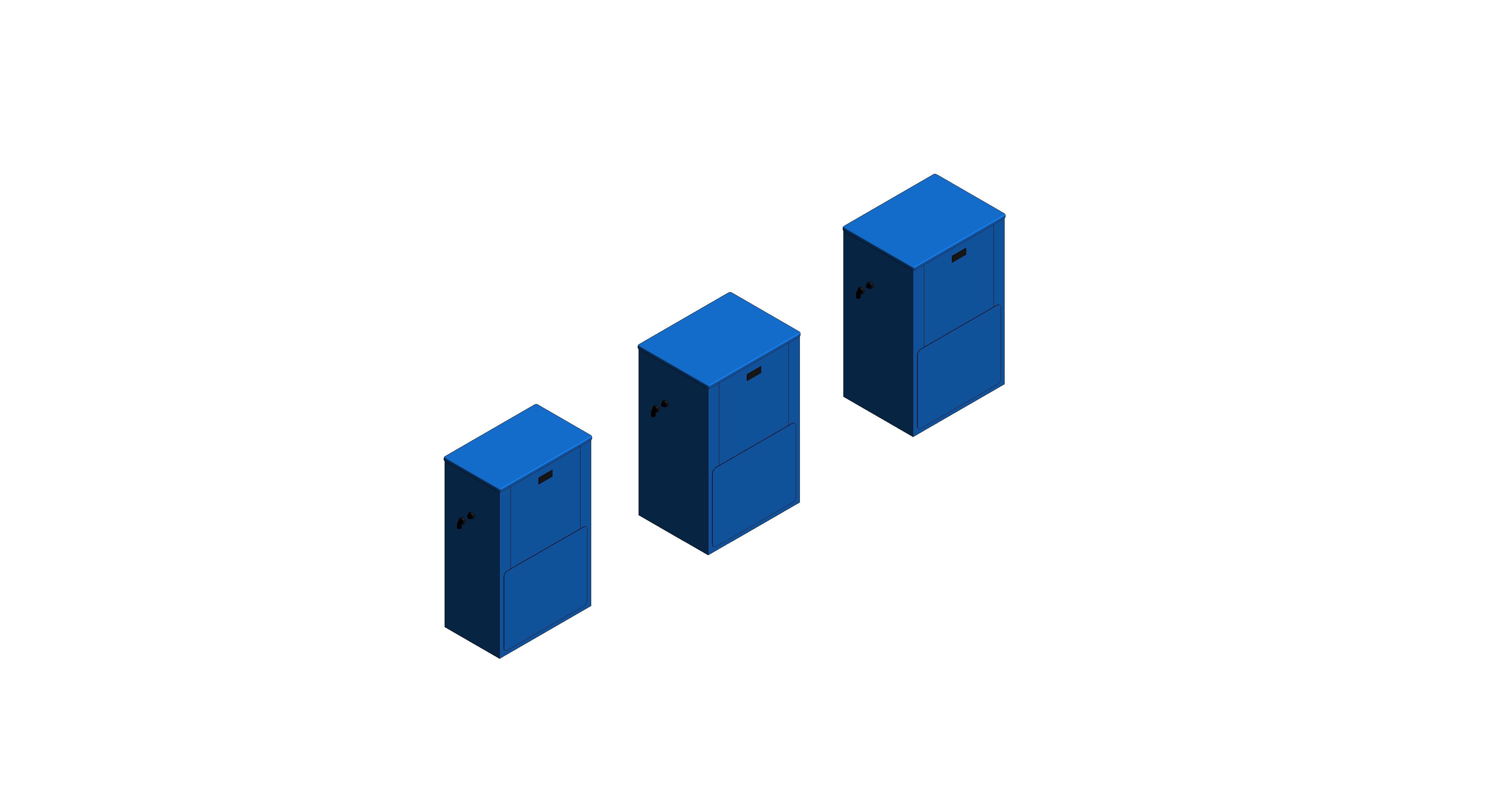

The floor standing range is designed to reduce space requirements and both models are extremely compact in size. The floor standing single pump models are available with standard or electronic controls. The floor standing twin (duty/standby) pump model is available with electronic controls only.

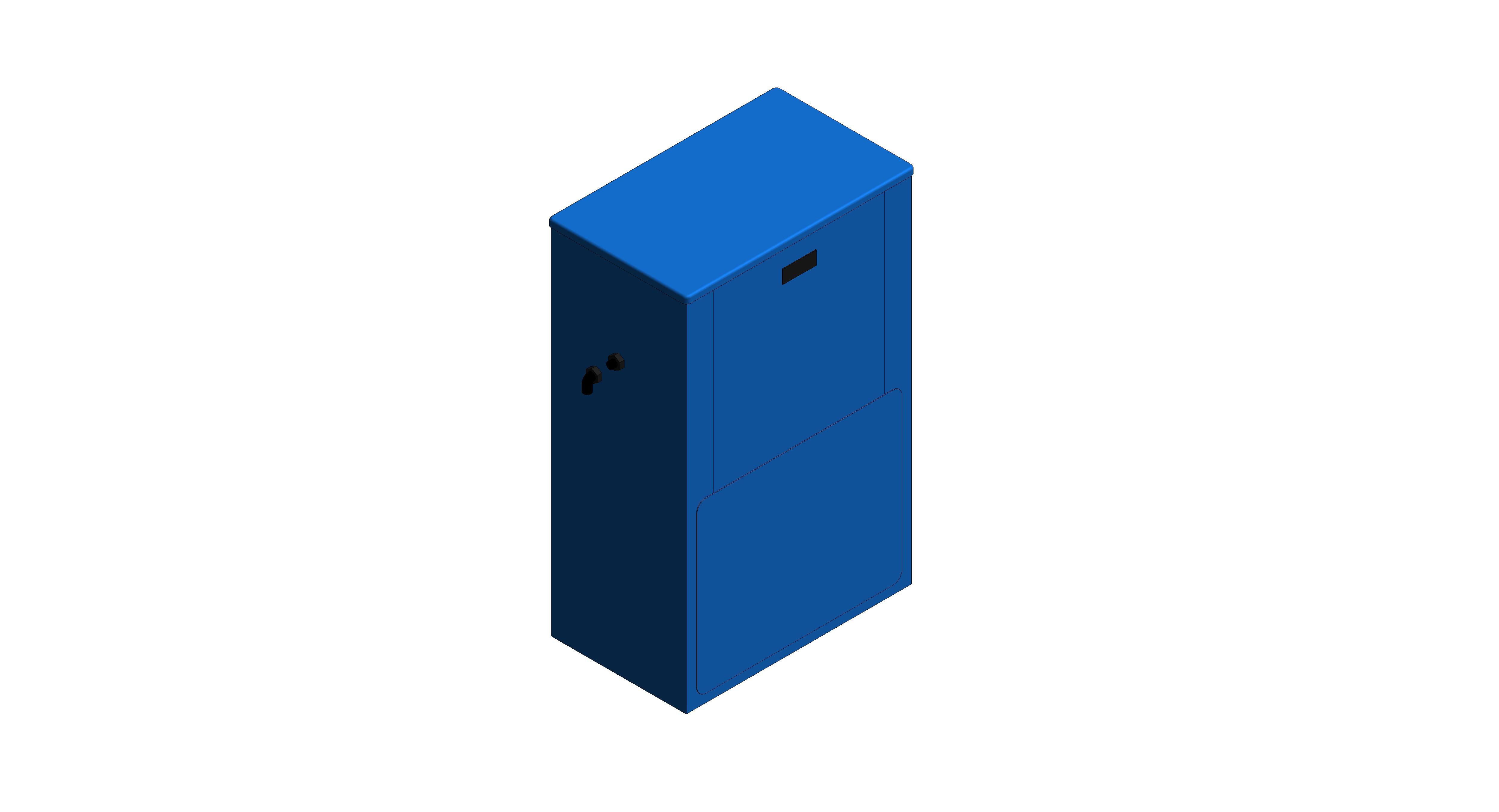

This download is a Chesil Presurisation Unit which has been built as a face based component created by bimstore.co.uk for Hamworthy Heating.

This component is created in Revit 2014 and is in line with 2015 industry standards.
