Cable Tray Systems

  • Revit, BIM, Store, Components, Architecture,, Object,Free,Download,voestalpine, metsec, cable, management, systems, tray, light, duty, medium, heavy, framing system, hot, dip, galvanised, pre, stainless, steel, 12mm, 18mm, 25mm, 50mm, electrical, fixtures, containment
  • Revit, BIM, Store, Components, Architecture,, Object,Free,Download,voestalpine, metsec, cable, management, systems, tray, light, duty, medium, heavy, framing system, hot, dip, galvanised, pre, stainless, steel, 12mm, 18mm, 25mm, 50mm, electrical, fixtures, containment
  • Revit, BIM, Store, Components, Architecture,, Object,Free,Download,voestalpine, metsec, cable, management, systems, tray, light, duty, medium, heavy, framing system, hot, dip, galvanised, pre, stainless, steel, 12mm, 18mm, 25mm, 50mm, electrical, fixtures, containment
  • Views 5.6k
  • Comments 0
  • Rating4.5 / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

CEN442

Compliant

COBie

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

26/02/2019

Available for:
  • Logo: Autodesk Revit
  • Logo: CAD
  • Logo: Industry Foundation Class

Metsec offer complete cable tray systems from 12mm to 50mm deep and 50mm to 900mm wide, all with a wide range of accessories.

Materials and finishes available are mild steel pre galvanised as standard with mild steel hot dip galvanisedafter manufacture and stainless steel grade 1.4404 (316L) to order.

Metsec cable trays generally conform to BS EN 61537:2007 "cable management - cable tray systems and cable ladder systems" and are fully supported by independent testing at the Department of Mechanical Engineering at the University of Strathclyde.

A full design service for the cable management range ensures the most cost effective solution is specified. Bespoke systems can be manufactured to order with prototypes produced quickly for sample approval.

This download includes the complete voestalpine Metsec plc Cable Tray Systems, and offers a range of various duty to match your project application, these include;

- 12/18mm Deep Range (Light Duty)

- 25mm Deep Range (Medium Duty)

- 50mm Deep Range (Heavy Duty)

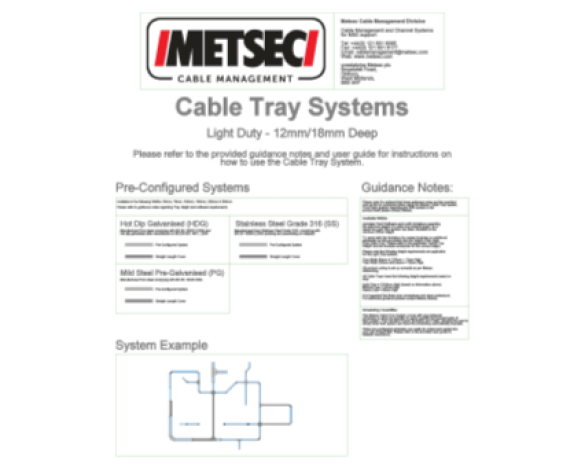

Please reference the user guide and guidance notes include in the download as how to use the Cable Tray System components.

Read more

Embed Product

To embed this product into any website simply copy and paste the code below.

Community comments

You might also like

CloseClose
