BLÜCHER® Blue Roof drain is a range of rainwater outlets and accessories. The blue roof drains can be used for all types of flat roofs with bitumen are equipped with a pre drilled standing pipe allowing excess water to flow unrestrictedly into the public sewage system. However, the right roof drains can retain water in case of heavy rain, thus reducing the load on the sewage system within the roof drain regulations. Combined with BLÜCHER® EuroPipe stainless steel push-fit pipework system provide a complete stainless steel roof drainage system.

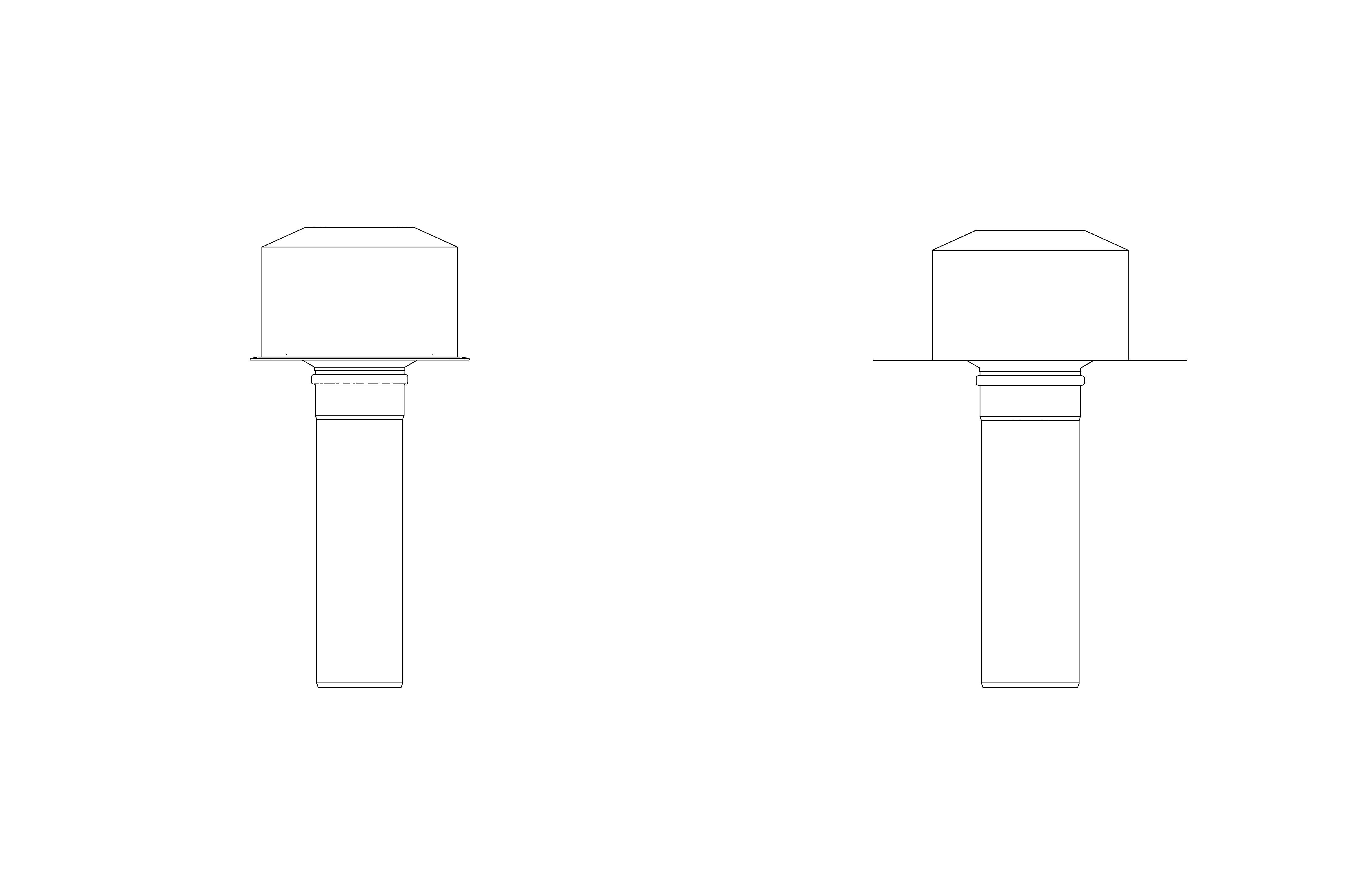

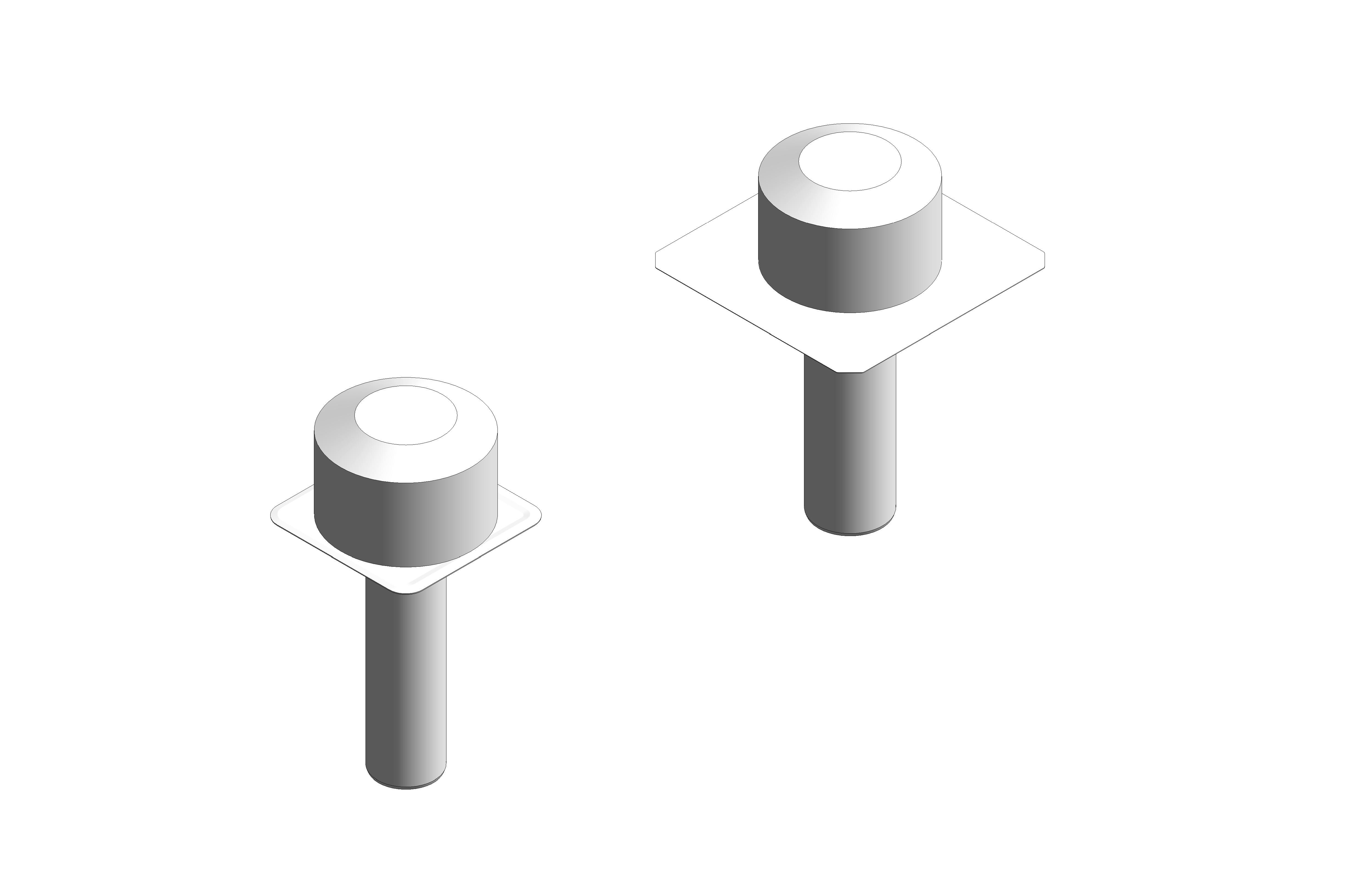

This download contains the BLÜCHER® Blue Roof Drain - 408 System with all parts and size:

Select the product(s) based on outside (visible) dimension, flow rate, and / or item number, to upload in your project.

  • system                               : Gravity
  • Connections                     : 125, 160 mm
  • Membrane type               : Bitumen,
  • Products                            : 400.000.005, 408.101.125, 408.101.160

BLÜCHER offers to carry out flow calculations and suggest design of the roof drainage system for projects with BLÜCHER® Drain Roof and BLÜCHER® EuroPipe. Enquiries can be submitted through,  call BLÜCHER at tel. +45 99 92 08 00 or the contact person on the front page of this download.
