Block Paving In-Ground Lighting

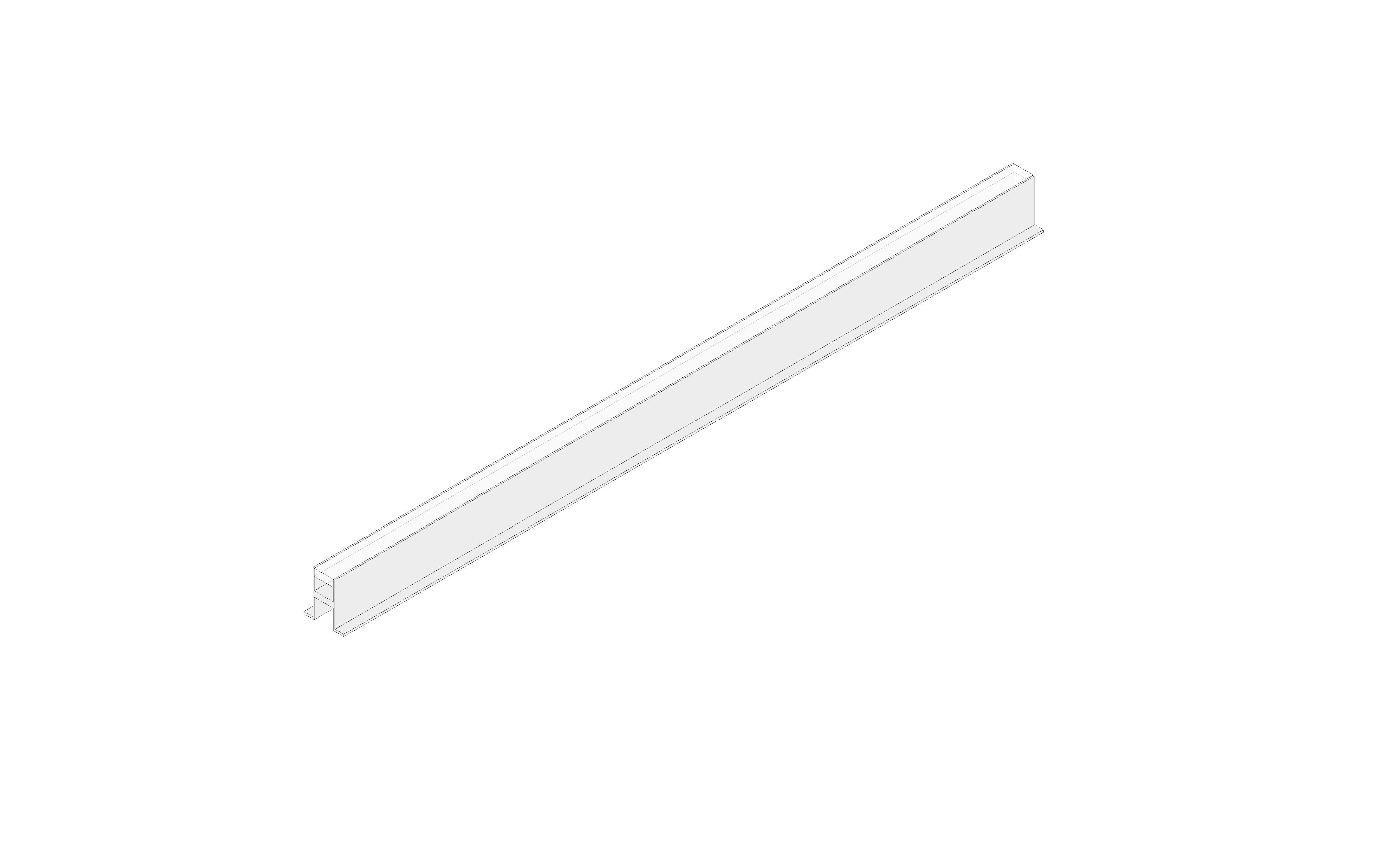

  • ISO

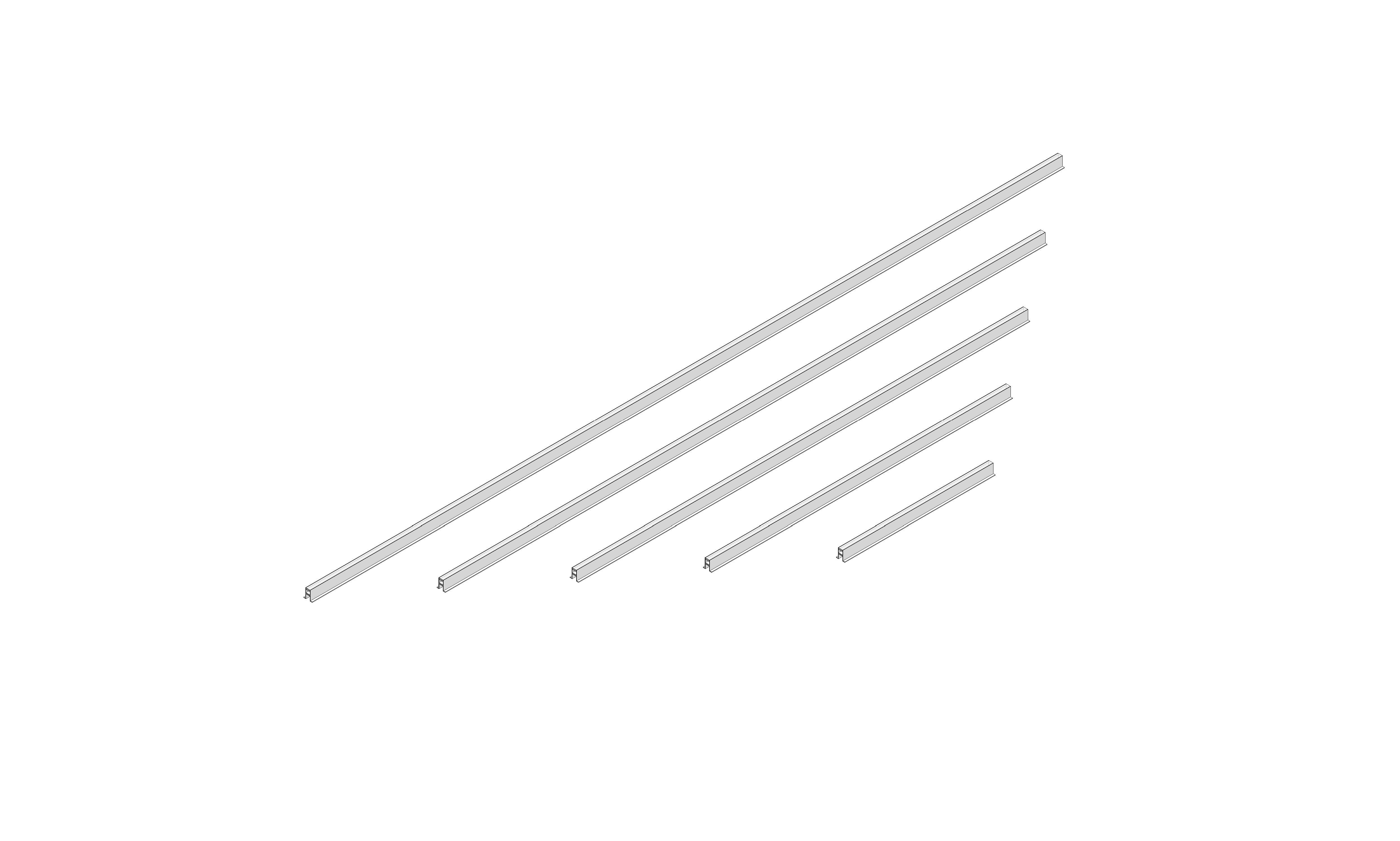

  • ISO_Range

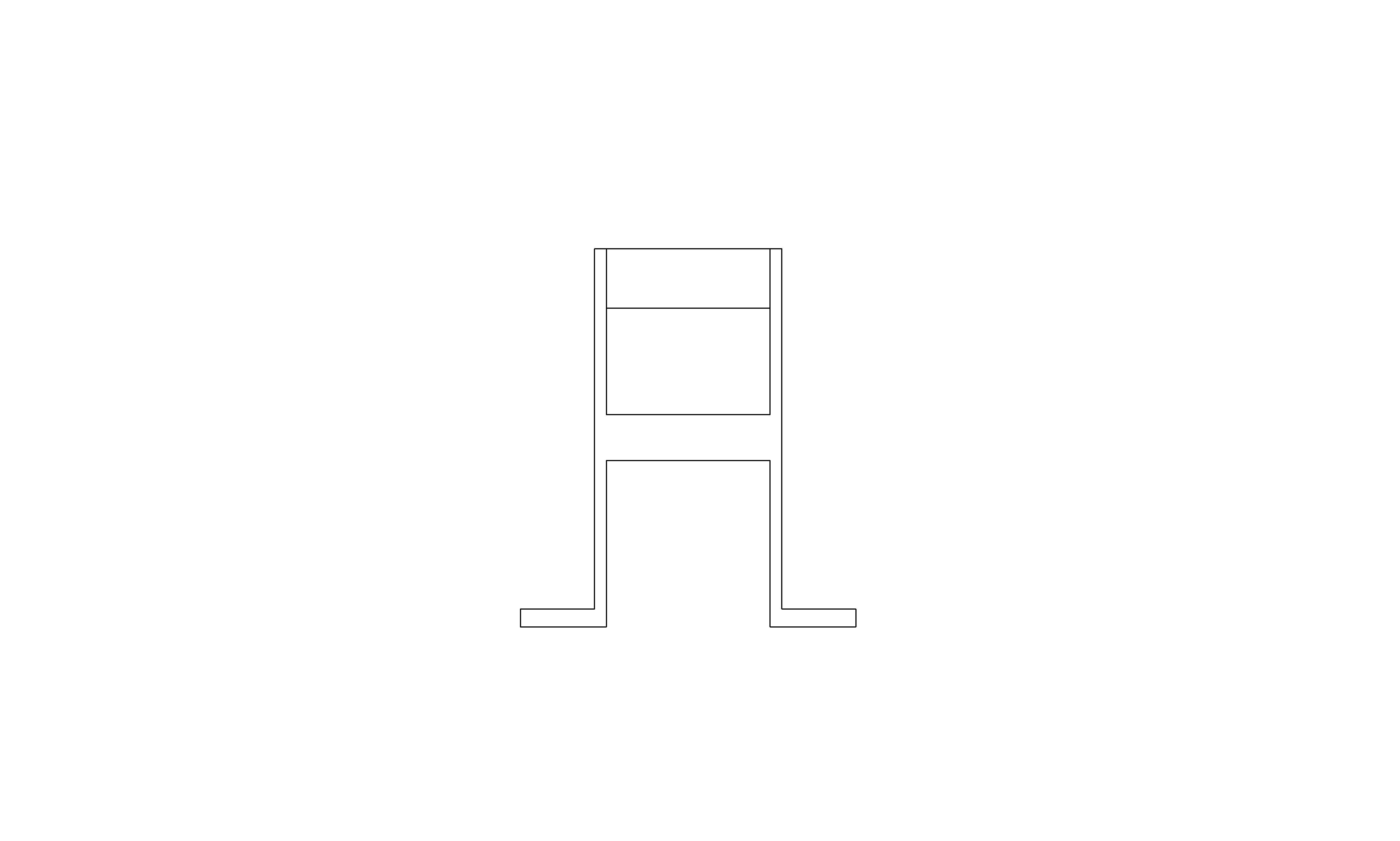

  • Side

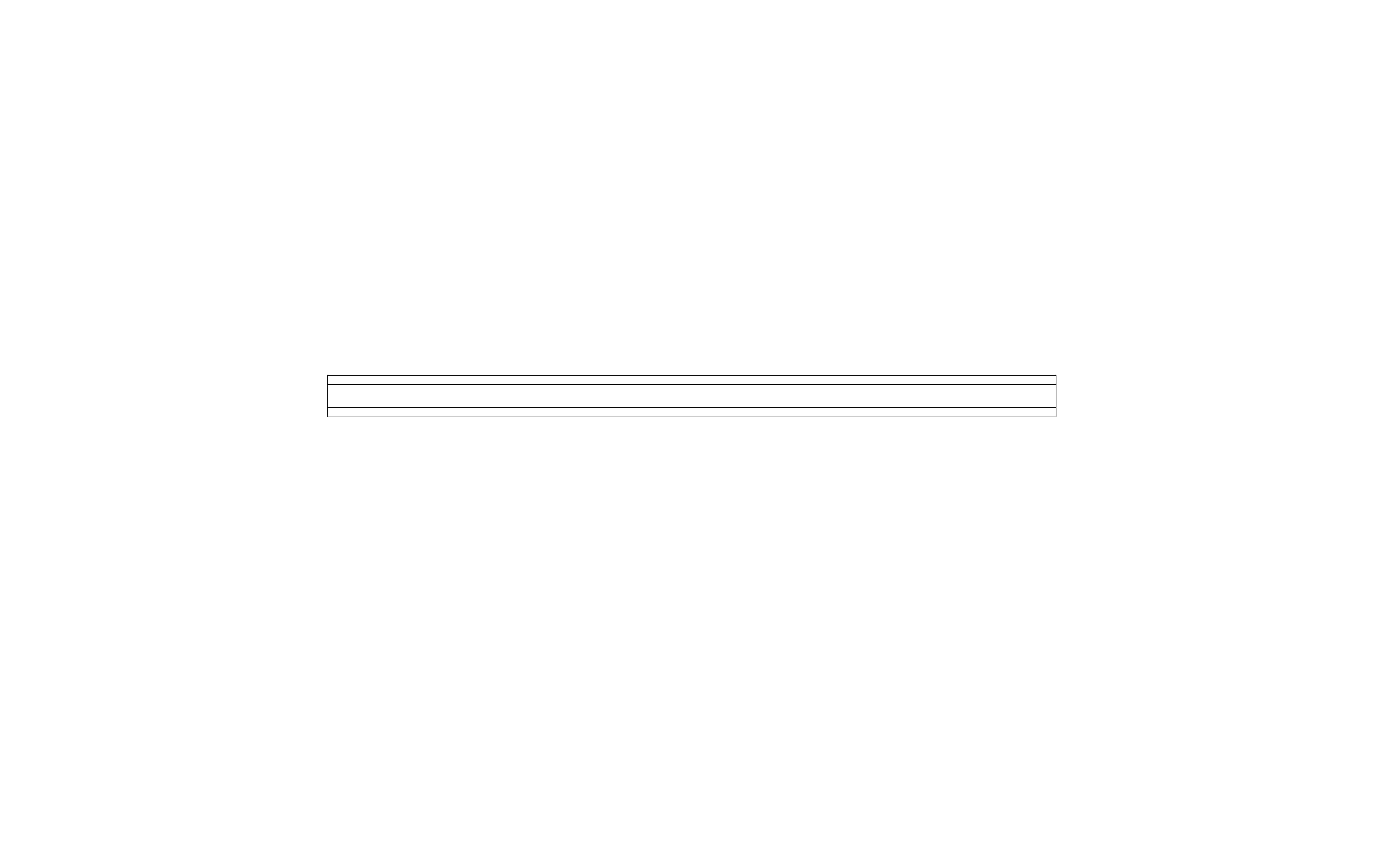

  • Top
  • Views 573
  • Comments 0
  • Rating- / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating





Object Data

1 Revision

Last Updated


Available for:
  • Logo: Autodesk Revit

Our IP67 LED recessed lighting is a completely waterproof solution for outdoor use, designed to be recessed into Block paving and Paving Slabs allowing for flush linear lighting that can be walked and driven over once installed

The system has been designed in two parts, the first part allows the aluminium channel to be inserted into the block paving or paving slabs while the driveway or patio is being constructed, the aluminium channel is bedded into the sand or mortar and the lower channel conceals the electrical cables.

Being modular the system is purchased in 1 metre sections, the profiles are then butted together to form an almost seamless appearance allowing multiple lengths to be placed together to form continuous runs

Once the block paving or patio has been finished the lighting can be pressed into position and terminated into the electrical connections

The design of the product allows for the client to create limitless shapes and accents for endless design capabilities.

Being IP67 recessed LED strip lighting is resistant to all cleaning solvents, including chlorine and salt water. IK10 meets the anti-theft requirements and damage resistant.

Our entire lamp with the ground base has passed the pressing resistant of 3000kg test to enable the product to be installed into the driveways.

We can provide the system in various colour temperatures, and RGBW colour changing with the system also having the facilities to add Amazon Alexa control or Google home assistance with third party hardware

Read more
