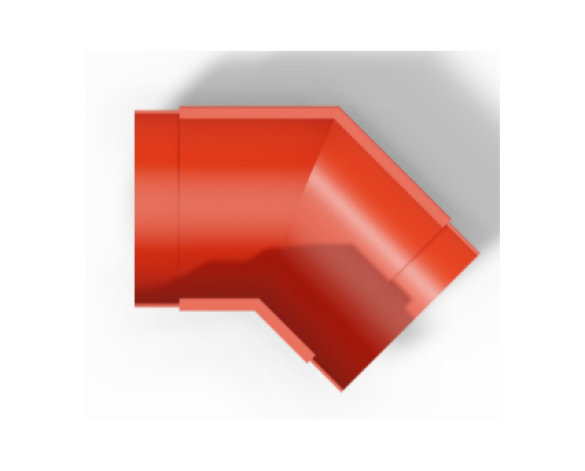

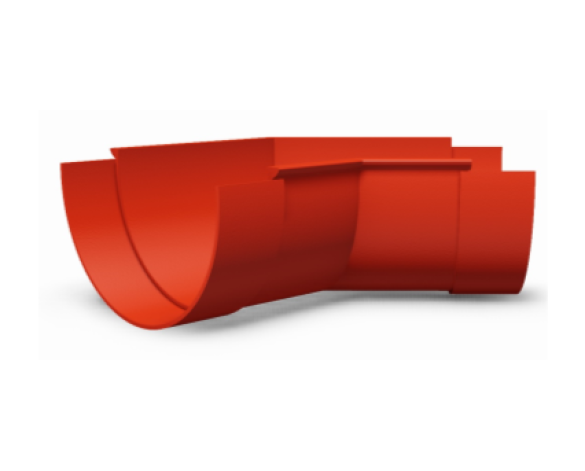

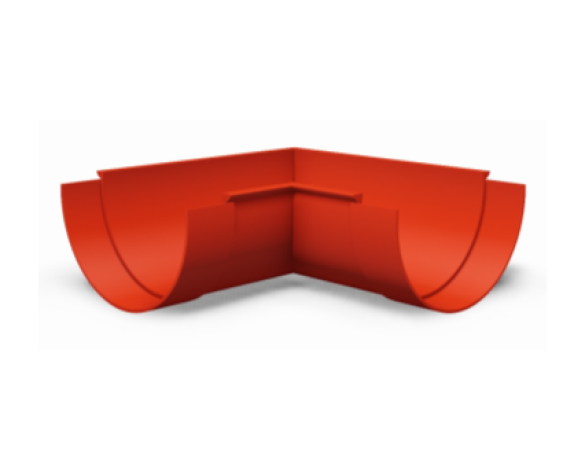

Beaded Deep Flow Gutter Corner

by Guttercrest

Download Add to collection

Description

Our Aluminium Beaded Deep Flow Gutters, also known as aluminium deep run gutters, are inspired by 19th Century cast iron guttering. They offer the beautiful traditional look of cast iron guttering with all the benefits of aluminium guttering, such as being lightweight, robust and long lasting.

Object Data

1 Revision

Last Updated

10/07/2018

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Product Data Sheet

Object metadata

_AuthorTechnical Dept
_Authorized ByIan Holmes
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.Guttercrest.co.uk
_Current Revision1
_Distributed Bywww.Bimstore.co.uk
Accessibility Performancen/a
Angle90.00 °
Assembly Coden/a
Asset TypeFixed
Available Colourswww.guttercrest.co.uk/images/lib/guttercrest-colour-chart.pdf
Bead7 mm
Bead Depth 13 mm
Bead Depth 29 mm
Bead Rad6 mm
BIM Object NameGuttercrest_SpecialtyEquipment_Gutter_BeadedDeepFlow_Angle
Classification NameUniclass2015
Classification ValuePR_65_50_35_06
Code Performancen/a
ColorAny RAL, BS or Heritage (Textured) Colour
ConstituentsIntegral Jointing straps
Created Byinfo@guttercrest
Created On2018-06-25T00:00:00
Default Elevation1000 mm
DescriptionOur Aluminium Beaded Deep Flow Gutters, also known as aluminium deep run gutters, are inspired by 19th Century cast iron guttering. They offer the beautiful traditional look of cast iron guttering with all the benefits of aluminium guttering, such as being lightweight, robust and long lasting.
Documentation Certificatesn/a
Documentation Installation Guidewww.guttercrest.co.uk/images/lib/Fixing-Guide---Aluminium-half-round-gutter_4.pdf
Documentation Literaturewww.guttercrest.co.uk/images/lib/Guttercrest-Aluminium-Beaded-Deep-Flow-Gutters---PRICE-LIST.pdf
Documentation Maintenancen/a
Documentation Technicalwww.ribaproductselector.com/Product.aspx?ci=3544&pr=Guttercrest-Aluminium-guttersBeaded-deepflow-gutters100mmbeadeddeepflowgutter
Duration UnitYear
Expected Life0
FeaturesGutters, Outlets, stopends & Downpipes
FinishMill Finish or Polyester Powder Coated
Grade1050
Gutter Depth59 mm
Gutter Rad50 mm
Gutter Size100 mm
Ifc Export AsAluminium Eaves Gutters
Ifc Export TypeIfcBuildingElement
Inner Rad48 mm
Is ExternalYes
KeynoteR10/350
Leg B50 mm
ManufacturerGuttercrest Limited
Manufacturer NameGuttercrest Limited
MaterialAluminium
Material GradeAluminum 1050
Material Thickness3 mm
ModelAdjustable Angle Section
Model NumberBDF1/3
Model ReferenceBeaded Deep Flow Gutter Angle
NBS DescriptionAluminium Eaves Gutter
NBS Object NameGuttercrest - Aluminium Eaves Gutter
NBS Office Master Tagn/a
NBS Reference90-05-35/320
Product Documentation Linkwww.guttercrest.co.uk/aluminium-cast-deep-flow-run-gutters-guttering-gutter.html
Production Year2018
Referenced StandardBS 9101:2017
Replacement Cost0
Spare Partsn/a
Type CommentsRecomended Angles 90°-135° And 225°-270°
Type NameAluminium Gutter Angle
URLwww.guttercrest.co.uk
Warranty Descriptioninfo@guttercrest
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYear
Warranty Guarantor Laborn/a
Warranty Guarantor Partsinfo@guttercrest
