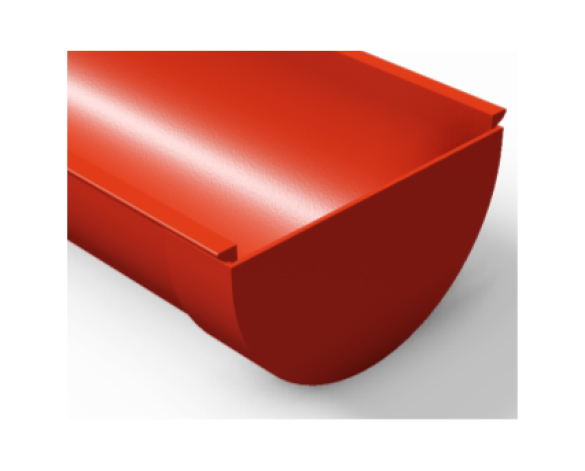

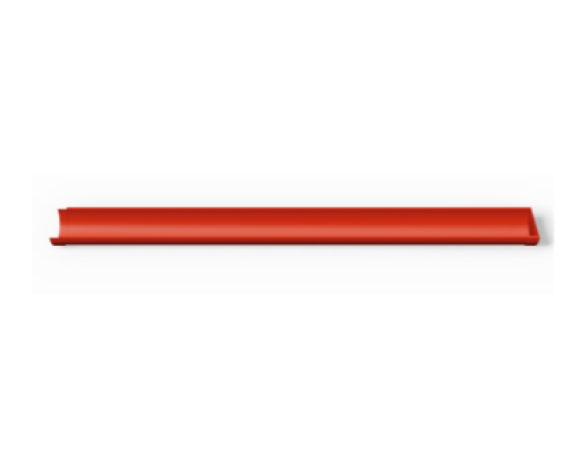

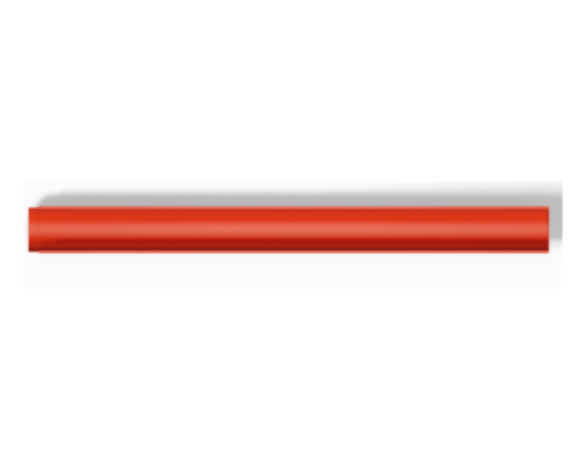

Beaded Deep Flow Gutter

Object metadata

• _AuthorTechnical Dept
• _Authorized ByIan Holmes
• _Bim Spec Guid0
• _BS Bible Version15
• _Created Bywww.Guttercrest.co.uk
• _Current Revision1
• _Distributed Bywww.Bimstore.co.uk
• Accessibility Performancen/a
• Assembly Coden/a
• Asset TypeFixed
• Available Colourswww.guttercrest.co.uk/images/lib/guttercrest-colour-chart.pdf
• Bead7 mm
• Bead Depth 13 mm
• Bead Depth 29 mm
• Bead Rad6 mm
• BIM Object NameGuttercrest_SpecialtyEquipment_Gutter_BeadedDeepFlow
• Bracket Offset9 mm
• Bracket Start150 mm
• Classification NameUniclass2015
• Classification ValuePr-65-50-35-06
• Code Performancen/a
• ColorAny RAL, BS or Heritage (Textured) Colour
• ConstituentsFascia Brackets
• Created ByInfo@Guttercrest.co.uk
• Created On2018-04-05T00:00:00
• Default Elevation1000 mm
• DescriptionOur Aluminium Beaded Deep Flow Gutters, also known as aluminium deep run gutters, are inspired by 19th Century cast iron guttering. They offer the beautiful traditional look of cast iron guttering with all the benefits of aluminium guttering, such as being lightweight, robust and long lasting.
• Documentation Certificatesn/a
• Documentation Installation Guidewww.guttercrest.co.uk/images/lib/Fixing-Guide---Aluminium-half-round-gutter_4.pdf
• Documentation Link URLwww.guttercrest.co.uk/aluminium-cast-deep-flow-run-gutters-guttering-gutter.html
• Documentation Maintenancen/a
• Documentation Technicalwww.guttercrest.co.uk/images/lib/guttercrest-aluminium-beaded-deep-flow-gutters_1.pdf
• Duration UnitYear
• Expected Life0
• FeaturesAngles, Stopends & Outlets
• FinishMill Finish or Polyester Powder Coated
• Gap 11 mm
• Grade1050
• Gutter Depth59 mm
• Gutter Offset5 mm
• Gutter Size100 mm
• Ifc Export AsAluminium Gutter System
• Ifc Export TypeIfcBuildingElement
• Is ExternalYes
• KeynoteR10/350
• ManufacturerGuttercrest Limited
• Manufacturer NameGuttercrest Limited
• MaterialAluminium
• Material Grade<By Category>
• ModelBeaded Deep Flow Gutter
• Model NumberBDF1 - 100mm
• Model ReferenceBeaded Deep Flow
• MTL3 mm
• NBS DescriptionAluminium Gutter System
• NBS Object NameGuttercrest - Aluminium Gutter System
• NBS Office Master Tagn/a
• NBS Reference90-05-35/320
• Production Year2018
• Referenced StandardBS 9101:2017
• Replacement Cost0
• Spare Partsn/a
• Type CommentsBDF1 Beaded Deep Flow Gutter
• Type NameAluminium Gutter System
• URLwww.Guttercrest.co.uk
• Warranty DescriptionInfo@Guttercrest.co.uk
• Warranty Duration Labor0
• Warranty Duration Parts0
• Warranty Duration UnitYear
• Warranty Guarantor Laborn/a
• Warranty Guarantor PartsInfo@Guttercrest.co.uk
