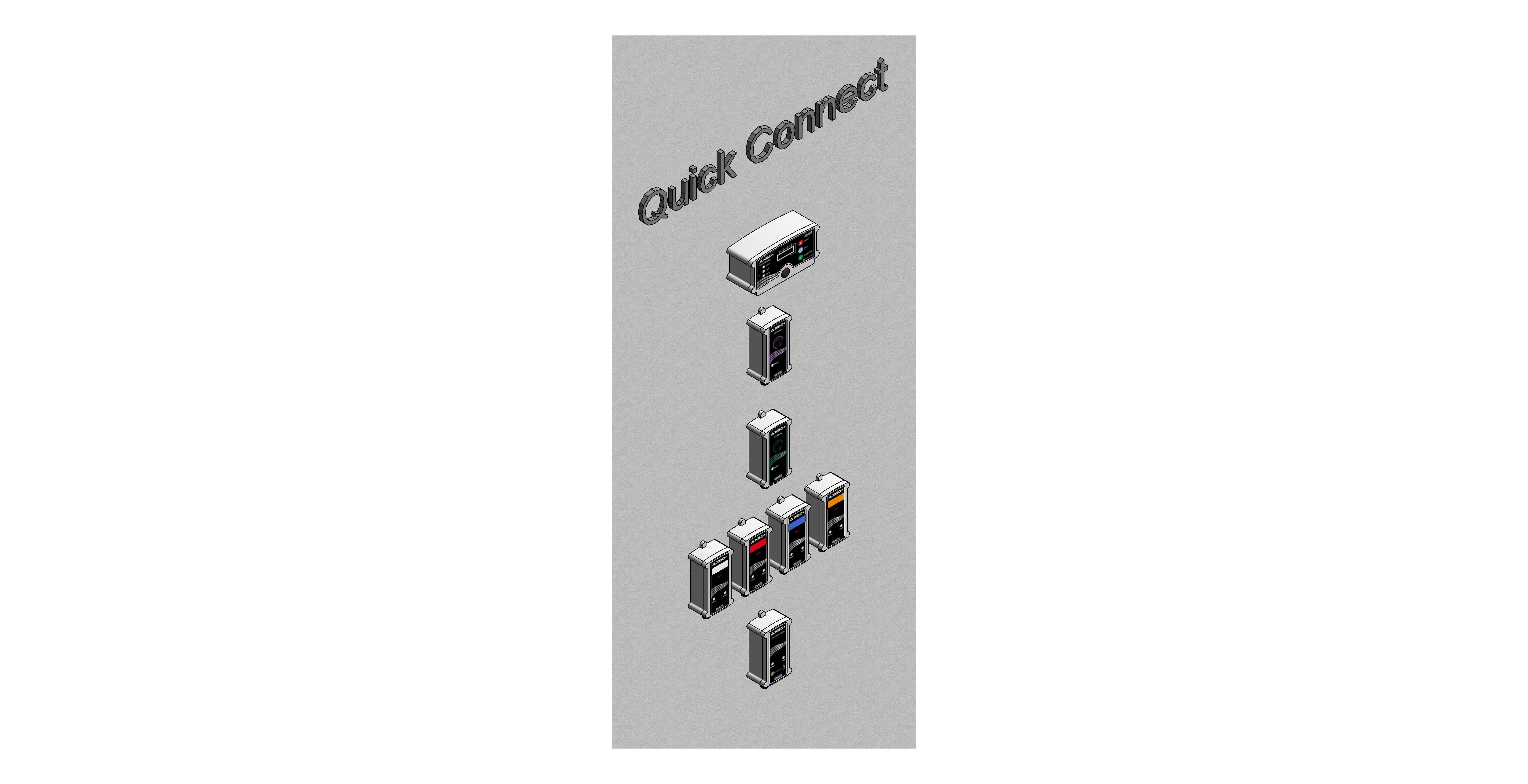

Ax60+ Multi Gas Safety Monitor - Quick Connect

by Analox Ltd

Download Add to collection

Description

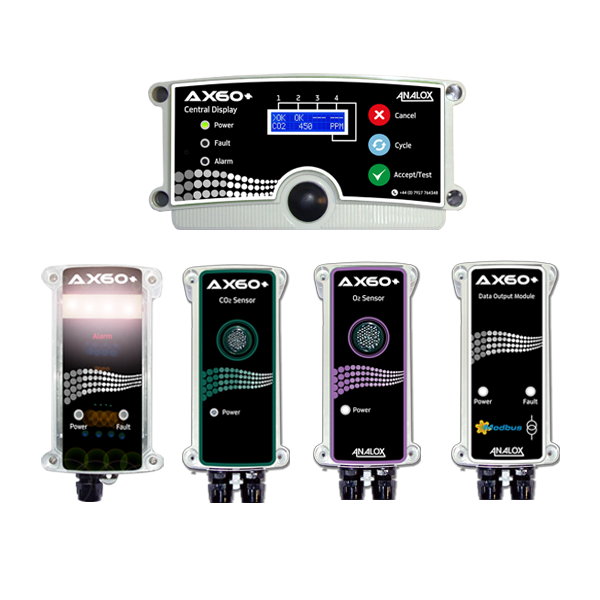

The Ax60+ is a wall-mountable multi gas monitor for detecting carbon dioxide with an option for monitoring oxygen.

Based on the popular Ax60 CO2 detector, the new Ax60+ multi gas monitor offers the additional functionality of being able to add modular sensors, creating a fully flexible solution.

Object Data

1 Revision

Last Updated

04/02/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Object User Guide

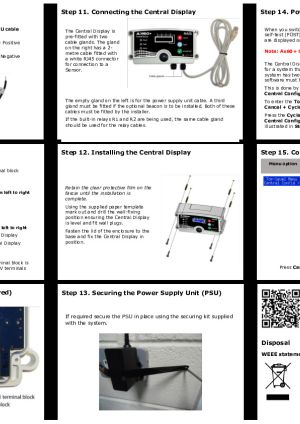

Installation Guide

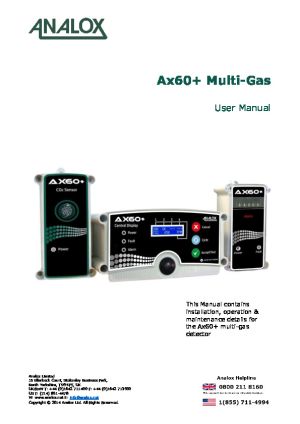

Product Literature

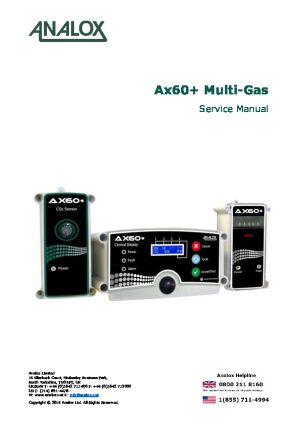

Maintenance Information

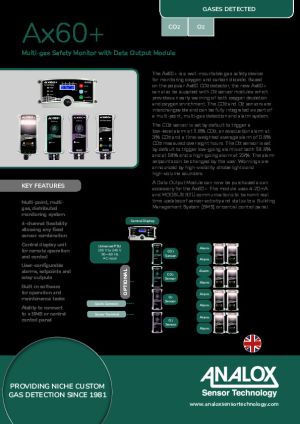

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co.uk
_Current Revision1
_Distributed Bywww.bimstore.co.uk
_Object User Guidewww.bimstore.co/product/9eb54a20-89de-47e8-8cf0-c757ee2c1566/document/443618bd-e4ad-4a84-b5e8-823b61390001/download
Accessibility Performancen/a
Assembly CodeD5030800
Asset TypeFixed
BIM Object NameAnalox_MultiGasSafetyMonitor_Ax60+_Alarm_QC
Classification NameUniclass2015
Classification ValuePr_75_50_18_33
Code Performancen/a
ColorAmber
Constituents4 Channel flexibility
Created Byanaloxbim@analox.net
Created On20-01.2019 T09:00:00
Default Elevation1219 mm
DescriptionThe Ax60+ is a wall-mountable gas safety device for monitoring oxygen and carbon dioxide. Based on the popular Ax60 CO2 detector, the new Ax60+ can also be supplied with O2 sensor modules which provides an early warning of both oxygen depletion and oxygen enrichment. The CO2 and O2 sensors are interchangeable and can be fully integrated as part of a multi-point, multi-gas detection and alarm system.
Documentation Certificateswww.analoxsensortechnology.com
Documentation Installation Guidewww.bimstore.co/product/2f0364c7-7429-4e21-90ff-d8198bce9264/document/a0cadddc-b823-4166-8d91-b68e2e9e6385/download
Documentation Literaturewww.bimstore.co/product/9eb54a20-89de-47e8-8cf0-c757ee2c1566/document/166ac27d-1765-4ed0-bd0e-665877e56ef2/download
Documentation Maintenancewww.bimstore.co/product/9eb54a20-89de-47e8-8cf0-c757ee2c1566/document/9ea3c03a-5d13-45a2-9668-ea69c42c9683/download
Documentation Technicalwww.bimstore.co/product/9eb54a20-89de-47e8-8cf0-c757ee2c1566/document/e212e8c0-c73c-4c8b-899e-dbf0f573c3bb/download
Duration UnitYears
Expected Life0
Features4-channel flexibility allowing any fixed sensor combination. Central display unit for remote operation and control. User-configurable alarms, setpoints and relay outputs. Built-in software for operation and maintenance tasks.
Finishn/a
Graden/a
Ifc Export AsGasDetector
Ifc Export TypeIfcAlarmType
KeynoteW
ManufacturerAnalox
Manufacturer NameAnalox
MaterialPlastic
Material CaseAnalox_Case
Material DisplayAnalox_Alarm_Face_Amber
Material FaceAnalox_Alarm_StrobeAmber
ModelAx60+ Alarm - Amber Strobe QC
Model NumberMulti Gas Safety Monitor - Quick Connect
Model ReferenceAx60+ Alarm - Amber Strobe QC
NBS DescriptionFixed gas detector control panels
NBS Object NameAnalox - Gas detection control panels
NBS Office Master Tagn/a
NBS Reference90-75-45/310
Nominal Depth45 mm
Nominal Height132 mm
Nominal Length72 mm
Offset0 mm
Part NumberAX60RQYDA
Production Year2019
Recommendations1 alarm per entrance door to hazardous area, risk assessment should be performed to confirm
Referenced StandardCE, EN50270, IEC 61010 (UL), DIN 6653 (TUV)
ShapeRectangle
Size132x72x45mm
Spare Partsn/a
Type CommentsMulti Gas Safety Monitor - Quick Connect
Type NameMulti Gas Safety Monitor - Quick Connect
URLwww.analoxsensortechnology.com/
Warranty Descriptionn/a
Warranty Duration Laborn/a
Warranty Duration Parts5
Warranty Duration UnitYears
Warranty Guarantor Laboranaloxbim@analox.net
Warranty Guarantor Partsanaloxbim@analox.net

Sustainability & Environmental Data

Not available.

Environmental Product Declarations

There are no EPDs.
