Aqua-Dec Linear 4 wetroom floor former features four gradients to assist flow to the linear drain and has a stylish 40mm wide stainless steel linear drain to create a more defined finish and allow for a higher water flow rate - ideal for use with the most powerful showers with body jets.
Features and benefits
4 way fall consistent gradientEasy to install - no special skills required
22mm thickSame depth as most commonly used flooring
High flow rates of up to 42 litres per minuteEasily copes with modern power showers
StrongMade from multi-layer GRP with solid core
Adjustable drain outlet position can be rotated 180°To avoid obstructions such as floor joists
Supplied with choice of vertical or horizontal linear flow drainAssists with alignment to existing pipework
Height adjustable tiling frameCaters for different tile thicknesses
Full install guide, fixings and screws suppliedInstall straight out of the box
Lifetime GuaranteeAs standard across all Impey wetroom trays and waterproofing

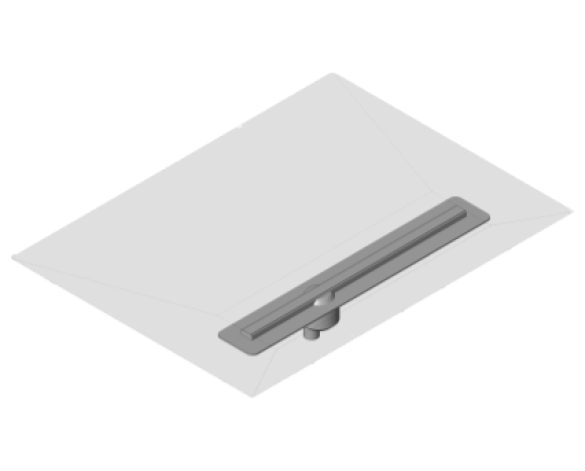

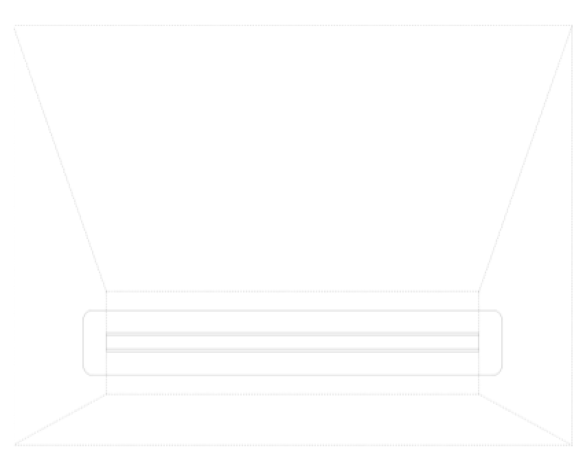

This download contains the Aqua-Dec Linear 4 which was created by Impey Showers Limited.
This component is created in Revit 2015 for use in MEP systems and is in line with 2015 industry standards.Read more
