Aqua Channel System

  • Views 3.7k
  • Comments 0
  • Rating1 / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

CEN442

Compliant

COBie

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

07/10/2015

Available for:
  • Logo: Autodesk Revit

Cavity drain systems manage water that penetrates the external structure and direct it to a suitable discharge point. There is permanent reliance on the cavity to collect groundwater and therefore a need for access points to allow the system to be maintained. Consideration must also be given to the impact of free lime from new concrete construction. A suitable anti-lime coating such as Triton Concrete Sealer should be applied to the structure before installation of the Platon cavity drain system to avoid obstruction to the drainage system and pumps.

This download contains a profile component and a Project file containing a Curtain Wall System for the Triton Aqua Channel and User Guide created by bimstore.co.uk for Triton Systems.

This component is created in Revit 2013 and is in line with 2015 industry standards.

Read more

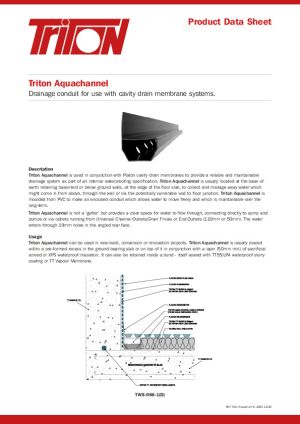

Accompanying literature

Accompanying literature coming soon.
