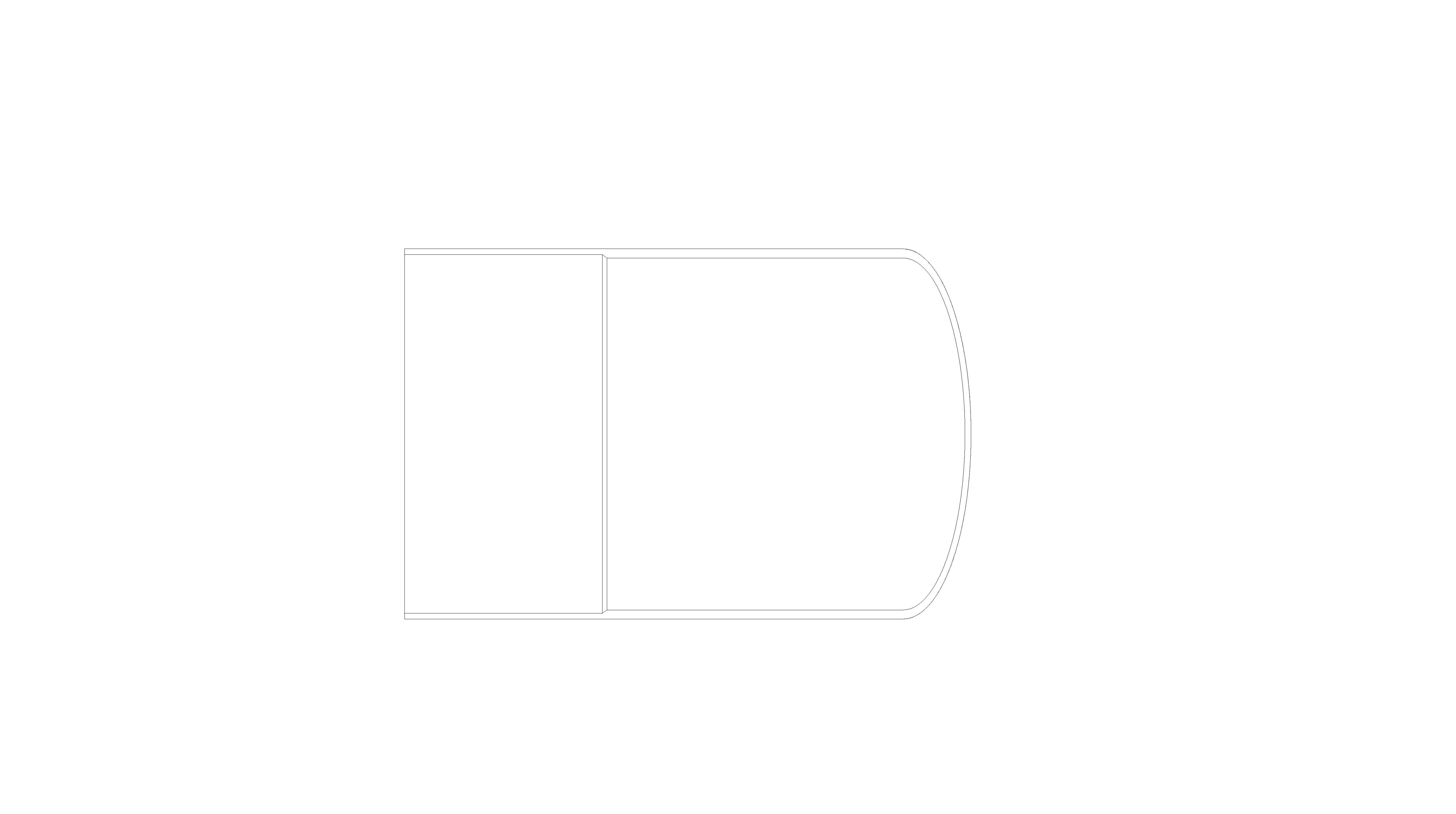

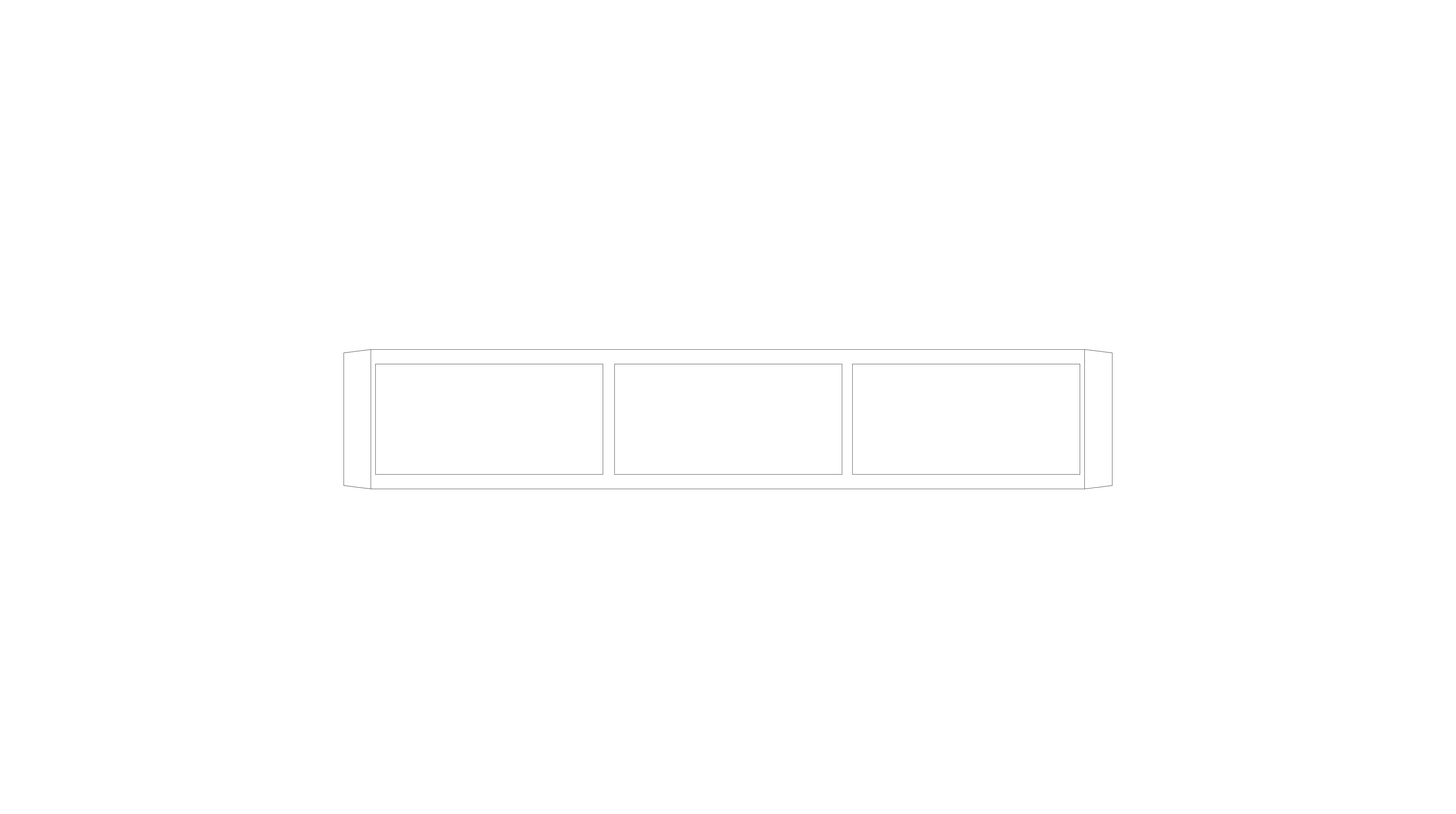

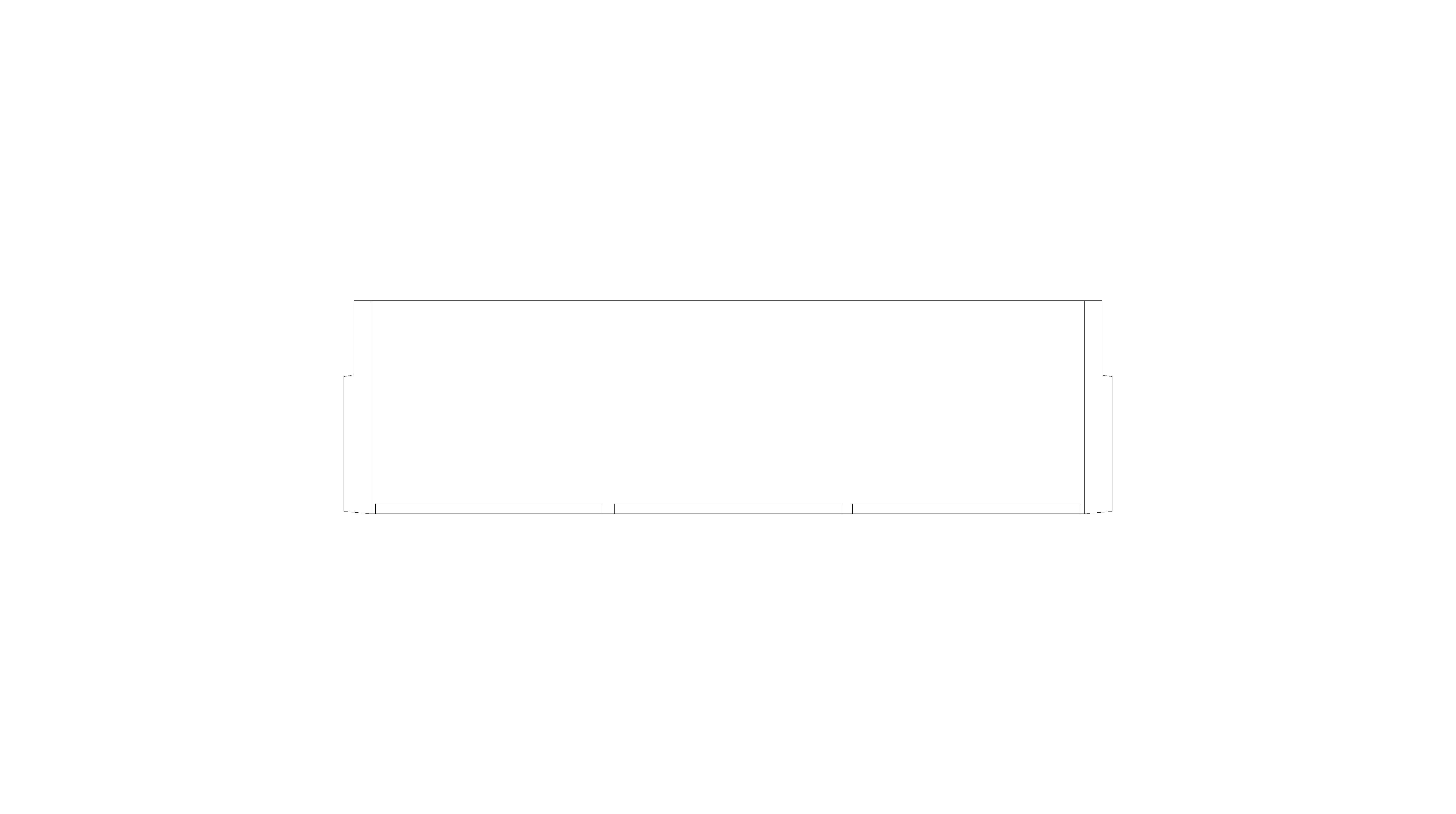

Air Curtain - HP Series - Surface Mounted

Description

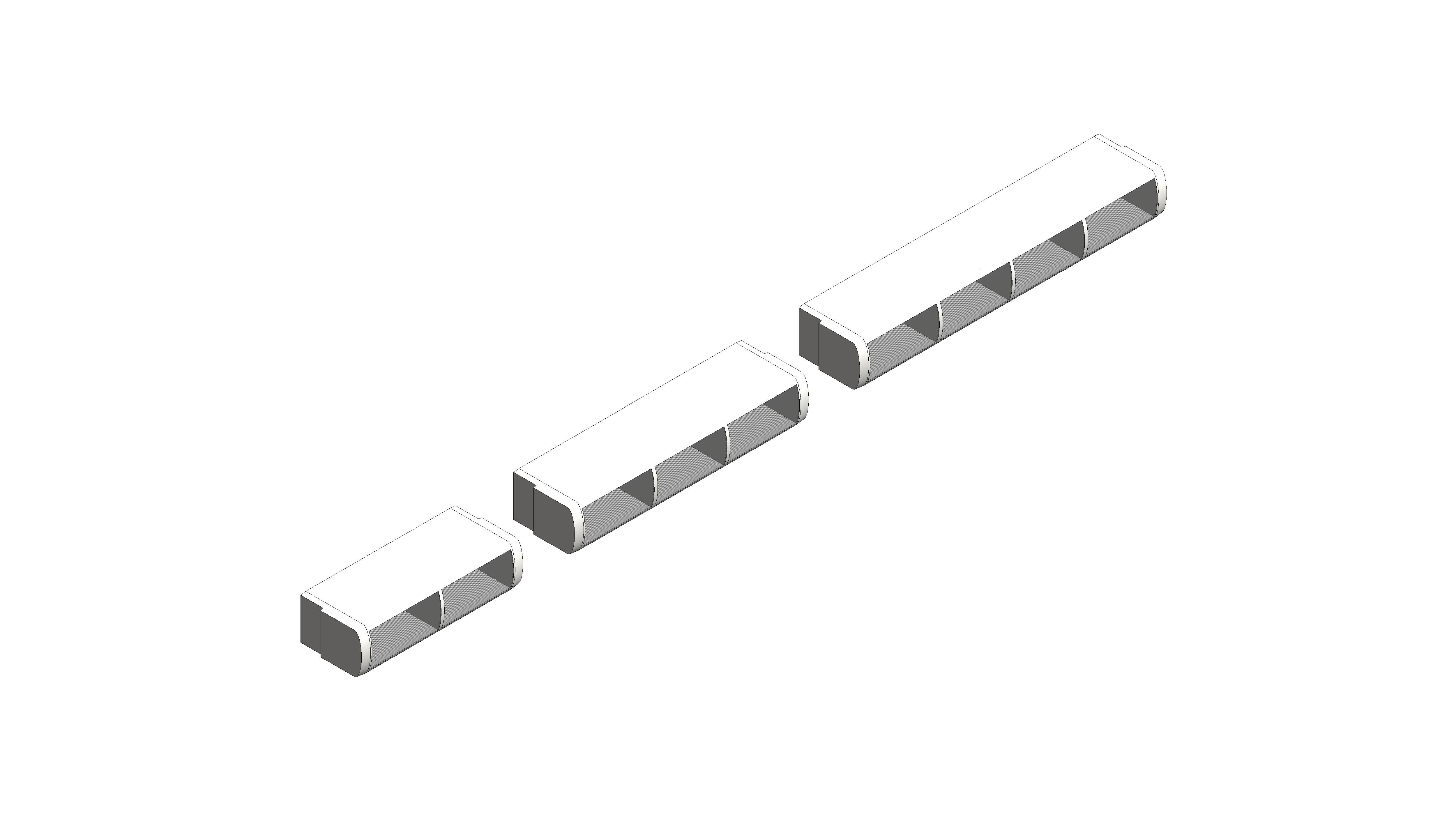

Powerful and very energy efficient, Thermoscreens HP air curtains deliver a heat output of up to 24kW at an air velocity of eight meters per second. Multiple units can be joined together to cover wider openings, with up to eight units being operated from a single Ecopower control unit.

Object Data

1 Revision

Last Updated

08/06/2022

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

Installation Guide

Product Literature

Object metadata

_AuthorAM
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
_Object User Guidewww.bimstore.co/products/air-curtain-hp-series-surface-mounted/document/object-user-guide
A1164.00 mm
Accessibility Performancen/a
Assembly CodeD3090400
Asset TypeFixed
B750.00 mm

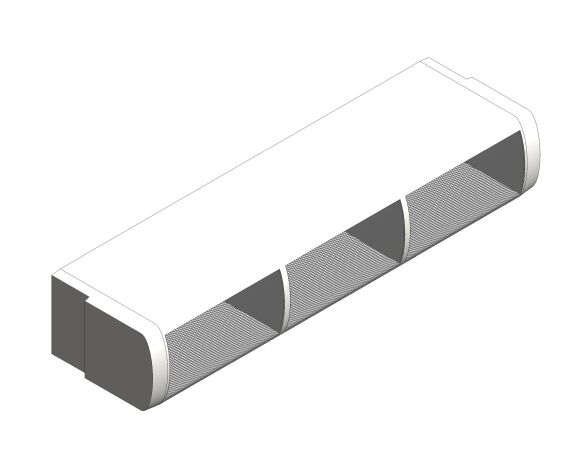

BIM Object NameThermoscreens_MechanicalEquipment_AirCurtains_HPSeries_HP1000A
C100.00 mm
Classification NameUniclass2015
Classification ValuePr_70_60_36_02
Code Performancen/a
ColorRAL 9016
Constituentsn/a
Created Bysales@thermoscreens.com
Created On2022-01-20 T09:00:00
D900.00 mm
Default Elevation3000.00 mm
Depth306.00 mm
DescriptionPowerful and very energy efficient, Thermoscreens HP air curtains deliver a heat output of up to 24kW at an air velocity of eight meters per second. Multiple units can be joined together to cover wider openings, with up to eight units being operated from a single Ecopower control unit.
Documentation Certificateswww.bimstore.co/products/air-curtain-hp-series-surface-mounted/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/air-curtain-hp-series-surface-mounted/document/installation-guide
Documentation Literaturewww.bimstore.co/products/air-curtain-hp-series-surface-mounted/document/product-literature
Documentation Maintenancewww.bimstore.co/products/air-curtain-hp-series-surface-mounted/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/air-curtain-hp-series-surface-mounted/document/technical-data-sheet
Duration UnitYear
E100.00 mm
Expected Life0
F128.00 mm
Features- High air velocity - eight meters per second - Ambient, water heated or electric heated - Surface mounted - Ecopower energy saving controls (water heated and electrics heated units) - ErP compliant and BMS ready - Heating coils options for low or high-grade water temperatures (60°C to 90°C) - Heat output up to 24kW - Single control unit operates up to eight units - Water heated units units supplied with a motorised three-port valve - Filters supplied as standard - Downrated single phase output (electric units) - Supplied with wall brackets as standard - Ceiling fixings provided (excluding drop-rods) - Joining kits available for connecting surface mounted units
Finishn/a
Graden/a
Grille 3 Length10.00 mm
Grille 3 Offset100.00 mm
Grille 3 VisibilityNo
Grille 3 Void Offset247.00 mm
Grille 4 Length10.00 mm
Grille 4 Offset100.00 mm
Grille 4 VisibilityNo
Grille 4 Void Offset287.00 mm
Heat Outputn/a
Height468.00 mm
Ifc Export AsIfcUnitaryEquipmentType
Ifc Export TypeAIRCONDITIONINGUNIT
KeynoteU
Length1164.00 mm
Loading Per Phase1.1 A
ManufacturerThermoscreens
Manufacturer NameThermoscreens
Materialn/a
Maximum Air Volume2000 m3/h
Maximum Velocity8.0 m/s
ModelHP1000A
Model NumberHP1000A
Model ReferenceThermoscreens HP Series Air Curtain
NBS DescriptionAir curtains
NBS Noten/a
NBS Object NameThermoscreens - Air curtains
NBS Office Master Tagn/a
NBS Reference90-40-35/310
Noise Output-High57 dB(A) @3m
Noise Output-Low52 dB(A) @3m
Noise Output-Medium54 dB(A) @3m
Nominal Depth306.00 mm
Nominal Height468.00 mm
Nominal Length1164.00 mm
Production Year2022
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size1164 x 468 x 306mm
Spare PartsMaster and slave lead: 3M + coupler [T5951110]; 6M Extension cable + coupler [T5951111]; 10M Extension cable + coupler [T5951112]; 15M Extension cable + coupler [T5951113]; 30M Extension cable + coupler [T5951114]; Extension lead coupler [T5951030]; Filters (Water/Ambient) [T7402520]; Joining kit [T7308210].
Supply230V~1P&N
Type CommentsThermoscreens HP Series Air Curtain
Type NameThermoscreens HP Series Air Curtain
Type Of HeatingAmbient
URLthermoscreens.com/
Warranty Descriptionn/a
Warranty Duration Labor2
Warranty Duration Parts2
Warranty Duration UnitYear
Warranty Guarantor Laborsales@thermoscreens.com
Warranty Guarantor Partssales@thermoscreens.com
Water Flown/a
Water Pressure Drop(Coil)n/a
Water Pressure Drop(Valve)n/a
Weight36.00 kg
