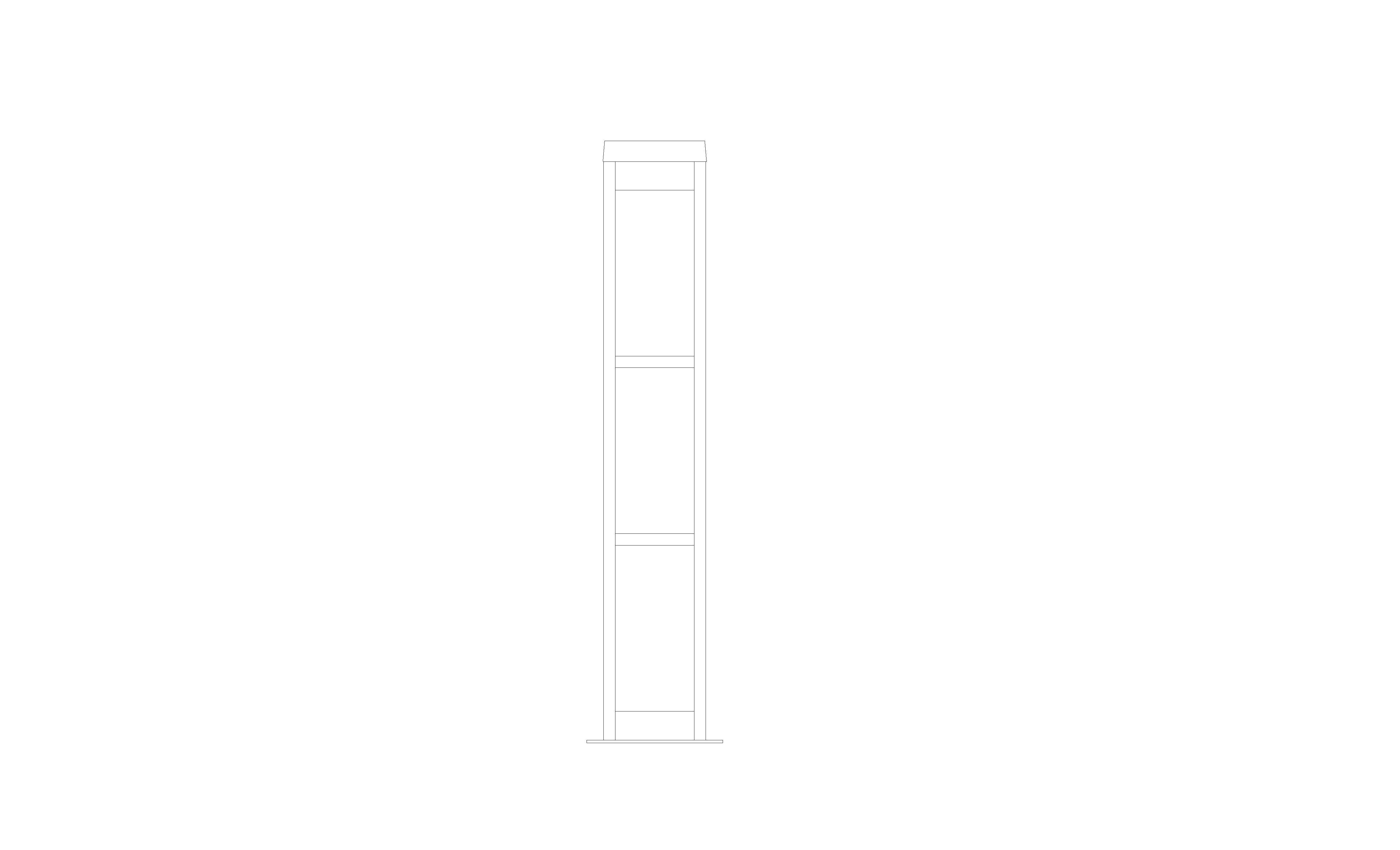

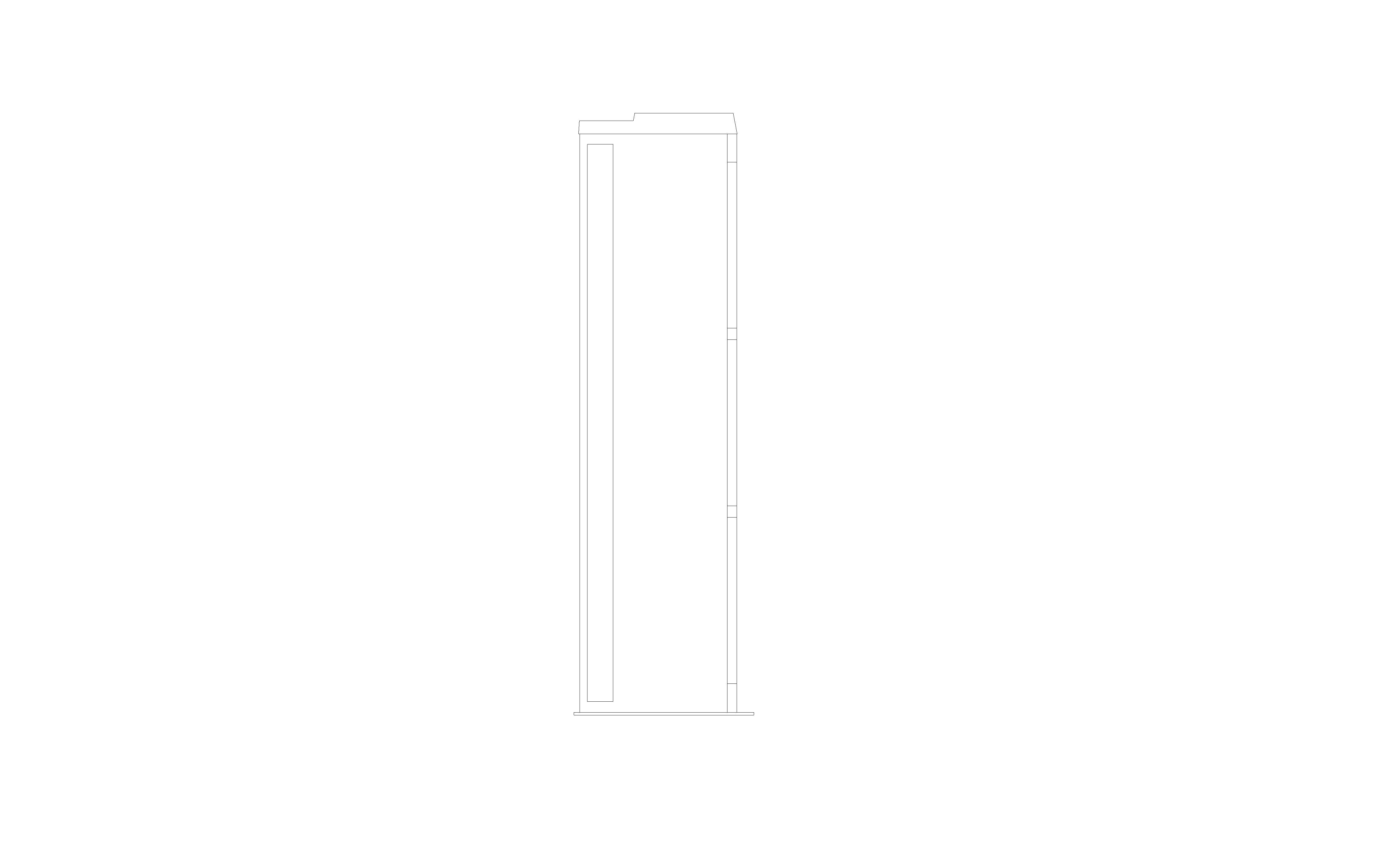

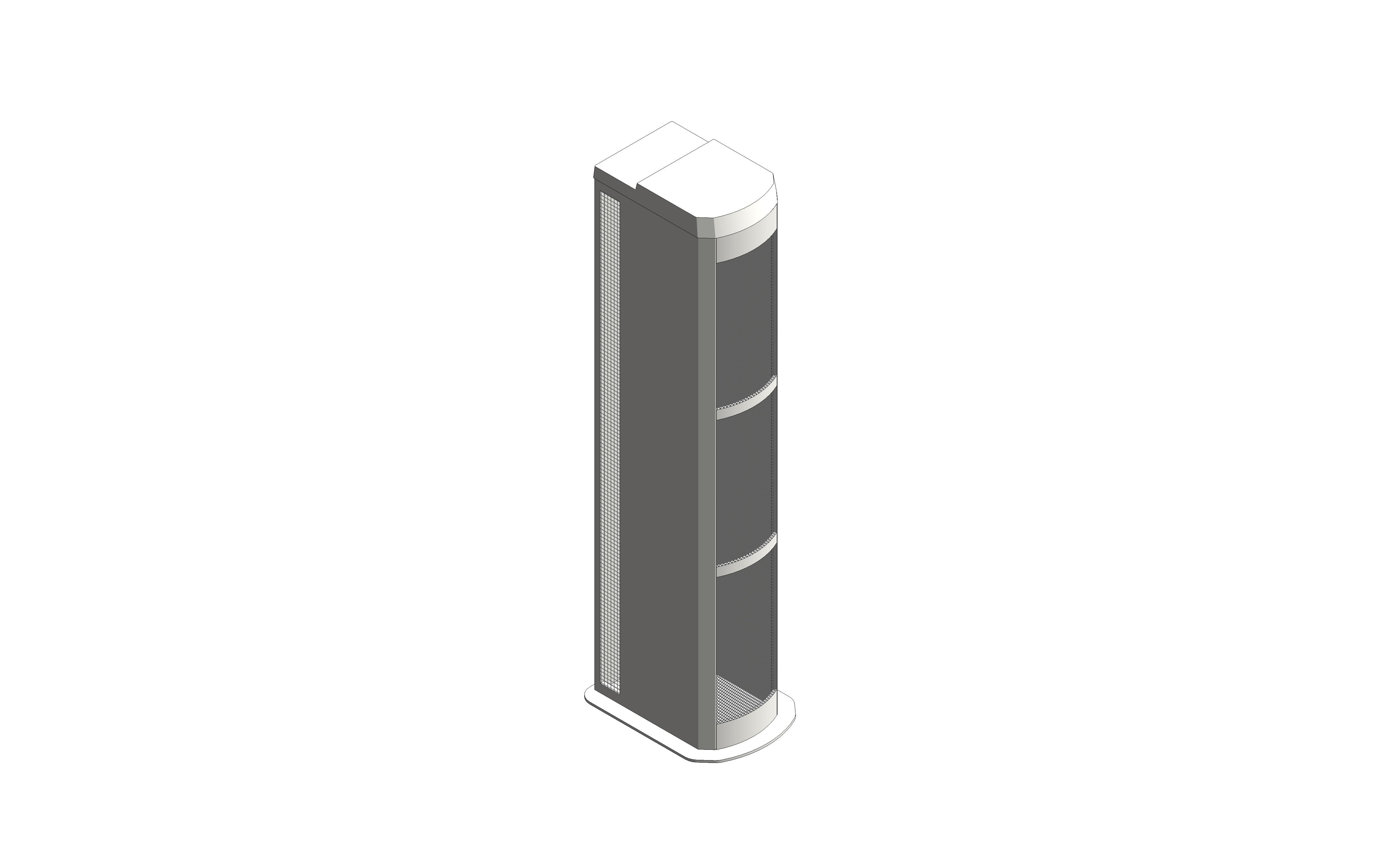

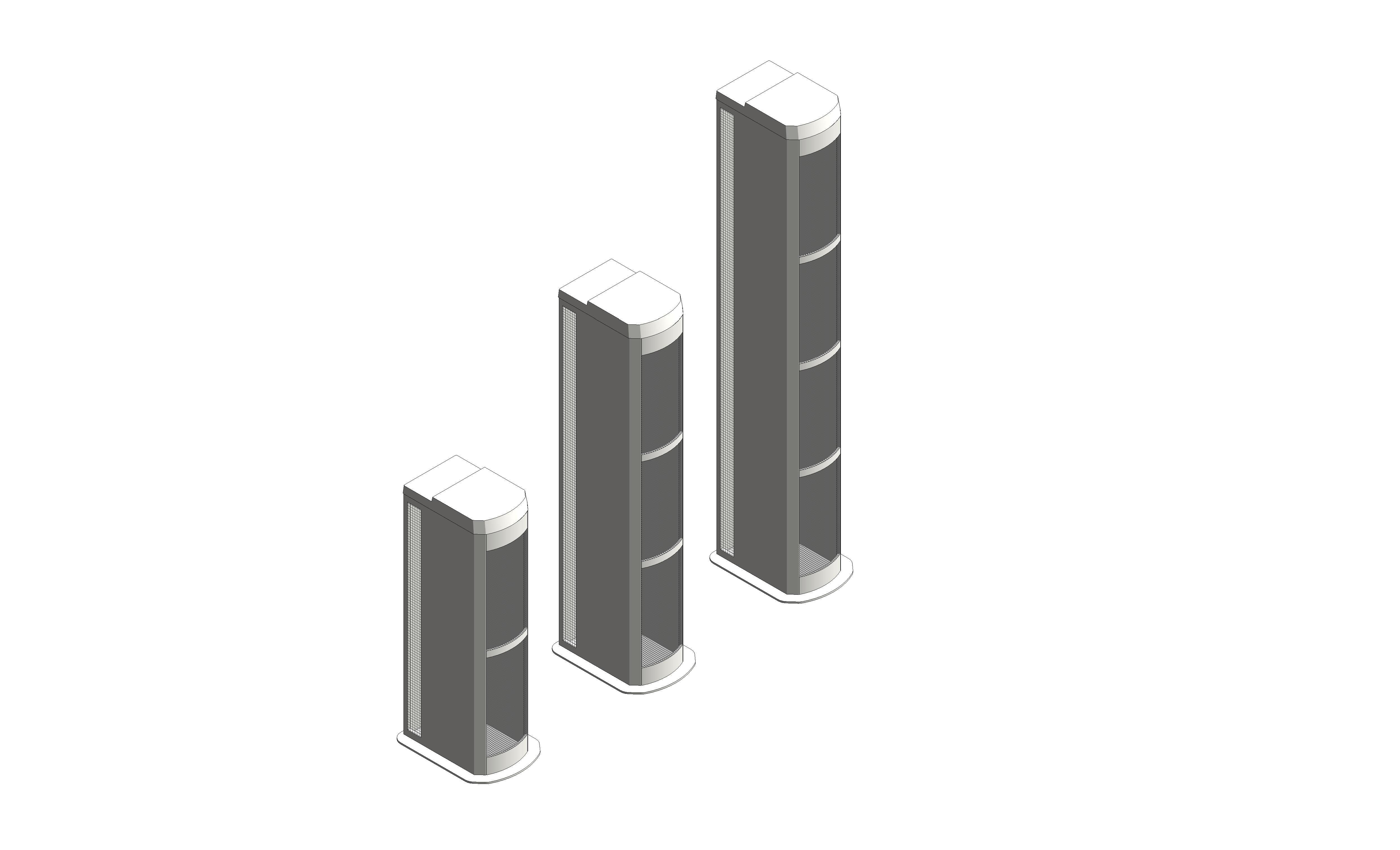

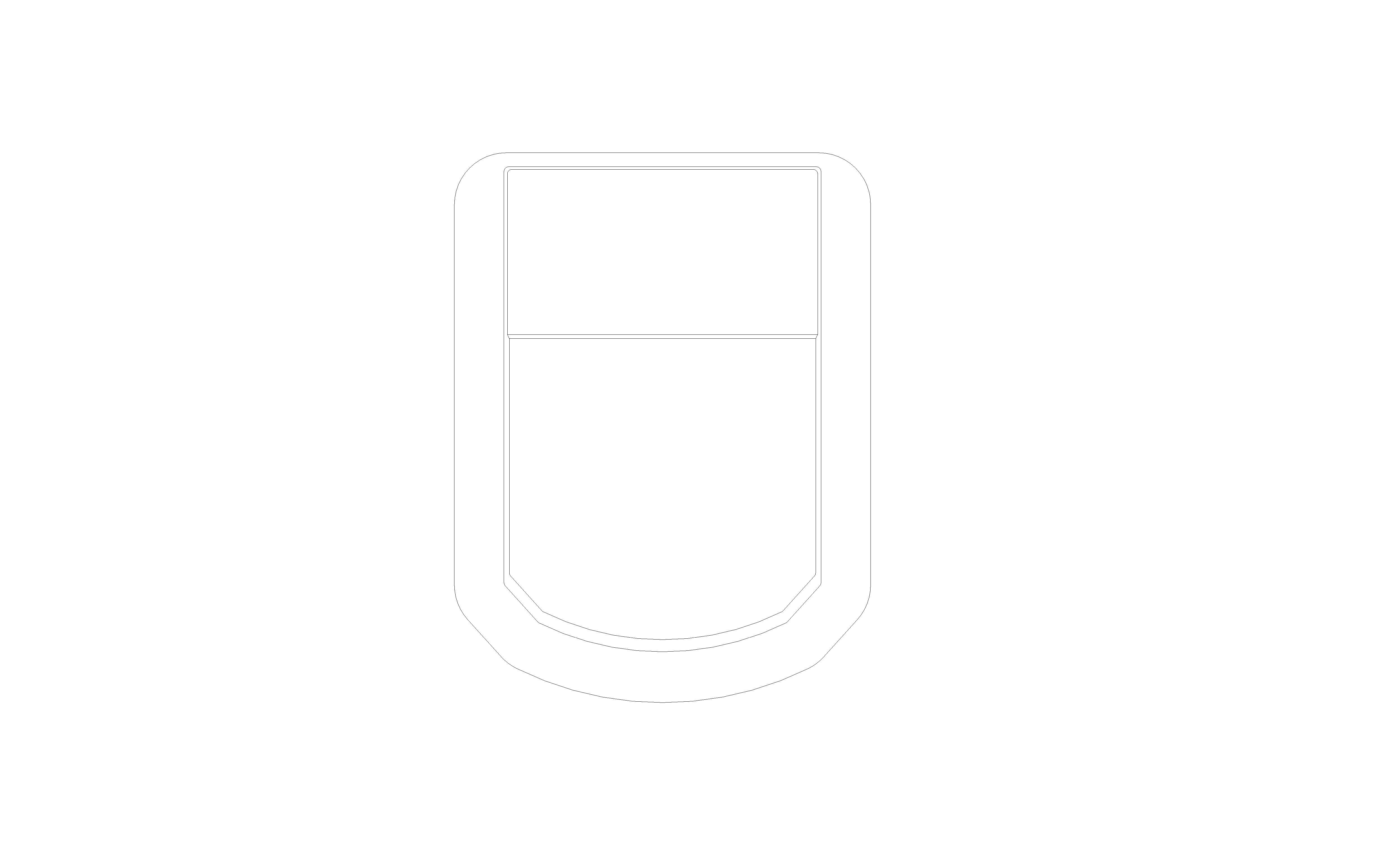

Air Curtain - RA Vertical Series

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/air-curtain-ra-vertical-series/document/object-user-guide
• a1252.00 mm
• Accessibility Performancen/a
• Air Volume Flow Rate(Min/Max)336 - 1479 m3/h
• Assembly CodeD3090400
• Asset TypeFixed
• BIM Object NameThermoscreens_MechanicalEquipment_AirCurtains_RASeries_Vertical_LH
• Body MaterialThermoscreens - Metal - PowderCoated - RAL9016
• Classification NameUniclass2015
• Classification ValuePr_70_60_36_02
• Code Performancen/a
• ColorStandard RAL 9016 (white)
• Constituentsn/a
• Created Bysales@thermoscreens.com
• Created On2023-03-27 T09:00:00
• Default Elevation3000.00 mm
• DescriptionPowerful and very energy efficient, the RA (refrigerated areas) Air Curtain has been designed and engineered to maintain climate separation in refrigerated areas with temperatures as low as 0 degrees celsius. The unit is quiet in operation and reduces operating costs by preventing the escape of expensive conditioned air. Available in 2 variants the RA and RA Max, which has been designed for areas where greater air velocity or a higher mounting is needed.
• Documentation Certificateswww.bimstore.co/products/air-curtain-ra-vertical-series/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/air-curtain-ra-vertical-series/document/installation-guide

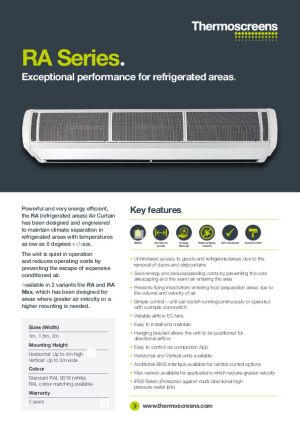

• Documentation Literaturewww.bimstore.co/products/air-curtain-ra-vertical-series/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/air-curtain-ra-vertical-series/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/air-curtain-ra-vertical-series/document/technical-data-sheet
• Duration UnitYear
• Effective Width Of Airstream1.10 m
• Expected Life0
• Features• Unhindered access to goods and refrigerated areas due to the removal of doors and strip curtains • Save energy and reduce operating costs by preventing the cold air escaping and the warm air entering the area • Prevents flying insects from entering food preparation areas due to the volume and velocity of air • Simple control – unit can be left running continuously or operated with a simple door switch • Variable airflow EC fans • Easy to install and maintain • Hanging bracket allows the unit to be positioned for directional airflow • Easy to control via companion App • Horizontal and Vertical units available • Additional BMS interface available for central control options • Max version available for applications which require greater velocity • IP66 Rated (Protected against multi-directional high pressure water jets)
• Finishn/a
• Graden/a
• Ifc Export AsIfcUnitaryEquipmentType
• Ifc Export TypeAIRCONDITIONINGUNIT
• Intake MaterialThermoscreens - Metal - Grille
• KeynoteU
• ManufacturerThermoscreens
• Manufacturer NameThermoscreens
• Materialn/a
• Maximum Door Width2.6 m
• Maximum Mounting Heightn/a
• ModelRA1000V
• Model NumberRA1000V
• Model ReferenceThermoscreens RA Series Air Curtain
• NBS DescriptionAir curtains
• NBS Noten/a
• NBS Object NameThermoscreens - Air curtains
• NBS Office Master Tagn/a
• NBS Reference90-40-35/310
• Noise Level(Min/Max)52 - 70 dB(A) @3m
• Nominal Depth498.00 mm
• Nominal Height1305.00 mm
• Nominal Length306.00 mm
• Outlet MaterialThermoscreens - Metal - Grate - Small
• Production Year2023
• Rated Current1 A
• Rated Electrical Power Input164 W
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Size1305 x 498 x 306mm
• Spare Partsn/a
• Specific Fan Power(Min/Max)0.06 - 0.4 W/l/s
• Supply230v/1ph/50Hz
• Type CommentsThermoscreens RA Series Air Curtain
• Type NameRA1000V
• URLthermoscreens.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts2
• Warranty Duration UnitYear
• Warranty Guarantor Laborsales@thermoscreens.com
• Warranty Guarantor Partssales@thermoscreens.com
• Weight60.00 kg
