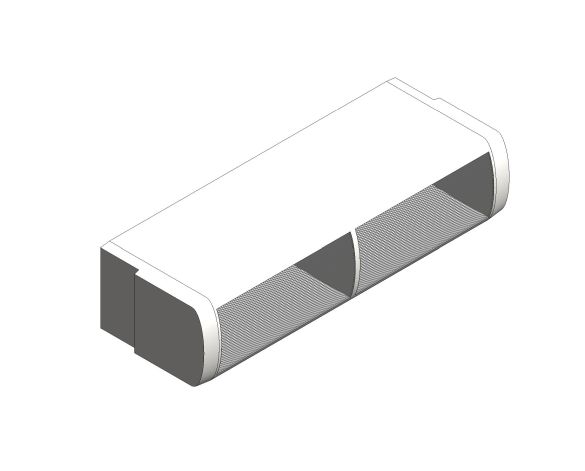

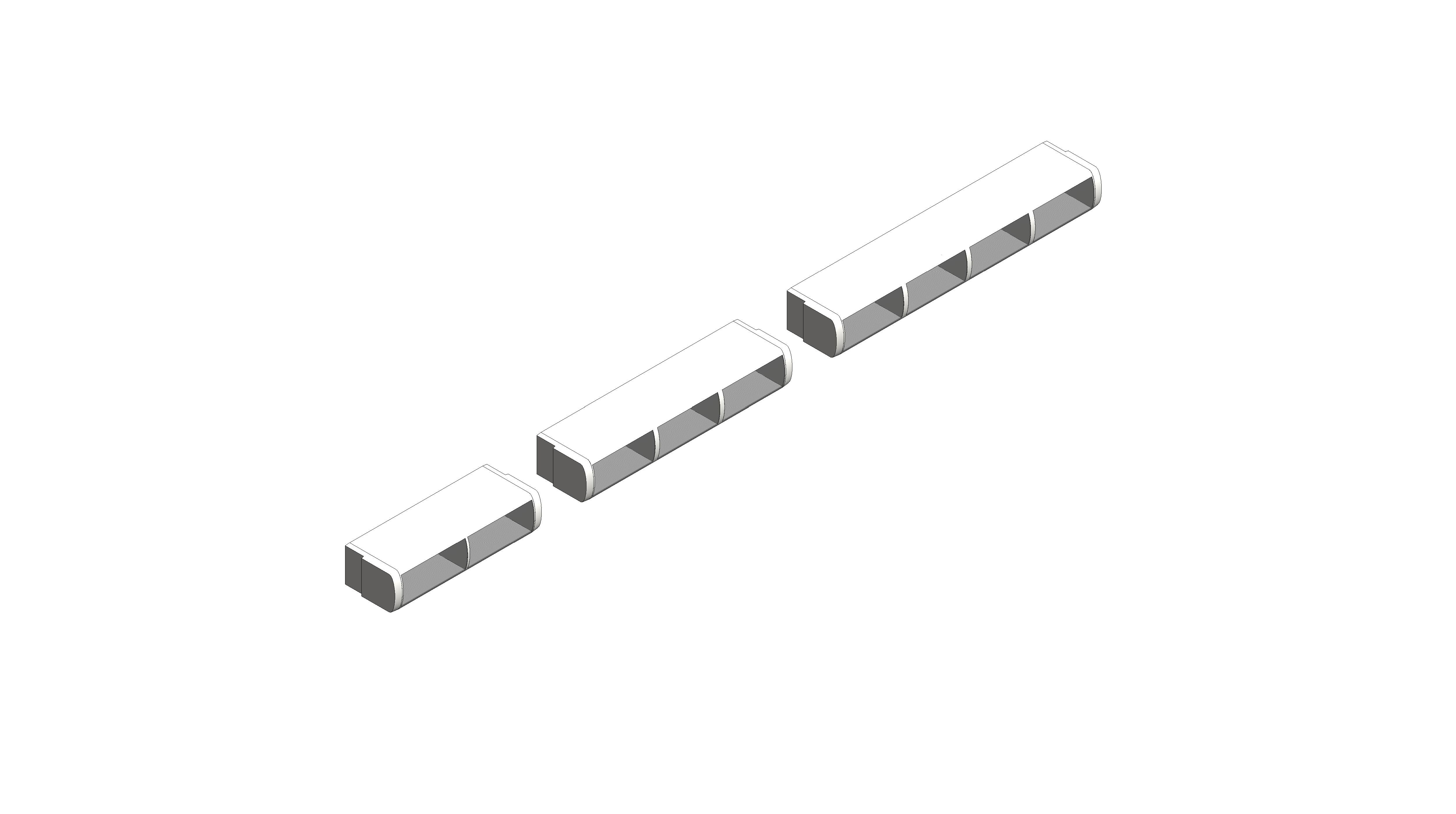

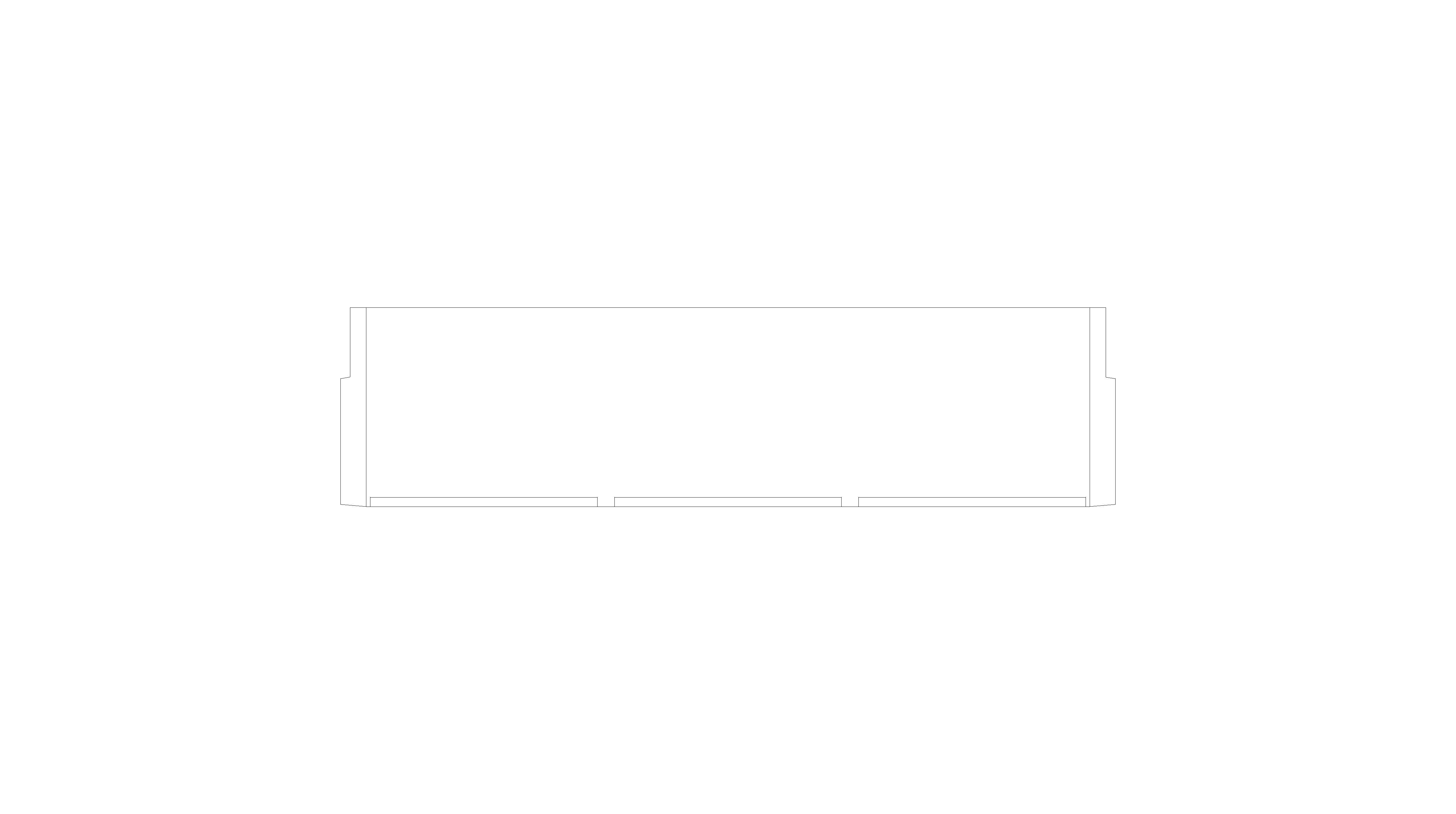

Air Curtain - HX Series - Surface Mounted

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/air-curtain-hx-series-surface-mounted/document/object-user-guide
• A1300.00 mm
• Accessibility Performancen/a
• Assembly CodeD3090400
• Asset TypeFixed
• B895.00 mm
• BIM Object NameThermoscreens_MechanicalEquipment_AirCurtains_HXSeries_HX1000A
• C100.00 mm
• Classification NameUniclass2015
• Classification ValuePr_70_60_36_02
• Code Performancen/a
• ColorRAL 9016
• Constituentsn/a
• Created Bysales@thermoscreens.com
• Created On2022-01-20 T09:00:00
• D900.00 mm
• Default Elevation3000.00 mm
• Depth306.00 mm
• DescriptionCombining the latest Ecopower controls with industry-leading air separation technology, HX commercial air curtains are one of the most advanced solutions available in the UK. Very powerful and highly efficient, HX units deliver exceptional performance and outstanding energy savings.
• Documentation Certificateswww.bimstore.co/products/air-curtain-hx-series-surface-mounted/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/air-curtain-hx-series-surface-mounted/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/air-curtain-hx-series-surface-mounted/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/air-curtain-hx-series-surface-mounted/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/air-curtain-hx-series-surface-mounted/document/technical-data-sheet
• Duration UnitYear
• E202.00 mm
• Expected Life0
• F202.00 mm
• FeaturesIndustry-leading Ecopower Air Technology Ambient, water heated or electric heated Surface or recessed mounting Ecopower energy saving controls Weather compensation with optional outdoor air sensor IP21 rated, ErP compliant and BMS ready Air Plenum - delivers even air flow from the discharge nozzle Converging Nozzles - creates a Venturi effect, fortifying the air barrier Active Cellular Grille - shapes air as it passes through the grille Water heated units fitted with a motorised three-port valve 2 or 4 row coil options - water temperatures 45 - 90°C Vertical variant available for water temperatures 80 - 90°C One control unit operates up to eight HX units Filters supplied as standard (ambient and water heated units) Optional outdoor weather compensation air sensor Vertical recessed variant for water temperatures 80 - 90°C Instant heat - rapid cooldown, high efficiency heating element (electric)
• Finishn/a
• G898.00 mm
• Graden/a
• Grille 1 Length570.00 mm
• Grille 2 Length570.00 mm
• Grille 3 Length10.00 mm
• Grille 3 Offset100.00 mm
• Grille 3 VisibilityNo
• Grille 3 Void Offset247.00 mm
• Grille 4 Length10.00 mm
• Grille 4 Offset100.00 mm
• Grille 4 VisibilityNo
• Grille 4 Void Offset287.00 mm
• H0.00 mm
• Heat Outputn/a
• Height468.00 mm
• I201.00 mm
• Ifc Export AsIfcUnitaryEquipmentType
• Ifc Export TypeAIRCONDITIONINGUNIT
• J1100.00 mm
• KeynoteU
• Length1300.00 mm
• Loading Per Phase0.8 A
• ManufacturerThermoscreens
• Manufacturer NameThermoscreens
• Materialn/a
• Maximum Air Volume1370 m3/h
• Maximum Velocity9.0 m/s
• ModelHX1000A
• Model NumberHX1000A
• Model ReferenceThermoscreens HX Series Air Curtain
• NBS DescriptionAir curtains
• NBS Noten/a
• NBS Object NameThermoscreens - Air curtains
• NBS Office Master Tagn/a
• NBS Reference90-40-35/310
• Noise Output-High58 dB(A) @3m
• Noise Output-Low48 dB(A) @3m
• Noise Output-Medium55 dB(A) @3m
• Nominal Depth306.00 mm
• Nominal Height468.00 mm
• Nominal Length1300.00 mm
• Production Year2022
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Size1300 x 468 x 306mm
• Spare PartsDoor limit switch [T7260200]; 3 Way mid position valve [T7260111]; End cap - LH [T7661204]; End cap - RH [T7661205]; Master and slave lead: 3m + coupler [T5951110]; 6m Extension cable + coupler [T5951110]; 10m Extension cable + coupler [T5951111]; 15m Extension cable + coupler [T5951112]; 30m Extension cable + coupler [T5951113]; Extension lead coupler [T5951030]; Joining kit [T7308230].
• Supply230V~1P&N
• Type CommentsThermoscreens HX Series Air Curtain
• Type NameThermoscreens HX Series Air Curtain
• Type Of HeatingAmbient
• URLthermoscreens.com/
• Warranty Descriptionn/a
• Warranty Duration Labor2
• Warranty Duration Parts2
• Warranty Duration UnitYear
• Warranty Guarantor Laborsales@thermoscreens.com
• Warranty Guarantor Partssales@thermoscreens.com
• Water Flown/a
• Water Pressure Drop(Coil)n/a
• Water Pressure Drop(Valve)n/a
• Weight45.00 kg
