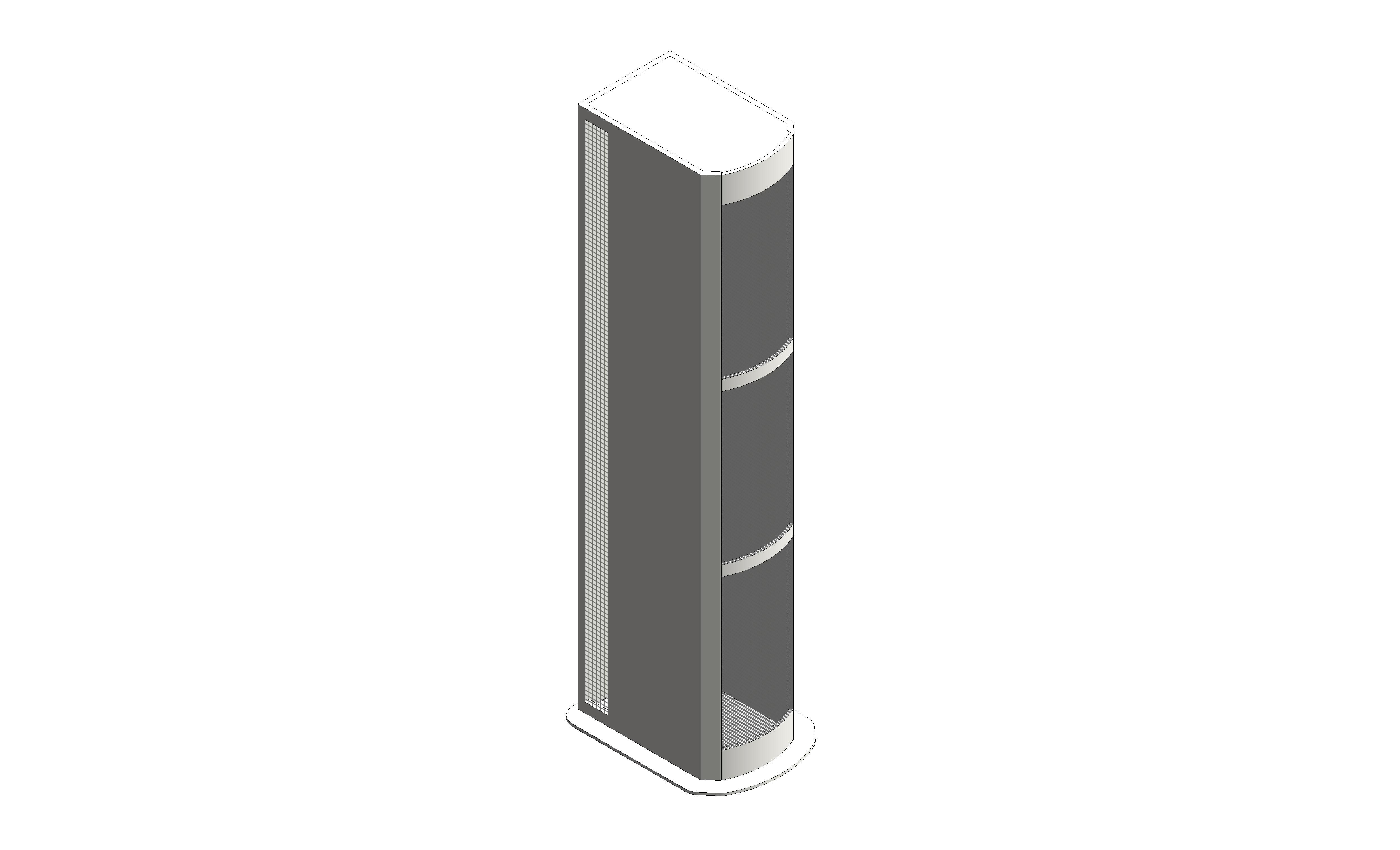

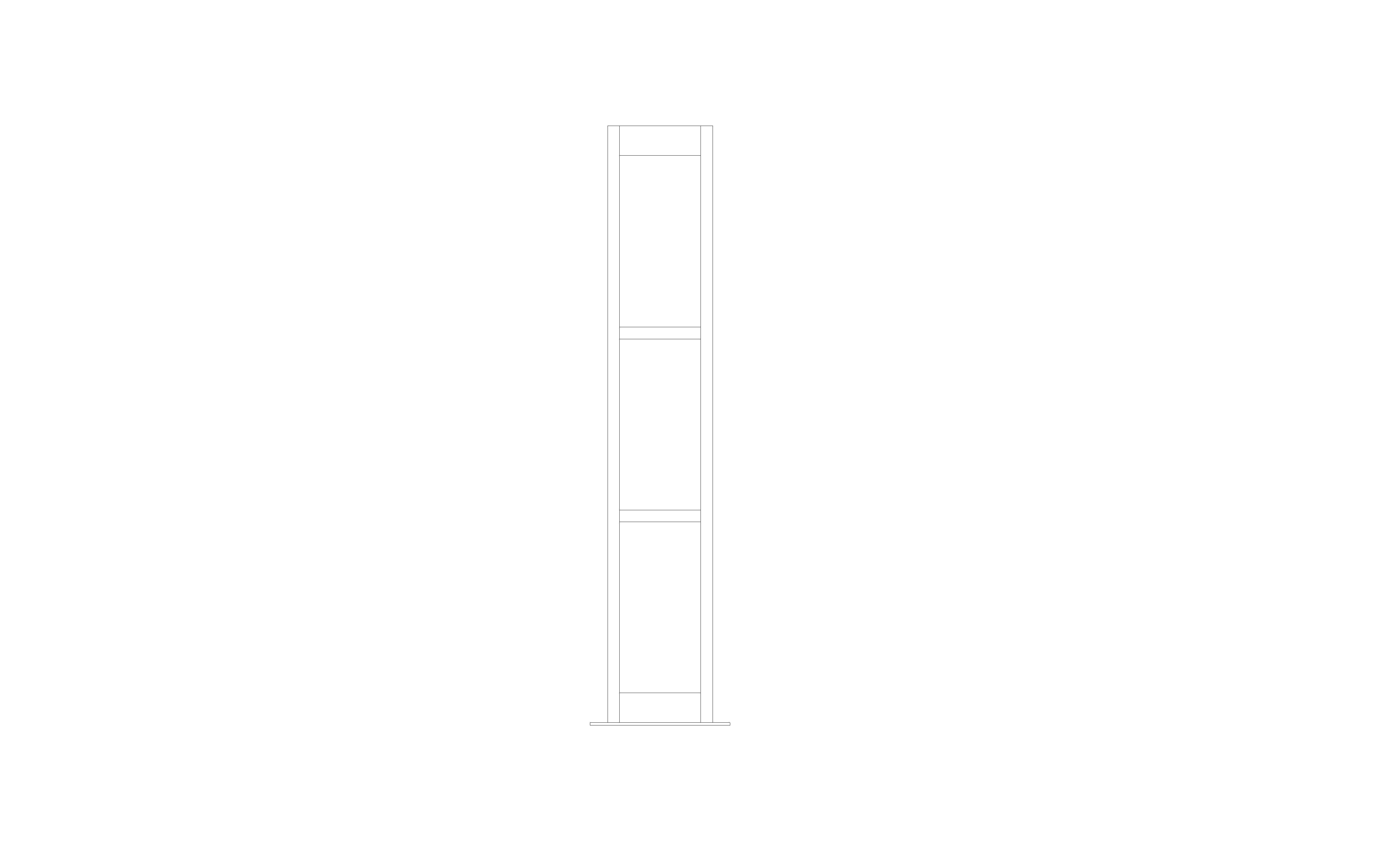

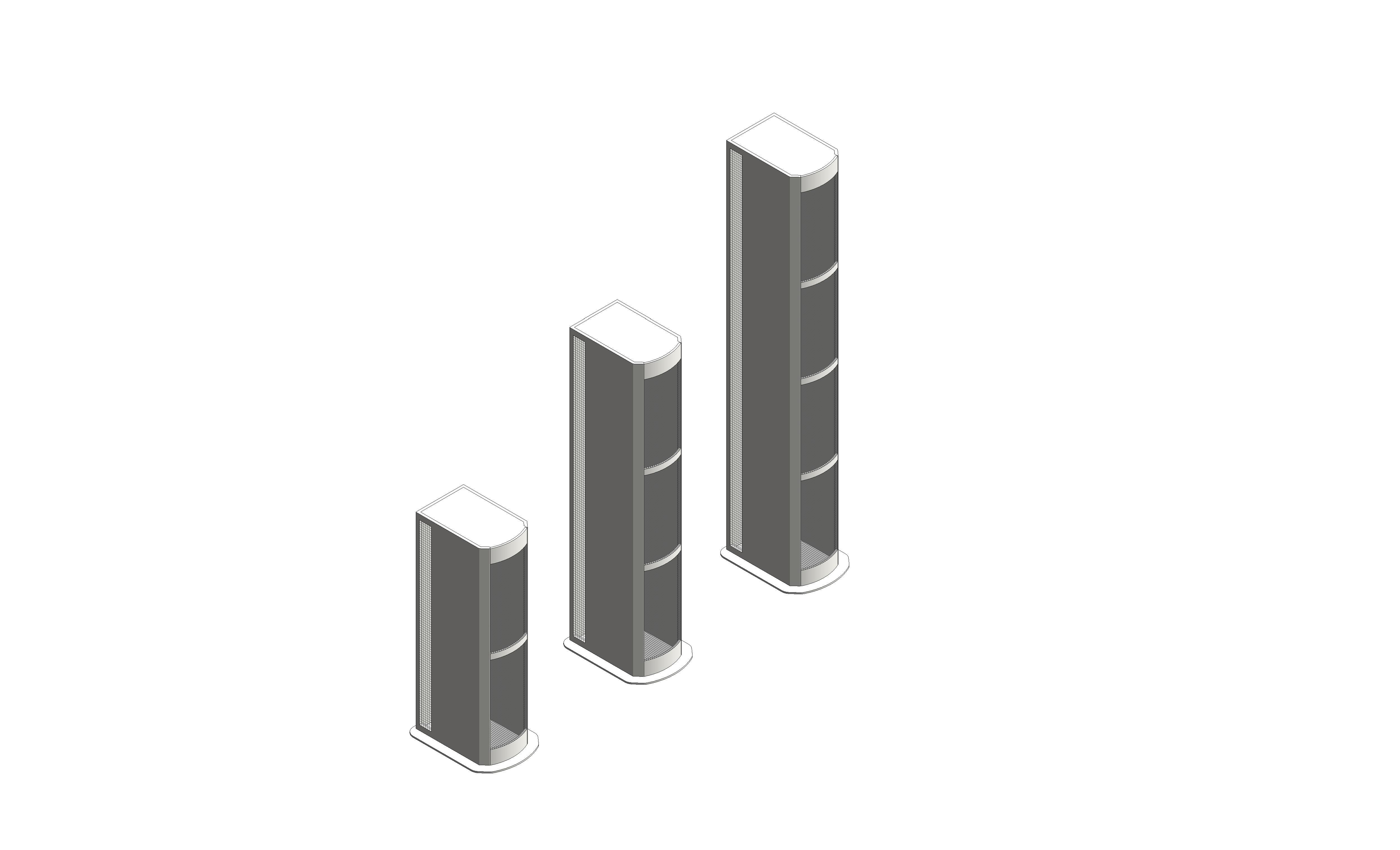

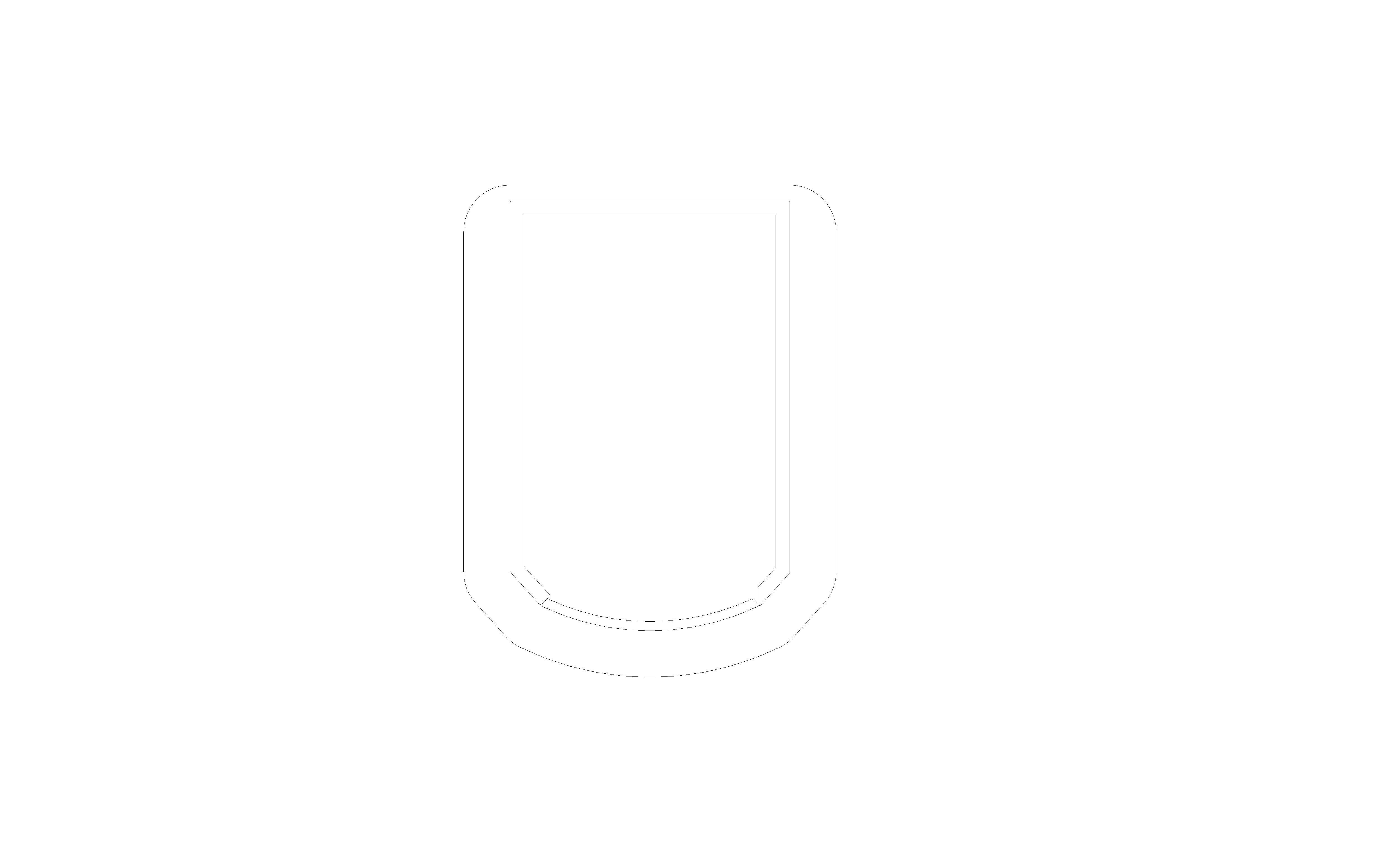

Air Curtain - HE Vertical Series

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version17
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/air-curtain-he-vertical-series/document/object-user-guide
• a1192.00 mm
• Accessibility Performancen/a
• Air Volume Flow Rate(Min/Max)377-1597 m3/h
• Assembly CodeD3090400
• Asset TypeFixed
• BIM Object NameThermoscreens_MechanicalEquipment_AirCurtains_HESeries_Vertical_LH
• Body MaterialThermoscreens - Metal - Stainless Steel - Brushed
• Classification NameUniclass2015
• Classification ValuePr_70_60_36_02
• Code Performancen/a
• ColorStandard RAL 9016 (white)
• Constituentsn/a
• Created Bysales@thermoscreens.com
• Created On2023-03-27 T09:00:00
• Default Elevation3000.00 mm
• DescriptionDesigned and engineered to maintain climate separation down to 2 degrees Celsius. The HE (Harsh Environments) air curtain is one of the most advanced solutions available in the market. Very powerful and highly efficient, the HE delivers exceptional performance and outstanding energy savings. Made from brushed stainless steel, the unit is easy to clean in the harshest environments. Available in 2 variants the HE and HE Max, which has been designed for areas where greater air velocity or a higher mounting is needed.
• Documentation Certificateswww.bimstore.co/products/air-curtain-he-vertical-series/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/air-curtain-he-vertical-series/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/air-curtain-he-vertical-series/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/air-curtain-he-vertical-series/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/air-curtain-he-vertical-series/document/technical-data-sheet
• Duration UnitYear
• Effective Width Of Airstream1.10 m
• Expected Life0
• Features• Energy savings – Saves energy and operational costs by preventing the cold air escaping and the warm air entering the area • Protecting the goods - There is no change in temperature, ensuring your goods are reliably protected • Unhindered access to goods and refrigerated areas due to the removal of doors and strip curtains • Prevents flying insects entering the area due to the volume and velocity of the air • Easy to control via companion App • Autonomous controls – the unit will work autonomously after set up • Horizontal and Vertical units available • Additional BMS interface available for central control options • Max version available for applications which require greater velocity • IP66 Rated – Suitable for chemical cleaning
• Finishn/a
• Graden/a
• Ifc Export AsIfcUnitaryEquipmentType
• Ifc Export TypeAIRCONDITIONINGUNIT
• Intake MaterialThermoscreens - Metal - Grille
• KeynoteU
• ManufacturerThermoscreens
• Manufacturer NameThermoscreens
• Materialn/a
• Maximum Door Width2.6 m
• Maximum Mounting Heightn/a
• ModelHE1000V
• Model NumberHE1000V
• Model ReferenceThermoscreens HE Series Air Curtain
• NBS DescriptionAir curtains
• NBS Noten/a
• NBS Object NameThermoscreens - Air curtains
• NBS Office Master Tagn/a
• NBS Reference90-40-35/310
• Noise Level(Min/Max)52 - 70 dB(A) @3m
• Nominal Depth485.00 mm
• Nominal Height1185.00 mm
• Nominal Length348.00 mm
• Outlet MaterialThermoscreens - Metal - Grate - Small
• Production Year2023
• Rated Current1 A
• Rated Electrical Power Input167 W
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Size1184 x 465 x 302mm
• Spare Partsn/a
• Specific Fan Power(Min/Max)0.08 - 0.38 W/l/s
• Supply230v/1ph/50Hz
• Type CommentsThermoscreens HE Series Air Curtain
• Type NameHE1000V
• URLthermoscreens.com/
• Warranty Descriptionn/a
• Warranty Duration Labor0
• Warranty Duration Parts2
• Warranty Duration UnitYear
• Warranty Guarantor Laborsales@thermoscreens.com
• Warranty Guarantor Partssales@thermoscreens.com
• Weight60.00 kg
