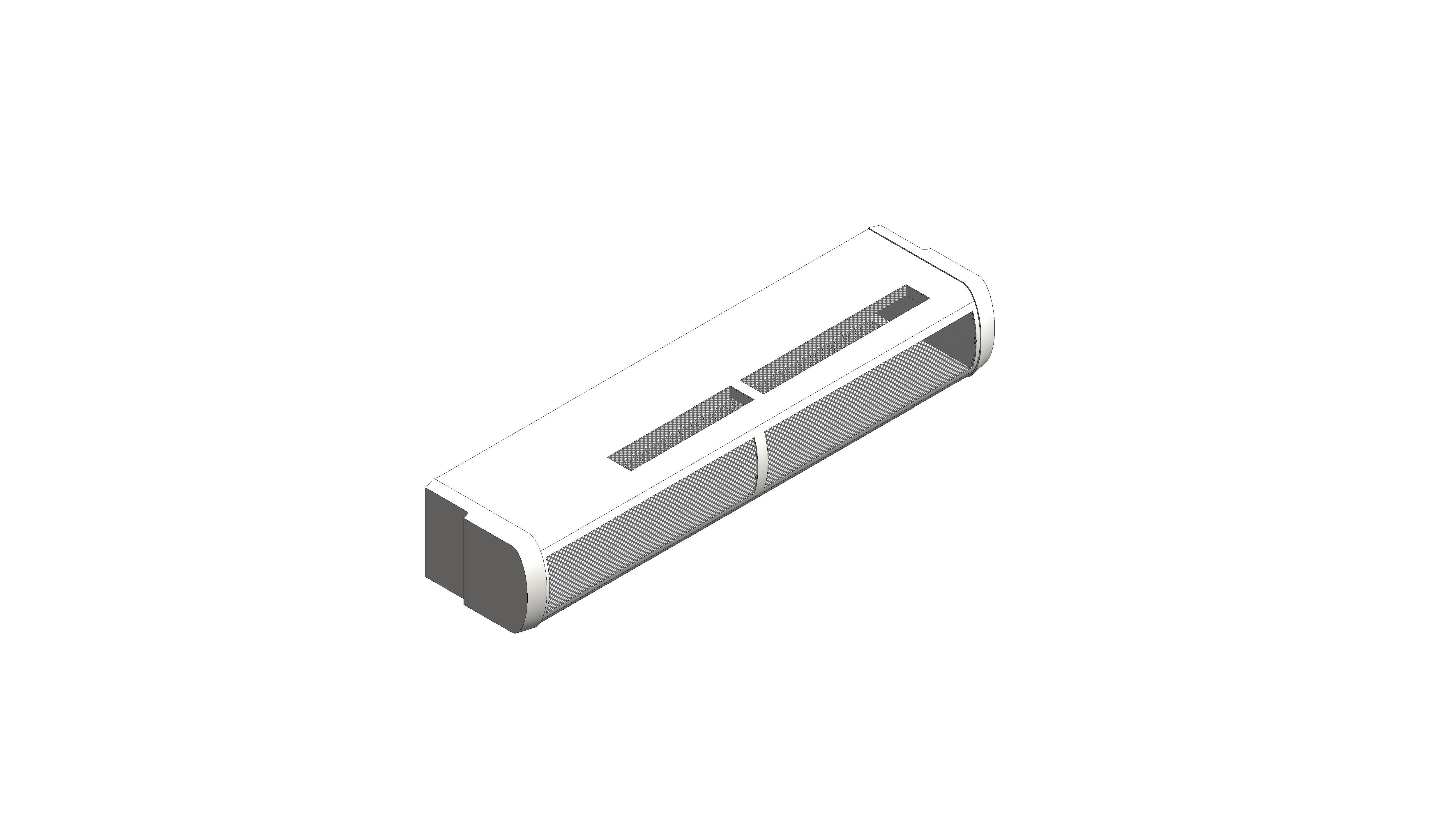

Air Curtain - C-Series - Surface Mounted

Object metadata

• _AuthorAM
• _Authorized Bybimstore
• _Bim Spec Guid0
• _BS Bible Version16
• _Created Bywww.bimstore.co
• _Current Revision1
• _Distributed Bywww.bimstore.co
• _Object User Guidewww.bimstore.co/products/air-curtain-c-series-surface-mounted/document/object-user-guide
• a111.75 mm
• Accessibility Performancen/a
• Assembly CodeD3090400
• Asset TypeFixed
• b404.50 mm
• B908.00 mm
• BIM Object NameThermoscreens_MechanicalEquipment_AirCurtain_C-Series_C1000A
• c23.00 mm
• Classification NameUniclass2015
• Classification ValuePr_70_60_36_02
• Code Performancen/a
• ColorRAL 9016
• Constituentsn/a
• Created Bysales@thermoscreens.com
• Created On2022-01-20 T09:00:00
• d300.00 mm
• D710.00 mm
• Default Elevation3000.00 mm
• Depth198.00 mm
• DescriptionCompact and cost-effective, Thermoscreens C Series air curtains are specifically designed for applications where there’s limited headspace above the door. With a choice of surface or recessed mounting, there’s a C Series solution to suit any doorway, no matter how restricted the space may be.
• Documentation Certificateswww.bimstore.co/products/air-curtain-c-series-surface-mounted/document/product-certificates
• Documentation Installation Guidewww.bimstore.co/products/air-curtain-c-series-surface-mounted/document/installation-guide
• Documentation Literaturewww.bimstore.co/products/air-curtain-c-series-surface-mounted/document/product-literature
• Documentation Maintenancewww.bimstore.co/products/air-curtain-c-series-surface-mounted/document/maintenance-information
• Documentation Technicalwww.bimstore.co/products/air-curtain-c-series-surface-mounted/document/technical-data-sheet
• Duration UnitYear
• Expected Life0
• F161.00 mm
• Features- Compact, space-saving design - Ambient, water heated or electric heated - Surface or recessed mounting - Ecopower energy saving controls (water heated and electric heated units) - ErP compliant and BMS ready - Last man switch friendly - Tangential fans - powerful linear air flow - Integrated thermostat - Water heated units supplied with a motorised three-port valve - Instant heat, high-efficiency heating element (electric) - Downrated single phase output (electric units) - Filters (water heated and ambient) - Supplied with wall brackets as standard - Ceiling fixings provided (excluding drop-rods) - Joining kits available for connecting surface mounted units - Hinged grilles for easy installation and maintenance (recessed units)
• Finishn/a
• Graden/a
• Grille 1 Length507.00 mm
• Grille 1 VisibilityNo
• Grille 2 Length1.00 mm
• Grille 2 VisibilityNo
• Grille 3 Length1.00 mm
• Grille 3 VisibilityNo
• Grille Horizontal Offset12.25 mm
• Grille Lines Vertical Offset50.00 mm
• Grille Vertical Offset40.00 mm
• Heat Outputn/a
• Height275.00 mm
• Ifc Export AsIfcUnitaryEquipmentType
• Ifc Export TypeAIRCONDITIONINGUNIT
• KeynoteU
• Length1137.00 mm
• Loading Per Phase0.7 A
• ManufacturerThermoscreens
• Manufacturer NameThermoscreens
• Materialn/a
• Maximum Air Volume1250 m3/h
• Maximum Velocity9.0 m/s
• ModelC1000A
• Model NumberC1000A
• Model ReferenceThermoscreens C Series Air Curtain - Surface Mounted
• NBS DescriptionAir curtains
• NBS Noten/a
• NBS Object NameThermoscreens - Air curtains
• NBS Office Master Tagn/a
• NBS Reference90-40-35/310
• Noise Output-High55 dB(A) @3m
• Noise Output-Low50 dB(A) @3m
• Noise Output-Medium53 dB(A) @3m
• Nominal Depth198.00 mm
• Nominal Height275.00 mm
• Nominal Length1137.00 mm
• Production Year2022
• Referenced Standardn/a
• Replacement Costn/a
• Shapen/a
• Sizen/a
• Spare PartsMaster and slave lead: 6m [T5951110]; Ecopower extension lead: 10m [T5951112]; Ecopower extension lead: 15m [T5951113]; Ecopower extension lead: 30m [T5951114]; Extension lead coupler [T5951030]; Joining kit [T7308220]
• Supply230V~1P&N
• TypeC-Series_SurfaceMounted : 1000
• Type CommentsThermoscreens C Series Air Curtain - Surface Mounted
• Type NameThermoscreens C Series Air Curtain - Surface Mounted
• Type Of HeatingAmbient (no heating)
• URLthermoscreens.com/
• Warranty Descriptionn/a
• Warranty Duration Labor2
• Warranty Duration Parts2
• Warranty Duration UnitYear
• Warranty Guarantor Laborsales@thermoscreens.com
• Warranty Guarantor Partssales@thermoscreens.com
• Weight16.00 kg
