AA110 (65mm) Curtain Wall System - Dual Colour

  • Revit, BIM, Store, Components, Architecture,Object,Free,Download,Kawneer,curtain,wall,system,65mm,AA110,dual,colour,zone,mullion,drained
  • Revit, BIM, Store, Components, Architecture,Object,Free,Download,Kawneer,curtain,wall,system,65mm,AA110,dual,colour,zone,mullion,drained
  • Revit, BIM, Store, Components, Architecture,Object,Free,Download,Kawneer,curtain,wall,system,65mm,AA110,dual,colour,zone,mullion,drained
  • Revit, BIM, Store, Components, Architecture,Object,Free,Download,Kawneer,curtain,wall,system,65mm,AA110,dual,colour,zone,mullion,drained
  • Revit, BIM, Store, Components, Architecture,Object,Free,Download,Kawneer,curtain,wall,system,65mm,AA110,dual,colour,zone,mullion,drained
  • Views 15.5k
  • Comments 0
  • Rating5 / 5
    Rate this product
    1/5 Rating1/5 Rating2/5 Rating2/5 Rating3/5 Rating3/5 Rating4/5 Rating4/5 Rating5/5 Rating5/5 Rating

CEN442

Compliant

COBie

Compliant

BSB

Compliant

Object Data

2 Revision

Last Updated

21/12/2017

Available for:
  • Logo: Autodesk Revit

The AA®110 curtain wall system has been designed in line with the AA®100 system, the fundamental difference is the depth of the mullions and transoms. The AA®110 65mm system with its deeper glazing rebate meets the requirements for barrier loading and enables the facade to stand up to high levels of building movement.

The AA®110 is suitable for vertical and sloped applications including faceted walls. As with the AA®100 system, the AA®110 also offers a range of construction methods, including zone-drainage and mullion-drainage. The AA®110 enables architects, assisted by our Architectural Advisers or Architectural Services Team, to identify the optimum curtain walling solutions and create inspirational architectural designs.

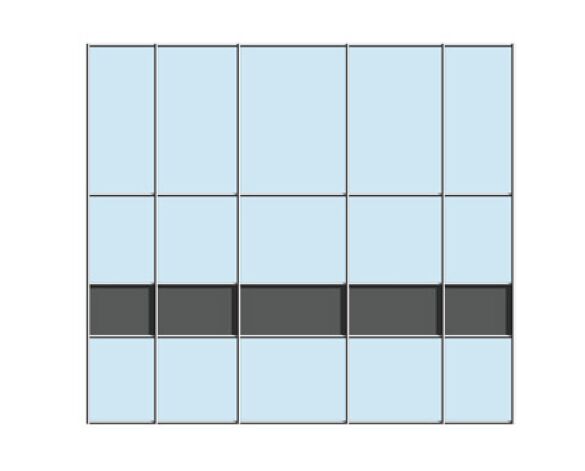

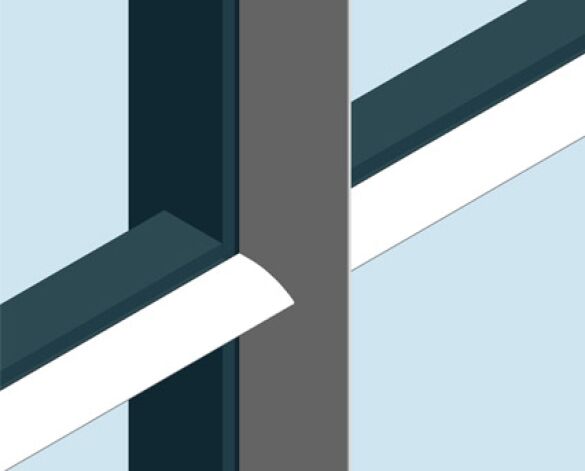

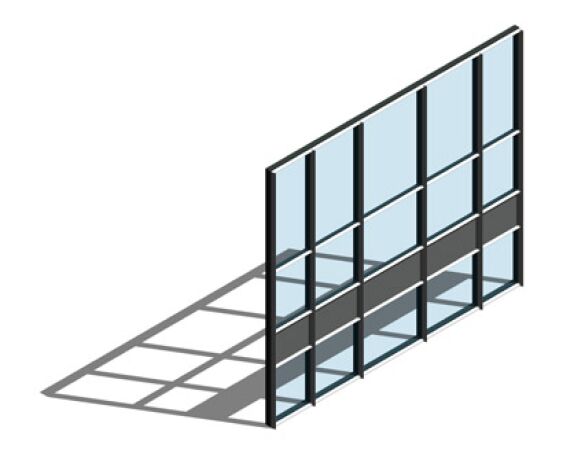

This download is for the Kawneer AA110 (65mm) Curtain Wall System - Dual Colour Curtain Wall System. It includes pre-configured curtain wall types for both zone and mullion drained, and also includes all available face cap sizes as face based components.

rev2 - user guide update

Read more

Accompanying literature

Accompanying literature coming soon.
