bimstore - Mount Lighting - 48v Low Voltage LED Track Spot Lighting

1.7k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

11/10/2023

Download BIM

Add to collection

Available for:

The 48v LED track spots come in three sizes and arespecially designed to discreetly conceal the control gear for use with our Stucchi-compatible Multi-Track LV system. The extruded aluminium housing is available in black as standard or white option. With two colour temperatures and two CRI options to choose from, you can guarantee the perfect light for the right scene.

Built-in electronic driver, DALI / phase-dim /
Casambi options
Clear safety glass diffuser, sandblasted /
honeycomb option
Extruded aluminium housing
Rotation: vertical 90°/horizontal 360°
4000K as standard (3000K available)
Black colour as standard (white available)
CRI>80 as standard (CRI>90 available)

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/48v-low-voltage-led-track-spot/document/object-user-guide
20No
3 KNo
Accessibility Performancen/a
Assembly CodeD5020200
Asset TypeFixed
BIM Object NameMountLighting_48vLEDTrack_Spot
BTCNo
Classification NameUniclass2015
Classification ValuePr_70_70_48
Code Performancen/a
Colorn/a
Color Filter16777215
Constituentsn/a
Created Bysales@mountlighting.co.uk
Created On2023-05-09T09:00:00
CRI90No
DALINo
Default Elevation1219 mm
DescriptionThe 48v LED track spots come in three sizes and are specially designed to discreetly conceal the control gear for use with our Stucchi-compatible Multi-Track LV system.The extruded aluminium housing is available in black as standard or white option. With two colour temperatures and two CRI options to choose from, you can guarantee the perfect light for the right scene.
Dimming Lamp Color Temperature Shift<None>
Documentation Certificateswww.bimstore.co/products/48v-low-voltage-led-track-spot/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/48v-low-voltage-led-track-spot/document/installation-guide

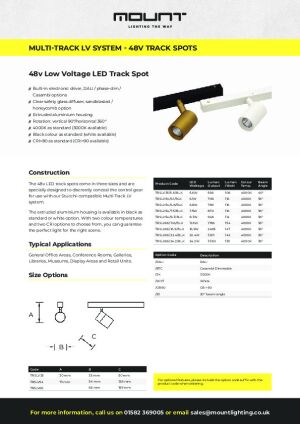

Documentation Literaturewww.bimstore.co/products/48v-low-voltage-led-track-spot/document/product-literature
Documentation Maintenancewww.bimstore.co/products/48v-low-voltage-led-track-spot/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/48v-low-voltage-led-track-spot/document/technical-data-sheet
Duration UnitYears
Emit from Line Length610 mm
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcLamp
Ifc Export TypeIfcLampTypeEnum
KeynoteV
Light Source Symbol Size610 mm
Light Angle180.00 °
ManufacturerMount Lighting
Manufacturer NameMount Lighting
Materialn/a
Model48v Low Voltage LED Track Spot Lighting - TRSLV35/5.6/BLK
Model NumberTRSLV35/5.6/BLK
Model Reference48v Low Voltage LED Track Spot Lighting
NBS DescriptionLuminaires, lighting track and lighting accessories
NBS Noten/a
NBS Object NameMount Lighting - Luminaires, lighting track and lighting accessories
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Primary MaterialMountLighting_PC_Black
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partssales@mountlighting.co.uk
Stem Length30 mm
TRSLV35Yes
TRSLV54No
TRSLV66No
Type Comments48v Low Voltage LED Track Spot Lighting - TRSLV35/5.6/BLK
Type Name48v Low Voltage LED Track Spot Lighting - TRSLV35/5.6/BLK
URLmountlighting.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@mountlighting.co.uk
Warranty Guarantor Partssales@mountlighting.co.uk
WHTNo
