bimstore - Mount Lighting - 48v Low Voltage LED Linear & Pendants

1.4k
0
- / 5
Rate this product

BS1192:4

Compliant

BSB

Compliant

Object Data

1 Revision

Last Updated

11/10/2023

Download BIM

Add to collection

Available for:

The 48v LED track fittings come in a variety of sizes and are specially designed to discreetly conceal the control gear for use with our Stucchi-compatible Multi-Track LV
system. The extruded aluminium housings are available in black as standard or white option. With two colour temperatures and two CRI options to choose from, you can guarantee the perfect light for the right scene.

Built-in electronic drivers, DALI / phase-dim /
Casambi options
Extruded aluminium housing
4000K as standard (3000K available)
Black colour as standard (white available)
CRI>80 as standard (CRI>90 available)

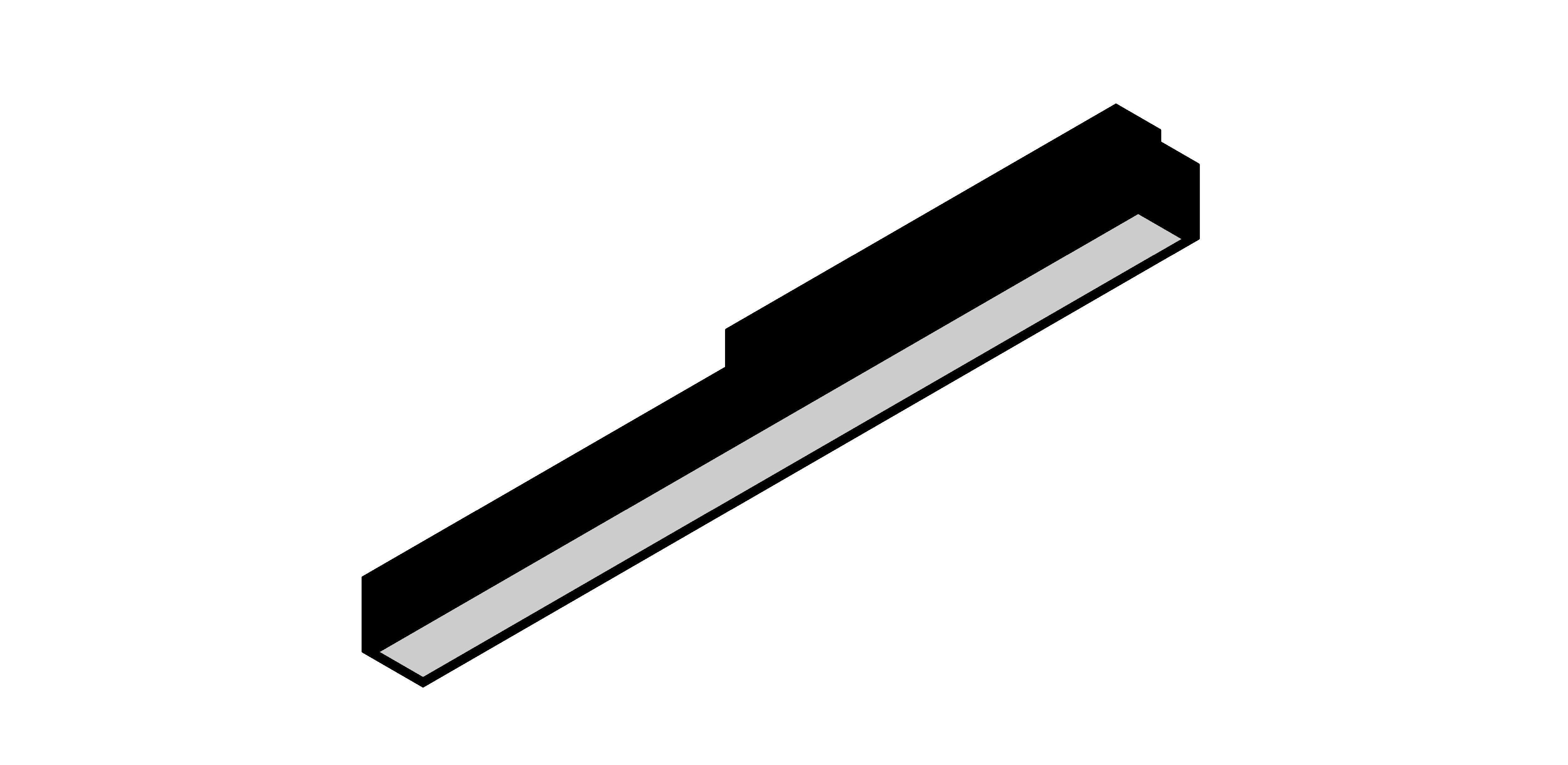

UGR19 compatible linear lensed fittings

_AuthorBS
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version17
_Created Bywww.bimstore.co/
_Current Revision1
_Distributed Bywww.bimstore.co/
_Object User Guidewww.bimstore.co/products/48v-low-voltage-led-linear-pendants/document/object-user-guide
2.7 KNo
/20No
/26x 42No
3 KNo
/CRI90No
/WHTNo
Accessibility Performancen/a
Assembly CodeD5020200
Asset TypeFixed

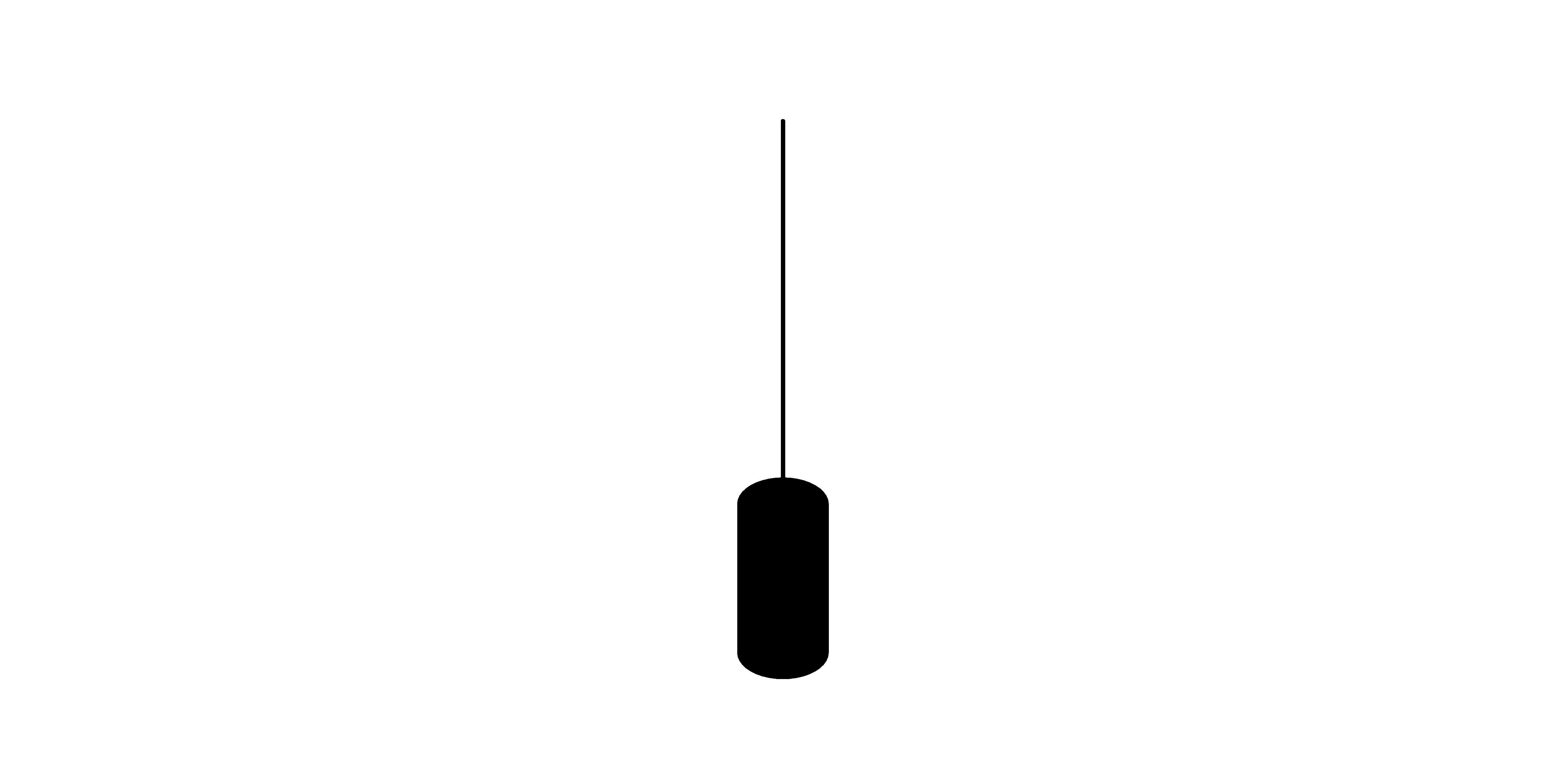

BIM Object NameMountLighting_48vLowVoltage_TRC_Cylinder
Classification NameUniclass2015
Classification ValuePr_70_70_48
Code Performancen/a
Colorn/a
Color Filter16777215
Constituentsn/a
Created Bysales@mountlighting.co.uk
Created On2023-05-09T09:00:00
DALINo
Default Elevation1219 mm
DescriptionThe 48v LED track fittings include pendants and linear lights in a variety of sizes and are specially designed to discreetly conceal the control gear for use with our Stucchi-compatible 48v Low Voltage LV system.The extruded aluminium housings are available in black as a standard or white option. With two colour temperatures and two CRI options to choose from, you can guarantee the perfect light for the right scene. Adding re-positionable pendants and linear area/task light fittings to your track lighting makes the full gamut of Mount Lighting’s wide style range available on one highly controllable system. Track Lighting is no longer limited to spots!
Dimming Lamp Color Temperature Shift<None>
Documentation Certificateswww.bimstore.co/products/48v-low-voltage-led-linear-pendants/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/48v-low-voltage-led-linear-pendants/document/installation-guide

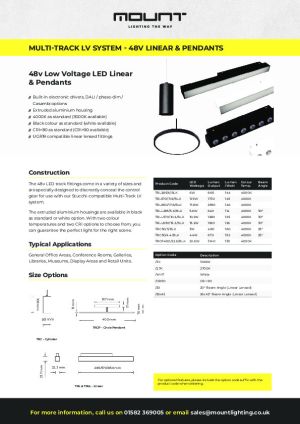

Documentation Literaturewww.bimstore.co/products/48v-low-voltage-led-linear-pendants/document/product-literature
Documentation Maintenancewww.bimstore.co/products/48v-low-voltage-led-linear-pendants/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/48v-low-voltage-led-linear-pendants/document/technical-data-sheet
Duration UnitYears
Emit from Circle Diameter50 mm
Emit Shape Visible in RenderingNo
Expected Life0
Featuresn/a
Finishn/a
Graden/a
Ifc Export AsIfcLamp
Ifc Export TypeIfcLampTypeEnum
KeynoteV
ManufacturerMount Lighting
Manufacturer NameMount Lighting
Materialn/a
Model48v Low Voltage LED Linear & Pendants Lighting - TRC50/3/BLK
Model NumberTRC50/3/BLK
Model Reference48v Low Voltage LED Linear & Pendants Lighting
NBS DescriptionLuminaires, lighting track and lighting accessories
NBS Noten/a
NBS Object NameMount Lighting - Luminaires, lighting track and lighting accessories
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Photometric Web Filegeneric
Primary MaterialMountLighting_PC_Black
Production Year2023
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partssales@mountlighting.co.uk
Tilt Angle0.00 °
Type Comments48v Low Voltage LED Linear & Pendants Lighting - TRC50/3/BLK
Type Name48v Low Voltage LED Linear & Pendants Lighting - TRC50/3/BLK
URLmountlighting.co.uk/
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborsales@mountlighting.co.uk
Warranty Guarantor Partssales@mountlighting.co.uk
