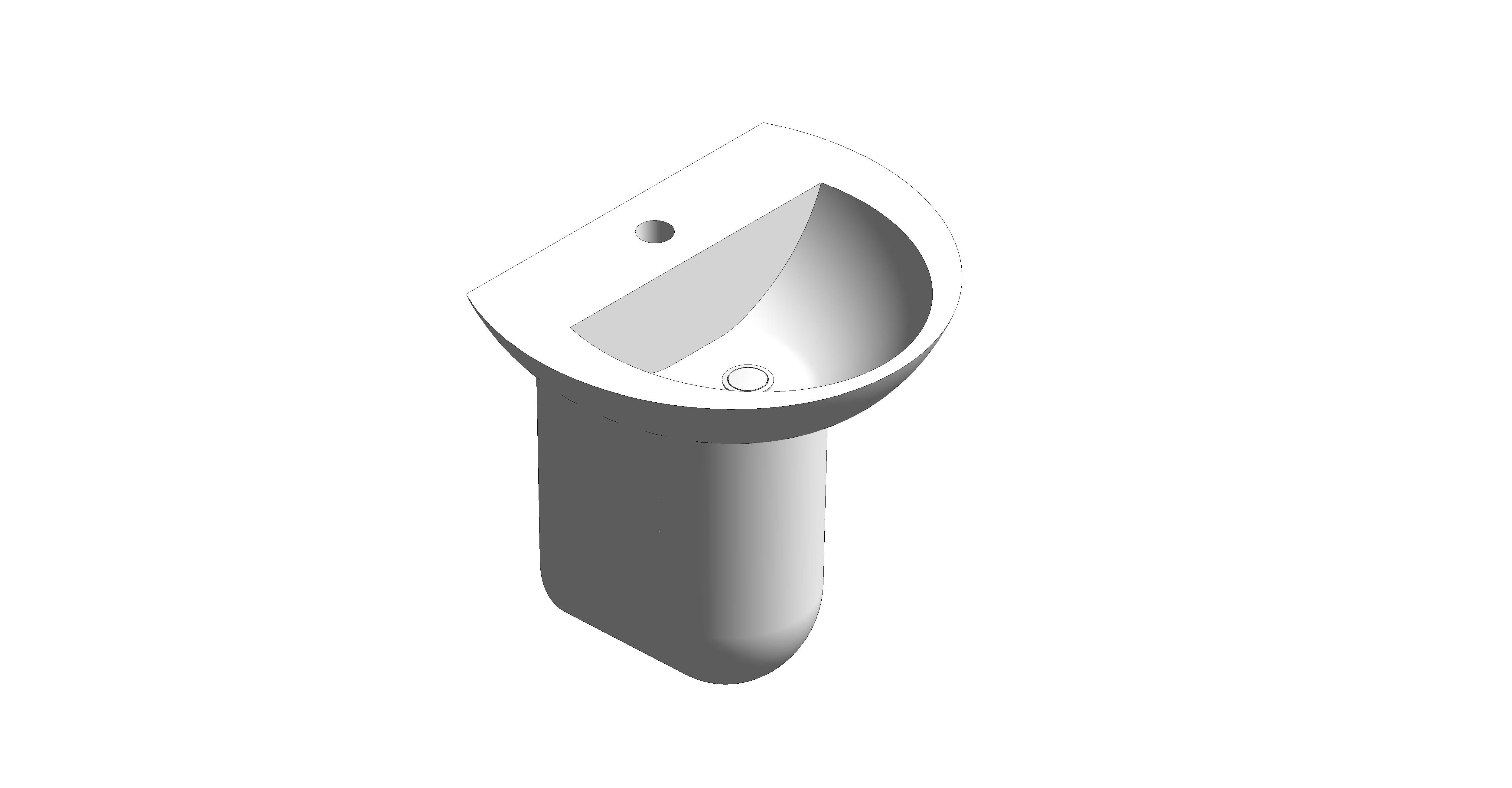

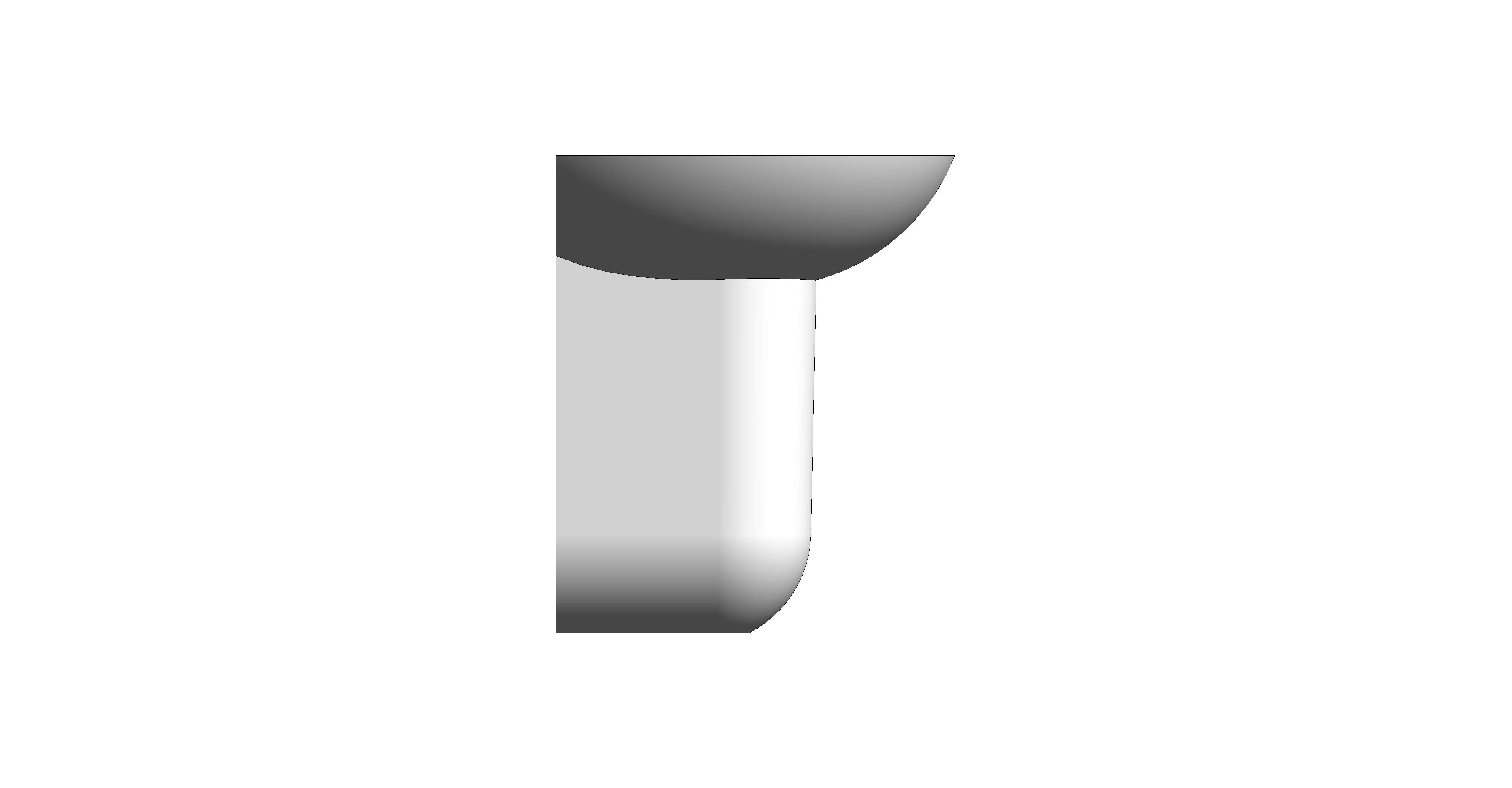

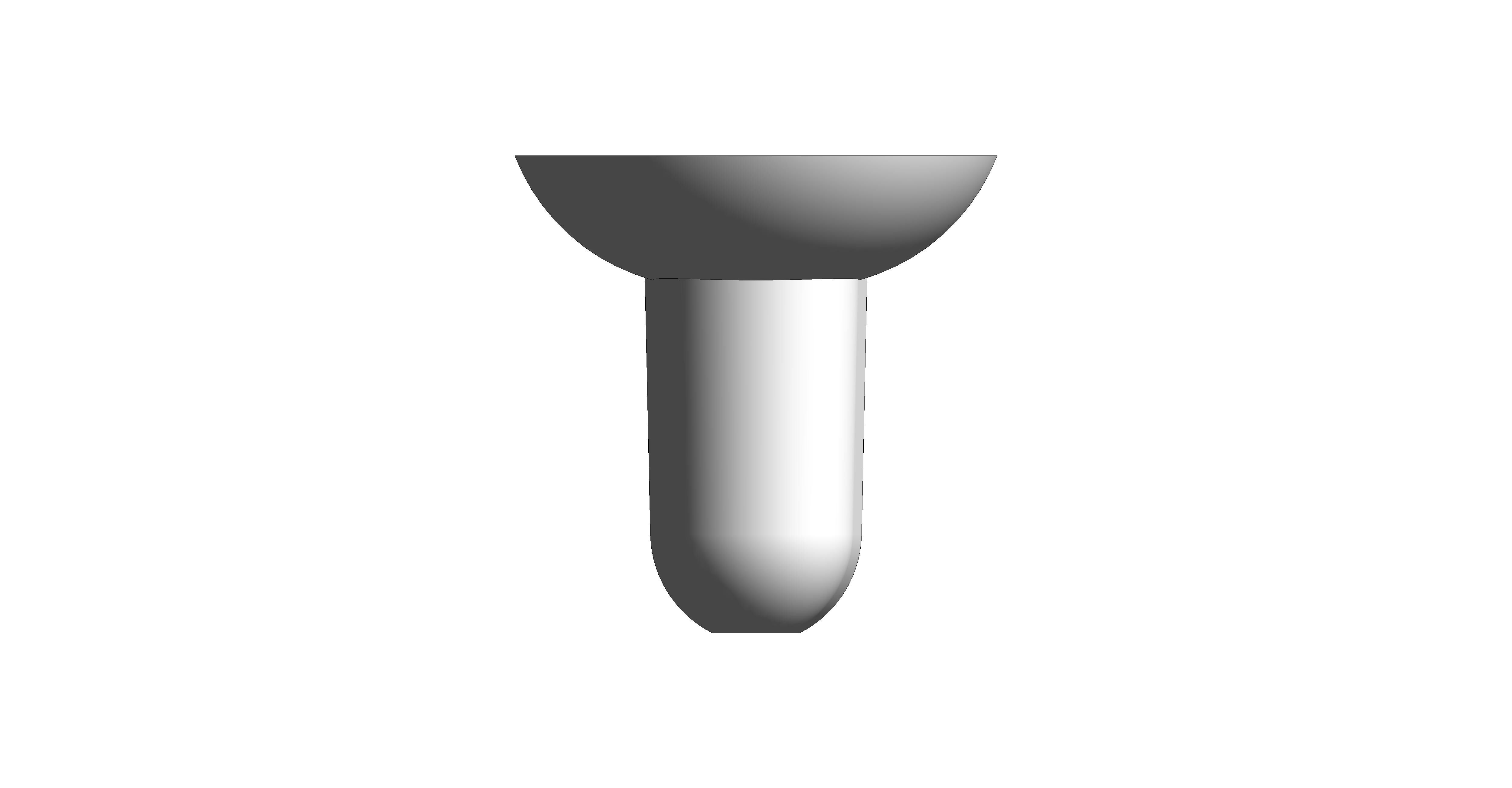

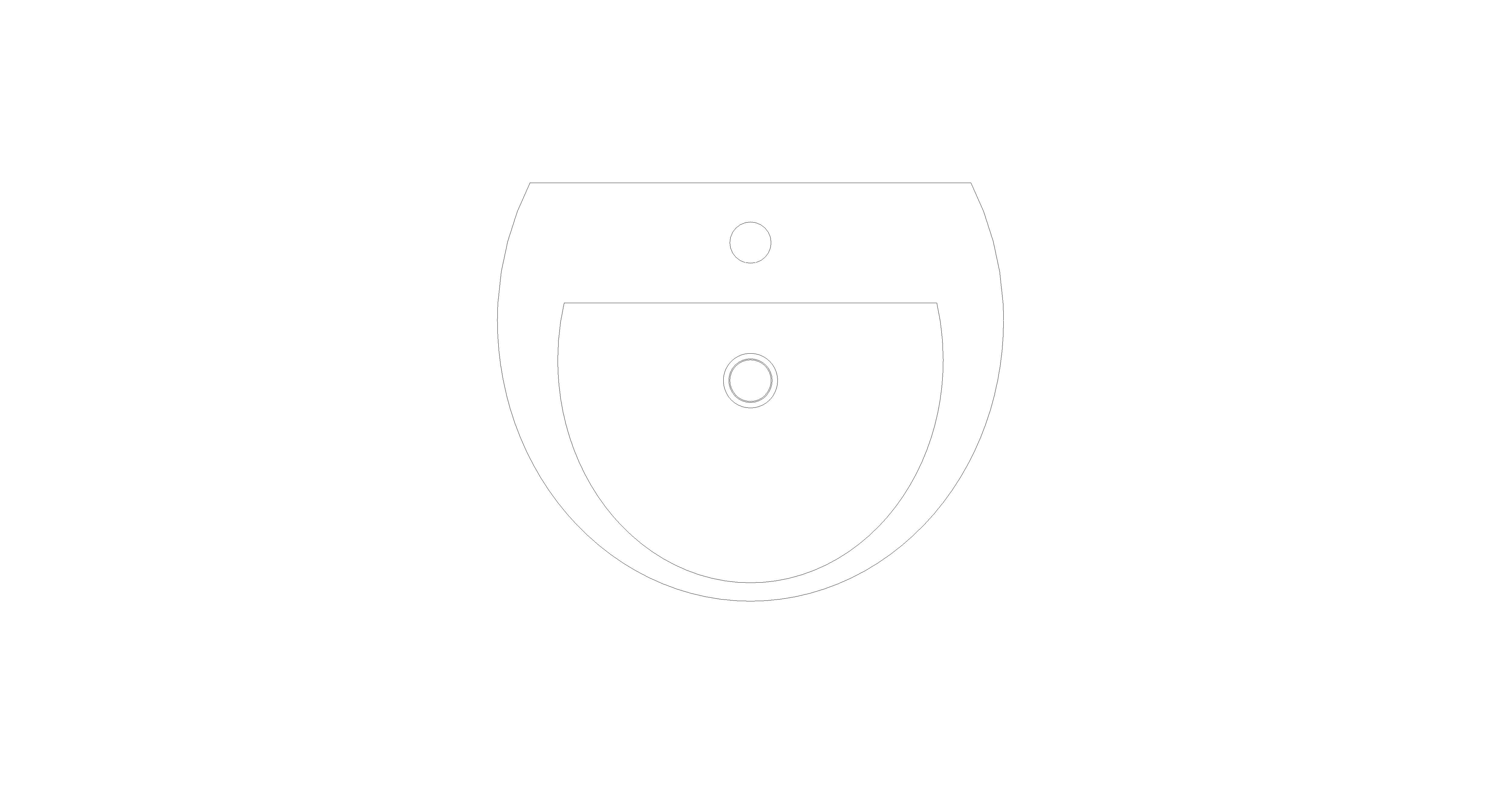

450mm Basin and Semi Pedestal

by Trade Washrooms

Download Add to collection

Description

Popular with nurseries and infant schools, this compact 450mm basin and semi pedestal has a smooth, thin design that is easy to clean with nowhere for germs and dirt to build up. Supplied with fixing bolts.

Object Data

1 Revision

Last Updated

05/11/2020

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

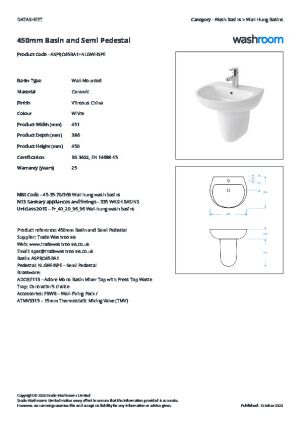

Technical Data Sheet

Product Data Sheet

Object metadata

_AuthorRyan Wigham
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.bimstore.co
_Current Revision1
_Distributed Bywww.bimstore.co
Accessibility Performancen/a
Assembly CodeD2010400
Asset TypeFixed
BIM Object NameTradeWashrooms_PlumbingFixture_Basin_450mm_SemiPedestal
CategoryPr_40_20_96_96:Wall-hung wash basins
Classification NameUniclass2015
Classification ValuePr_40_20_96_96
Code PerformanceBS 5506
ColorWhite
ConstituentsBasin, semi pedestal and wall-fixing bolts
Created Byspec@tradewashrooms.co.uk
Created On2020-02-07T09:00:00
CW ConnectionNo
CWFU0
DescriptionPopular with nurseries and infant schools, this compact 450mm basin and semi pedestal has a smooth, thin design that is easy to clean with nowhere for germs and dirt to build up.
Documentation Certificatesn/a
Documentation Installation Guiden/a
Documentation Literaturewww.tradewashrooms.co.uk/wash-basins/wall-hung-basins/450mm-basin-semi-pedestal/
Documentation Maintenancen/a
Documentation Technicalwww.tradewashrooms.co.uk/wash-basins/wall-hung-basins/450mm-basin-semi-pedestal/
Duration UnitYears
Expected Life25
FeaturesInternal overflow
FinishVitreous China
GradeBS 3402
HW ConnectionNo
HWFU0
Ifc Export AsIfcFlowTerminalType
Ifc Export TypeIfcSanitaryTerminalTypeEnum.SINK
KeynoteN13
Manufacturerspec@tradewashrooms.co.uk
Manufacturer Nameorders@tradewashrooms.co.uk
MaterialCeramic
Model450mm Basin and Semi Pedestal
Model NumberASPRO45BA1+NLGWHSPE
Model Reference450mm Basin and Semi Pedestal
Name450mm Basin and Semi Pedestal
NBS DescriptionWall-hung wash basins
NBS Object NameTrade Washrooms - Wall-hung wash basins
NBS Office Master Tagn/a
NBS Reference45-35-70/369
Nominal Depth386 mm
Nominal Height126 mm
Nominal Length451 mm
Plug MaterialTrade Washrooms - Chrome - Polished
Production Year2020
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Size451 x 386 x 450mm
Spare Partsn/a
Sustainability PerformanceEN 14688-15
Type CommentsASPRO45BA1+NLGWHSPE
Type Name450mm Basin and Semi Pedestal
URLwww.tradewashrooms.co.uk/
Vent ConnectionNo
Warranty Description25-year warranty on any manufacturing defect
Warranty Duration Labor0
Warranty Duration Parts25
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsorders@tradewashrooms.co.uk
Waste ConnectionYes
WFU0
