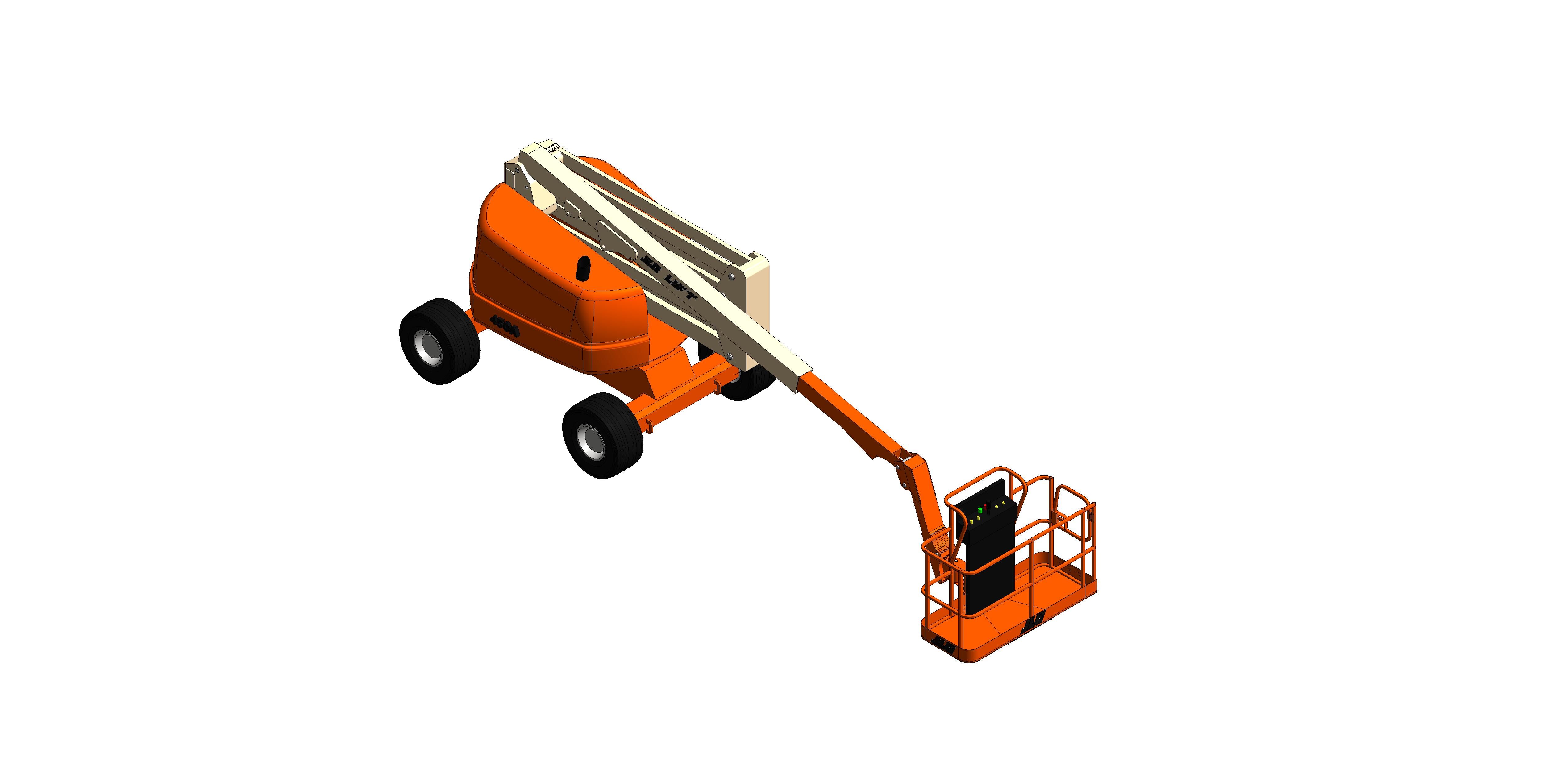

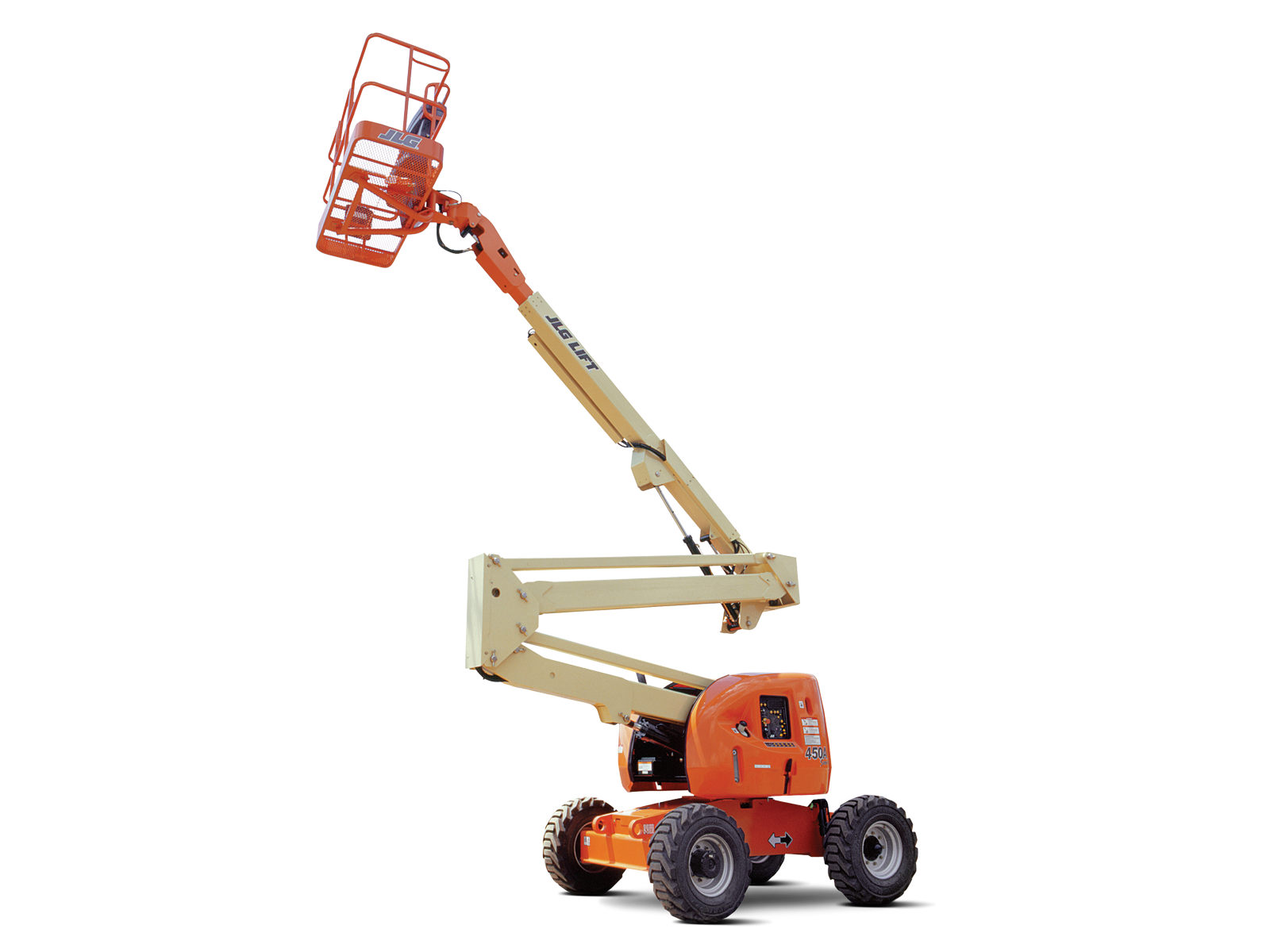

450A - Articulating Boom Lift

by JLG

Download Add to collection

Description

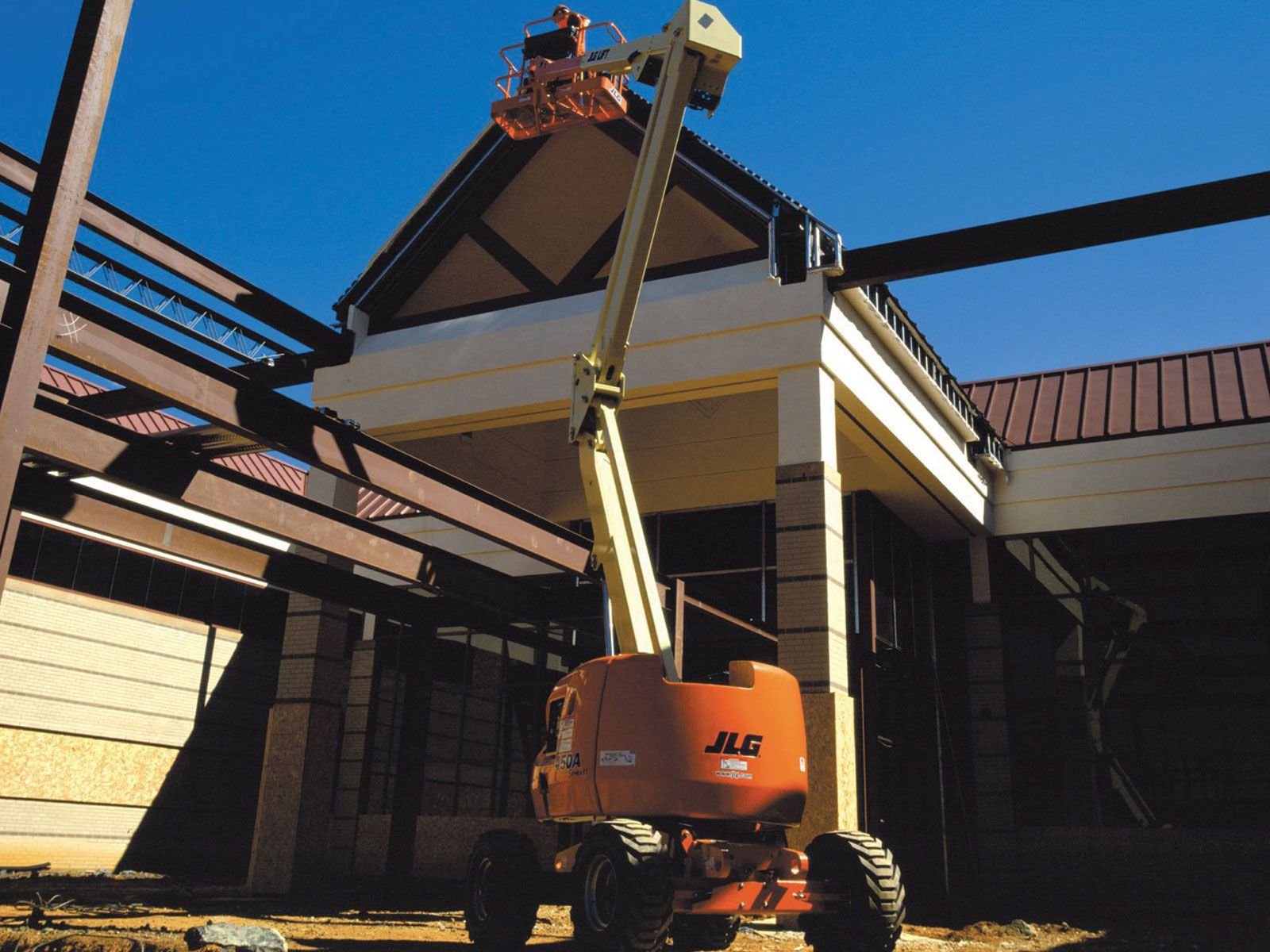

On the job site, days are measured by productivity. Your productivity. Which means you need equipment that stands up to the day’s demands. JLG® diesel powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. They offer exceptional outreach, high capacity, versatile performance and easier maintenance. Larger work envelopes provide you with access to those hard-to-reach places.

This machine may also be known as: Cherry Pickers, Platforms, Spider Lifts, Toucans, Cranes, Lifts, AWP, MEWP, IPAF 3a, 3b

Object Data

1 Revision

Last Updated

08/02/2021

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

_AuthorJLG
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version16
_Created Bywww.jlg.com/
_Current Revision1
_Distributed Bywww.bimstore.co/

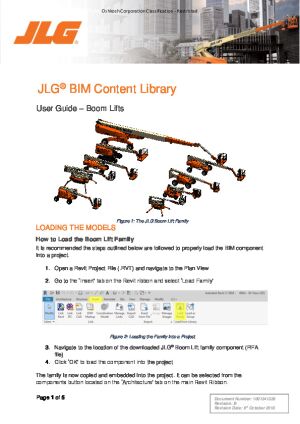

_Object User Guidewww.bimstore.co/products/450a-articulating-boom-lift/document/object-user-guide
A1a0.00 °
A1a 1180.00 °
A2a0.00 °
A2a 1180.00 °
Accessibility Performancen/a
AE2550.0 mm
A Ea10.00 °
A Ea 1170.00 °
AE Ha0.00 °
AE Ha 1180.00 °
Assembly CodeE1030100
Asset TypeMovable
Auxiliary Power12v-DC
Axle Oscillation0.10m (0 ft 4 in)
BIM Object NameJLG_Site_ArticulatingBoomLift_450A
Classification NameUniclass2015
Classification ValueTE_30_30_10_60
Code Performancen/a
Colorn/a
Constituentsn/a
Created Bywww.jlg.com/
Created On2020-12-01T09:30:00
Descriptionn/a
Diesel EngineDUAL FUEL ENGINE: GM VORTEC 3000 MPF I 82 Hp (61 KW)DIESEL ENGINE ANSI: Deutz D2.9L4, Tier 4 Final
Documentation Certificateswww.bimstore.co/products/450a-articulating-boom-lift/document/product-certificates
Documentation Installation Guidewww.bimstore.co/products/450a-articulating-boom-lift/document/installation-guide
Documentation Literaturewww.bimstore.co/products/450a-articulating-boom-lift/document/product-literature
Documentation Maintenancewww.bimstore.co/products/450a-articulating-boom-lift/document/maintenance-information
Documentation Technicalwww.bimstore.co/products/450a-articulating-boom-lift/document/technical-data-sheet
Drive Speed2WD/4WD 6.84 kph (4.25 mph)
Duration UnitYears
Expected Life0
Featuresn/a
Finishn/a
Fuel Tank Capacity61 L (16 gal)
Graden/a
Gradeability 2 WD30%
Gradeability 4 WD45%
Ground Clearance0.41m (1 ft 4 in)
Ha0.00 °
Ha 1180.00 °
Horizontal Outreach9.14 m (30 ft 0 in)
Hydraulic Platform Rotator180 degree powered platform rotator
Hydraulic Reservoir136.3 L (36 gal)
Ifc Export AsIfcTransportElement
Ifc Export TypeIfcTransportElementType
J Ha10.00 °
J Ha 1170.00 °
KeynoteX
Machine Weight ANSI7395 kg (16,300 lbs)
Machine Weight CE7395 kg (16,300 lbs)
ManufacturerJLG
Manufacturer NameJLG
MaterialSteel
Max Ground Bearing Pressure ANSI4.39 kg/cm2 (62.4 psi)
Max Ground Bearing Pressure CE4.39 kg/cm2 (62.4 psi)
ModelArticulating Boom Lift - 450A
Model NumberArticulating Boom Lift - 450A
Model ReferenceArticulating Boom Lift
NBS DescriptionLift platforms
NBS Object NameJLG - Lift platforms
NBS Office Master Tagn/a
NBS Referencen/a
Nominal Depth0.0 mm
Nominal Height0.0 mm
Nominal Length0.0 mm
P Ha0.00 °
P Ha 1180.00 °
Platform Capacity Unrestricted ANSI249 kg (550 lbs)
Platform Capacity Unrestricted CE250 kg
Platform Height13.88 m (45 ft 6 in)
Platform Side Entry30 x 72 in 0.76 m x 1.83 m
Platform Size0.76 m x 1.83 m (2 ft 6 in x 6 ft 0 in)
Production Year2020
Reach2
Referenced Standardn/a
Replacement Costn/a
Shapen/a
Sizen/a
Spare Partsn/a
Swing355 Degrees Non-Continuous
Tilt Alarm Indicator Light5 degree tilt alarm and indicator light
Turning Radius Inside2.06 m ( 6 ft 9 in)
Turning Radius Outside4.78 m ( 15 ft 8 in)
Type CommentsHeight=0.09m(0'-3") - Reach=8.33m(27'-4")
Type NameHeight=0.09m(0'-3") - Reach=8.33m(27'-4")
Tyres33/1550 x 16.5 Foam Filled
Unique Model Reference FAPL1001247248
Up And Over Height6.32 m (20 ft 9 in )
URLwww.jlg.com
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborwww.jlg.com/
Warranty Guarantor Partswww.jlg.com/
