27/200-6 Form Roof and Wall Corrugated Sheet

Description

The single layer corrugated sheet manufactured from galvanize or aluminum in 27/200 form. Applicable to roofs and exteriors. 6 pitch. Has 1000 mm net application width.

Object Data

1 Revision

Last Updated

24/10/2019

Available Software

BS1192:4

Compliant

BSB

Compliant

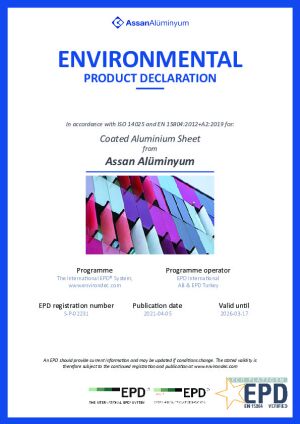

EPD

Available

Accompanying literature

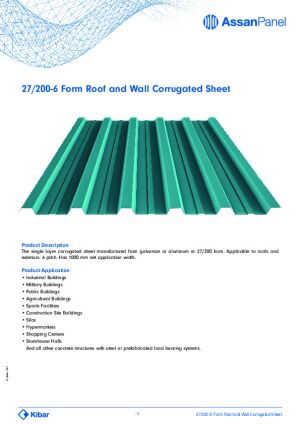

Product Literature

Product Data Sheet

Object metadata

Accessibility Performancen/a
Amount of Hot Dip Coating(EN 10327) (gr/m2)100-275 gr/m2
Analytic Construction<None>
Asset TypeFixed
BIMobject categoryInsulated panel
Classification NameUniclass2015
Classification ValuePr_20_93_85_84
Code Performancen/a
Colorn/a
Constituentsn/a
Construction Type27-200-6_Trapez
Created Bybimsupport@assanpanel.com.tr
Created On2019-10-23T09:00:00
Date of publishing001
Design countryISTANBUL
Documentation Certificateswww.assanpanel.com.tr/
Documentation Installation Guidewww.assanpanel.com.tr/
Documentation Literaturewww.assanpanel.com.tr/
Documentation Maintenancewww.assanpanel.com.tr/
Documentation Technicalwww.assanpanel.com.tr/
Duration UnitYears
Expected Life0
External ColourRAL 5010
External Metal Thickness0,5
Featuresn/a
FinishASSAN IPN
Graden/a
Hot Dip Coating Quantity(EN 10327) (gr/m2)NA
IFC ClassificationBuilding Element
Installation instructionswww.assanpanel.com.tr/en/urunler/trapezler/27-200-6-trapez
ManufacturerAssan Panel San. ve Tic. A.Ş.
Manufacturer countryTURKEY
Manufacturer nameAssan Panel San. ve Tic. A.Ş.
Manufacturer NameAssan Panel San. ve Tic. A.Ş.
Materialn/a
maximum size (m)12
Metal Sheet TypeAluminum
minimum size (m)1
Model nameASSAN_27-200-6_Trapez
Model NumberRoof and Wall Corrugadet
Model ReferenceCorrugadet Sheet
NBS Reference Code60-88-84
NBS Reference DescriptionInsulated Wall
Painted TypePlastisol
Panel orientationRoof and Wall Corrugadet
Product certificationwww.assanpanel.com.tr/en/kutuphane/sertifikalarimiz
Product data urlwww.assanpanel.com.tr/-/media/files/pdf/urunler/trapezler/en/27-200-6-trapez-paneli_en.ashx
Product familyRoof and Wall Corrugadet
Product groupCorrugadet Sheet
Production Siteİstanbul
Production Year2019
QR codewww.assanpanel.com.tr/en/urunler/trapezler/38-151-7-trapez
Ral CodeAll colors available.Please enter the desired color code @ : 7032
Referenced Standardn/a
RegionALL
Replacement Costn/a
ShapeRectangular
Sheet Quality (EN 10327)DX51 D+Z
Sizen/a
Spare Partsn/a
Technical descriptionwww.assanpanel.com.tr/en/urunler/trapezler/27-200-6-trapez
Type CommentsPrepainted Galvanized Steel Structure
Type NameRoof and Wall Corrugadet
Uniclass 2.0 CodePr_20_93_85_84
Uniclass 2.0 DescriptionStructural insulated wall panels
Uniclass 2015 CodePr_20_93_85_84
Uniclass 2015 NameStructural insulated wall panels
URLwww.assanpanel.com.tr/en/
Version numberAssan_27-200-6_Trapez_001
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
width (mm)1000
