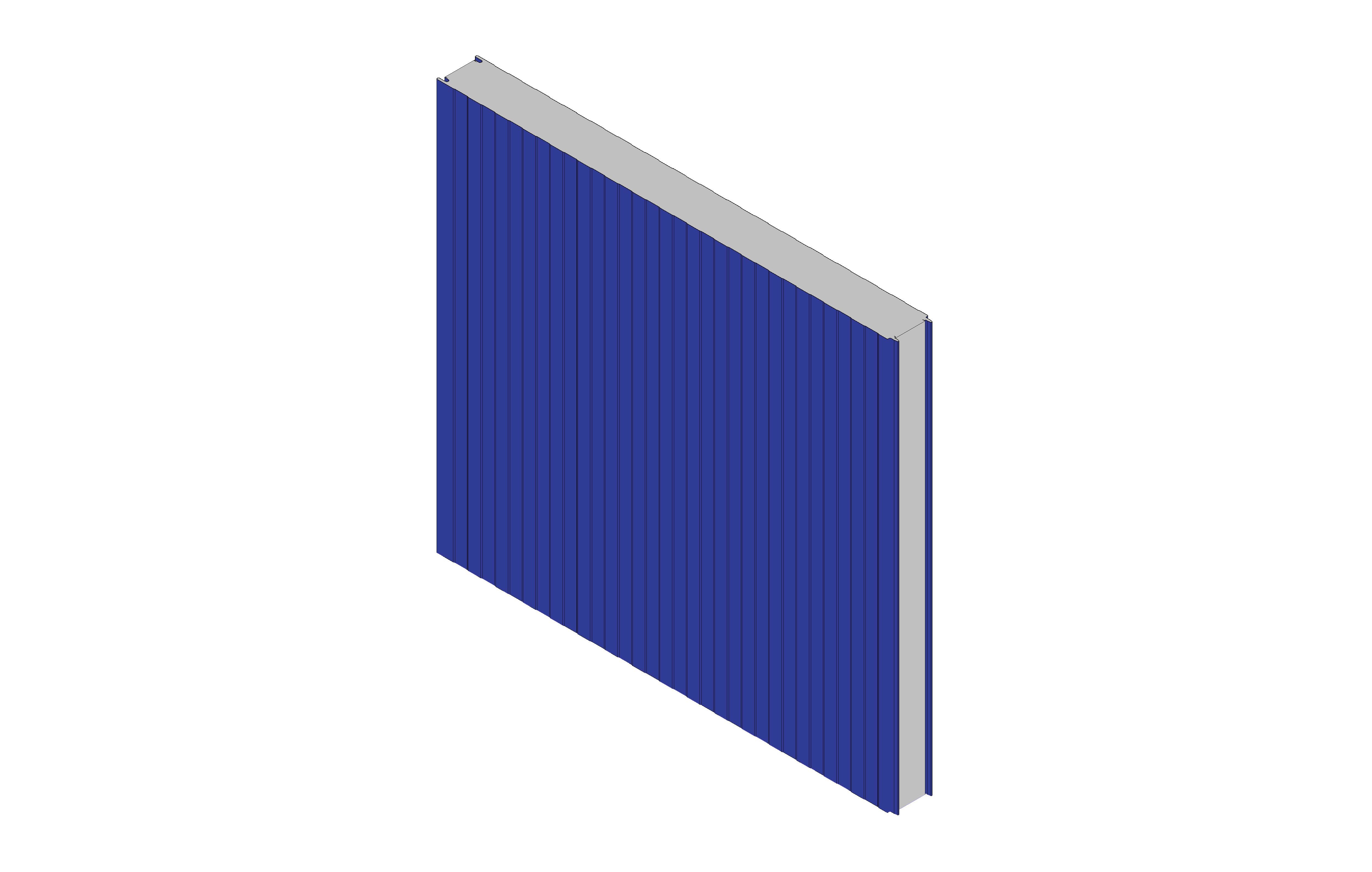

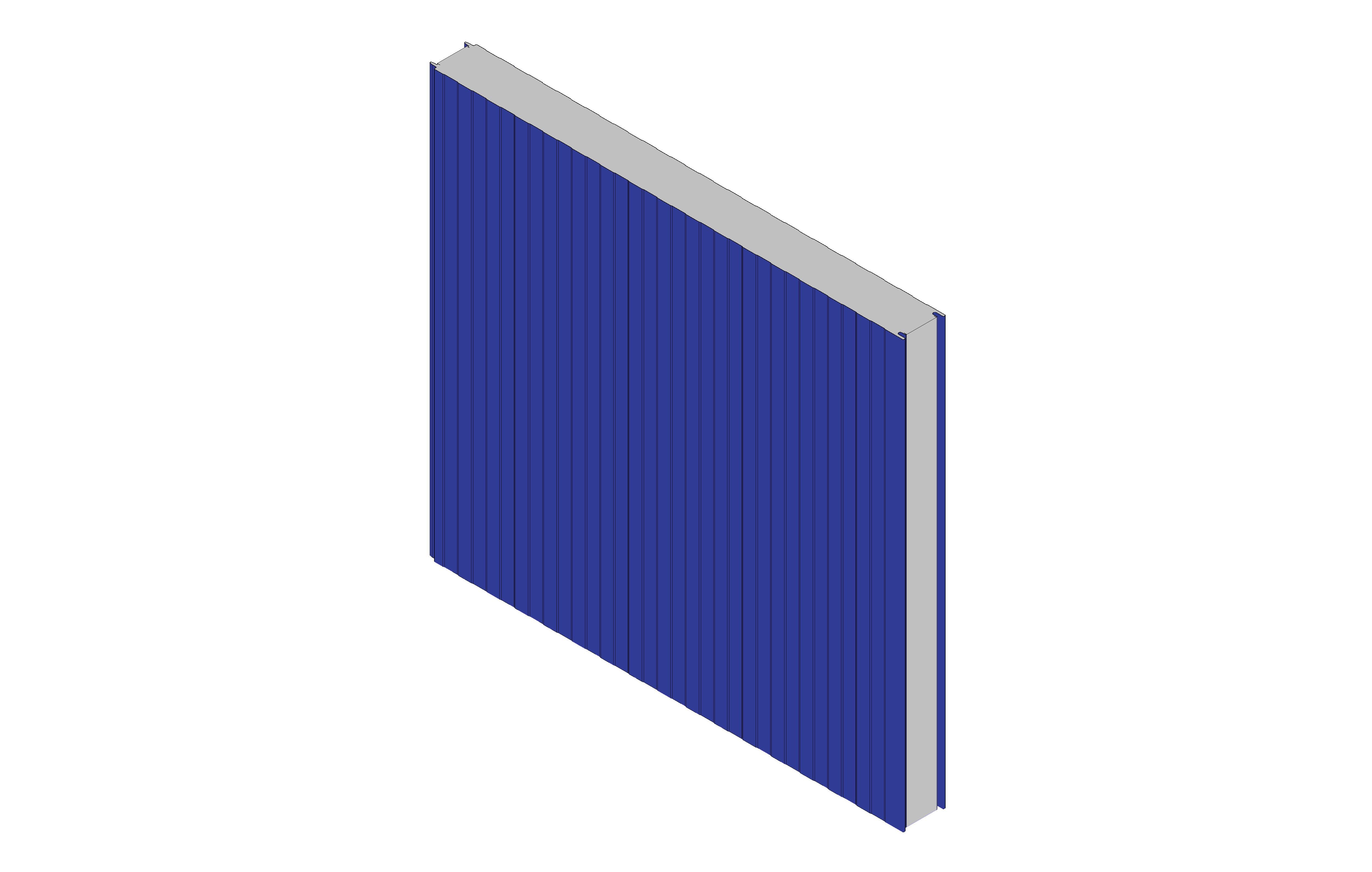

1100 CS UK Cold Store Panel

Description

Product Description

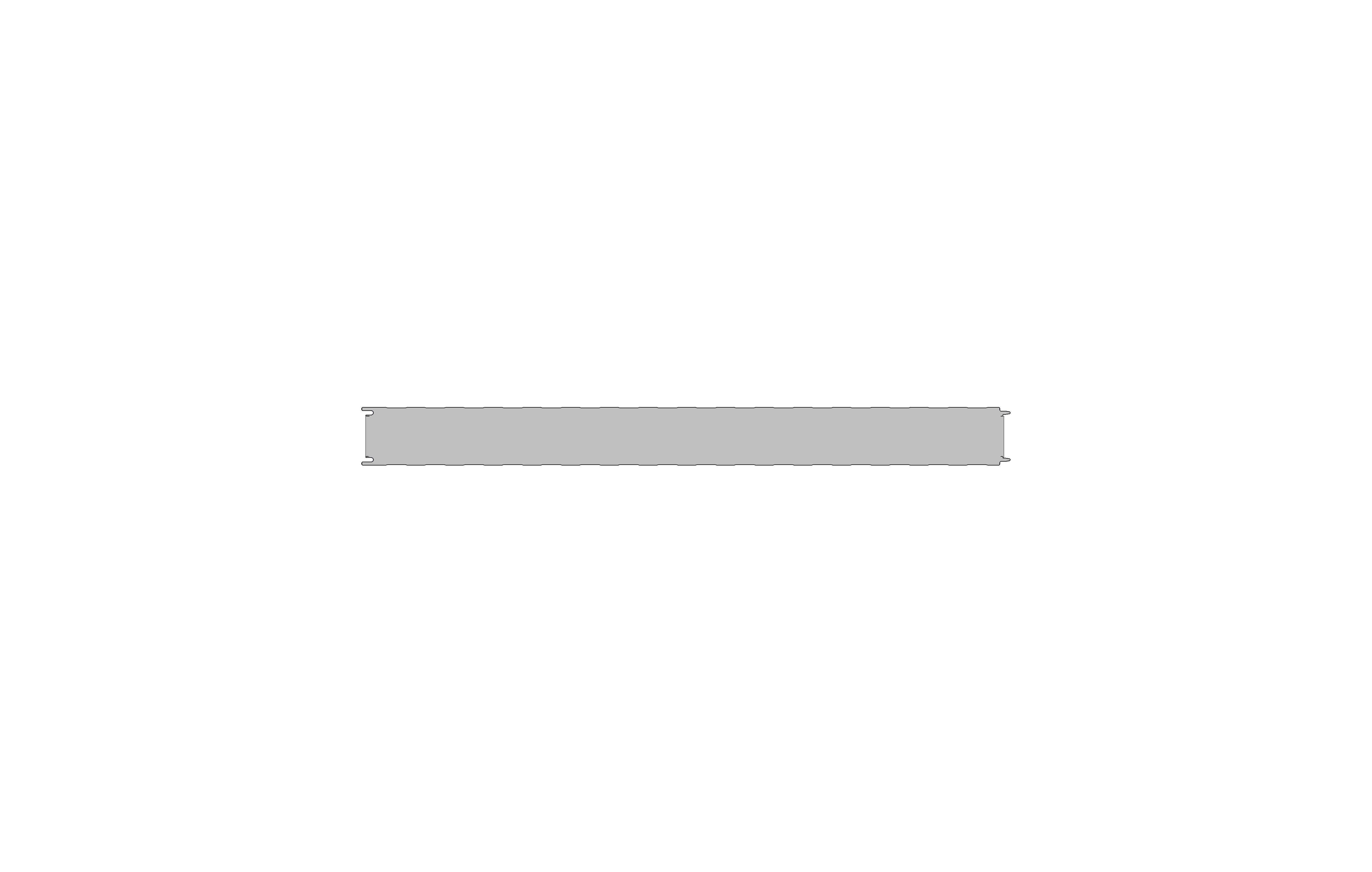

Assan Panel UK CS product can be used in cold rooms thanks to its special paint used on its surface, which provides complete protection against bacteria. It provides a strong joint with its double-sided tongue and groove cross-section, offering an advantage in thermal insulation. It can be applied to both facade and ceiling cladding of cold storage facilities.

Production Location

Product Application
•Fruit and Vegetable Facilities

•Dairy and Ice Cream Facilities

•Poultry and Seafood Processing Plants

•Slaughterhouses and Meat Processing Plants

•Cold Storage Warehouses

Object Data

1 Revision

Last Updated

12/06/2026

Available Software

BS1192:4

Compliant

BSB

Compliant

EPD

Not Available

Accompanying literature

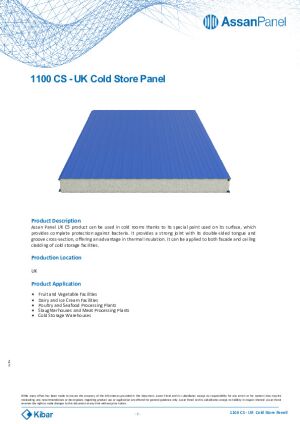

Product Literature

Product Data Sheet

Object metadata

Accessibility Performancen/a
Analytic Construction<None>
Asset TypeFixed
BIMobject categoryInsulated panel
Classification NameUniclass2015
Classification Valuen/a
Code Performancen/a
Colorn/a
Constituentsn/a
Construction Type1000_WDT
Created Bybimsupport@assanpanel.com.tr
Created On2019-10-23T09:00:00
Date of publishing001
Define Thermal Properties bySchematic Type
Design countryISTANBUL
Documentation Certificateswww.assanpanel.com.tr/
Documentation Installation Guidewww.assanpanel.com.tr/
Documentation Literaturewww.assanpanel.com.tr/
Documentation Maintenancewww.assanpanel.com.tr/
Documentation Technicalwww.assanpanel.com.tr/
Duration UnitYears
Expected Life0
External ColourRAL 5010
External Metal Thickness0,3
Featuresn/a
FinishASSAN IPN
Flammability Class (EN 13501)A1
Graden/a
Heat Transmission Coefficient λ (EN 13165) (W/Mk)0,033
Hot Dip Coating Quantity(EN 10327) (gr/m2)Z70
IFC ClassificationBuilding Element
Installation instructionswww.assanpanel.com.tr/en/urunler/sandvic-paneller/cephe-panelleri/1000-wdt
Insulation Core MaterialAssan Stonewool
Internal Metal Thickness0,3
Internal ColourRAL 6050
ManufacturerAssan Panel San. ve Tic. A.Ş.
Manufacturer countryTURKEY
Manufacturer nameAssan Panel San. ve Tic. A.Ş.
Manufacturer NameAssan Panel San. ve Tic. A.Ş.
Materialn/a
maximum size (m)Depends on shipping conditions
Metal Sheet TypeGalvanized
minimum size (m)3
Model1100-CS
Model nameASSAN_1000_WDT
Model Numbern/a
Model Reference1100-CS
NBS Reference Code60-88-84
NBS Reference DescriptionInsulated Wall
Painted TypePlastisol
Panel orientationWall- panel vertical
Product certificationwww.assanpanel.com.tr/en/kutuphane/sertifikalarimiz
Product data urlwww.assanpanel.com.tr/-/media/files/pdf/urunler/2019/09/assanpanel-1000-wdt-wall-panel-en.ashx
Product familyWall Panel
Product groupInsulated Panels
Production SiteBalıkesir
Production Year2026
QR codewww.assanpanel.com.tr/en/urunler/sandvic-paneller/cephe-panelleri/wt
Referenced Standardn/a
RegionALL
Replacement Costn/a
Rockwool Density (kg/m3)100 (±2)
Shapen/a
Sizen/a
Sound insulation Rw[Db]≥30
Spare Partsn/a
Technical descriptionwww.assanpanel.com.tr/en/urunler/sandvic-paneller/cephe-panelleri/1000-wdt
Temperature Resistance600 ºC
Thickness100 mm
Type CommentsPrepainted Galvanized Steel Structure
Type NameASSAN_1000WDT_0,5-0,4_T100
Uniclass 2.0 CodePr_20_93_85_84
Uniclass 2.0 DescriptionStructural insulated wall panels
Uniclass 2015 CodePr_20_93_85_84
Uniclass 2015 NameStructural insulated wall panels
URLwww.assanpanel.com.tr/en/
Version numberAssan_1000_WDT-001
Warranty Descriptionn/a
Warranty Duration Labor0
Warranty Duration Parts0
Warranty Duration UnitYears
Warranty Guarantor Laborn/a
Warranty Guarantor Partsn/a
Water absorption (EN ISO 354)By Volume 2%
Water Vapor Diffusion (EN 12086)1
width (mm)1000
