Kingspan KingZip IP Standing Seam System

36.2k
0
3.7 / 5
Rate this product

CEN442

Compliant

COBie

Compliant

BSB

Compliant

Object Data

3 Revision

Last Updated

16/04/2019

Download BIM

Add to collection

Available for:

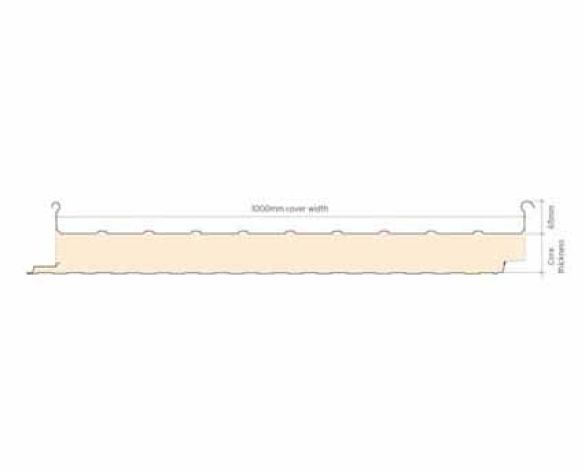

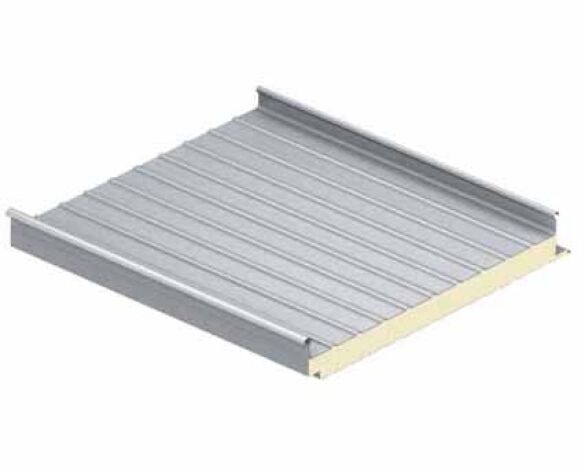

Kingspan KingZip IP Standing Seam System is a unique roof system combining Kingspan’s insulated panel technology with the aesthetics of a standing seam system. It is available in steel or aluminium, in 500mm or 1000mm widths and is suitable for use on roof pitches of 1.5º after deflection.

Downloads are available for Revit, ArchiCAD, Bentley, Vectorworks, IFC and COBie files for the 1000 (LR & RL) Kingspan KingZip IP Standing Seam Roof Panel.

Please note this download is a large file size and downloading may take a few minutes.

_AuthorKingspan Group Ltd
_Authorized Bybimstore
_Bim Spec Guid0
_BS Bible Version15
_Created Bywww.kingspanpanels.co.uk
_Current Revision2
_Distributed Bywww.bimstore.co.uk
Accessibility Performancen/a
Acoustic Rating23dB
Analytic Construction<None>
Assembly CodeB20
Asset IdentifierPlease record on commissioning
Asset TypeFixed
Bar CodePlease record on commissioning
BIM Object NameKingspanInsulatedPanels_Roof_StandingSeam_KS1000ZIP_LR
Classification NameUniclass2015
Classification ValueSs_25_20_14_52
Code Performancen/a
Coloraz750602.vo.msecnd.net/netxstoreviews/assetOriginal/52789_Kingspan_External_Colour_&_Coating_Brochure_082017_UK_EN.pdf
CombustibleNo
CompartmentationNo
Constituentsn/a
Continuity Thermal InsulationJunctions between the roof panel system and walls / penetrations insulated with PIR board insulation any gaps filled with Premseal (01724 864100) Firefoam (class B1 rated) or similar, fire rated gun applied canister urethane insulation
Core InsulationEcosafe Polyisocyanurate (PIR)
Core Insulation Depth110 mm
Cover Width1000
Created Bytechnical@kingspanpanels.com
Created On01-12-2018T09:00:00
Curvaturen/a
DescriptionThe KS500/1000 ZIP IP is a unique insulated standing seam roof panel, which gives a secret-fix appearance unrivalled in the composite panel market. The panel can be used on roofs with pitches of 1.5° or more after deflection.
Documentation Certificateswww.kingspan.com/gb/en-gb/products/insulated-panel-systems/downloads/kingspan-kingzip-ip-product-data-sheet
Documentation Installation Guidehttps:/www.kingspan.com/gb/en-gb/products/insulated-panel-systems/downloads/kingspan-kingzip-ip-installation-guide
Documentation Literaturewww.kingspan.com/gb/en-gb/products/insulated-panel-systems/roof-panel-systems/kingzip-ip-en
Documentation Maintenancen/a
Documentation Technicaltechnical@kingspanpanels.com
Duration UnitYears
End And Side LapsEnd lap = 200mm, Eaves = 100mm
Expected Life0
Extend To StructureNo
FeaturesRoof pitches down to 1.5degrees
Finishwww.kingspan.com/gb/en-gb/products/insulated-panel-systems/downloads/kingspan-external-coating-brochure
Finish Inner SkinCleanSafe 15
Fire RatingLPCB - LPS 1181 EXT B
GradeLPCB Approved
Gross Area0.00 m²
Gross Volume0.00 m³
Ifc Export AsIfcCovering
Ifc Export TypeIfcCoveringTypeEnum.CLADDING
Installation DatePlease record on commissioning
Integral AccessoriesExternal/Internal Cold formed flashings and butt straps, Butyl strip mastics, Gun grade sealant, Main fixings, Stitcher screws, Halters Fire rated canister insulation, LPCB PIR Insulation board/mineral fibre insulation, Profiled fillers
Internal Skin ColourWhite
Internal Skin FinishCleanSafe 15
Internal Skin MaterialSteel
Internal Skin ProfileStandard
Internal Skin Thickness0 mm
Is ExternalYes
Joint Type End Or HorizontalEnd lap overlap profile
Joint Type Side Or VerticalSide lap overlap profile
KeynoteH43
Load BearingNo
Manufacturertechnical@kingspanpanels.com
Manufacturer NameKingspan Group Ltd
MaterialSteel
Method Of MeasurementSquare meters
ModelKS1000 ZIP IP
Model LabelKS1000 ZIP IP
Model NumberKS1000 ZIP IP 110mm
Model ReferenceKS1000 ZIP IP Roof
NBS DescriptionMetal composite panel cladding system
NBS Object NameKingspan - Metal composite panel cladding system
NBS Office Master Tagn/a
NBS Reference25-80-52/150
Net Area0.00 m²
Net Volume0.00 m³
Nominal Depth0 mm
Nominal Height0 mm
Nominal Length0 mm
Outer Skin Colouraz750602.vo.msecnd.net/netxstoreviews/assetOriginal/52789_Kingspan_External_Colour_&_Coating_Brochure_082017_UK_EN.pdf
Outer Skin Finishaz750602.vo.msecnd.net/netxstoreviews/assetOriginal/52789_Kingspan_External_Colour_&_Coating_Brochure_082017_UK_EN.pdf
Outer Skin MaterialAluminium
Outer Skin ProfileStanding seam
Outer Skin Thickness0.9
Panel ApplicationRoof
Panel FastenersCarbon / Stainless steel screws and non ferrous washers
Panel GradeLPS 1181 Ext B
Panel Length0 mm
PanelsKS1000 ZIP IP
Panel TypeComposite
Panel Width1000 mm
Perimeter0 mm
ProcessReplacement at service life intervals
Production Year2018
Reference?
Referenced StandardBS EN 14676
Replacement Costn/a
Samples Requiredsamples@kingspanpanels.com
Serial NumberPlease record on commissioning
Service Life Duration40
ShapeStanding seam
Size1000mm Wide x From 1.8m up to 26m
Spare Partsn/a
Special FeaturesRobust; Replacable
Surface Spread Of FlameClass 0
Sustainability PerformanceGreen Guide A+ rating as per the BRE Global The Green Guide To Specification, Green Guide 2008 ratings
Tapern/a
Thermal Tranmittance0.2
Type CommentsKS1000 ZIP IP 110mm
Type NameKS1000 ZIP IP 110mm
URLwww.kingspanpanels.co.uk
Warranty DescriptionKingspan guarantees the coating, structural, durability and thermal performance of a product.
Warranty Duration Labor0
Warranty Duration Parts25
Warranty Duration Unityears
Warranty Guarantor Laborn/a
Warranty Guarantor Partstechnical@kingspanpanels.com
Warranty Start DatePlease record on commissioning
